Pandaroot Development inside Docker Container

TL;DR

Onboarding is now faster than ever:

  • Run rklasen/cvmfs container

  • Clone Pandaroot

  • Open Repo in VSCode

  • Switch to DevContainer

And voila, VSCode behaves as if it’s being run inside the container (because it is). You can immedidiately start to compile and run PandaRoot, no further packet installation needed.

Why?

  • Batteries Included (environment is ready out of the box)

  • Ships with recommended extensions

  • User can still add their favorite extensions

  • Less compile time (if pre-built external packages from GSI and FairRoot are used)

  • Consistent dev environment (host packages, updates or distro don’t interfere with container image)

How?

Most of the info is taken directly from the official docs.

How it's done

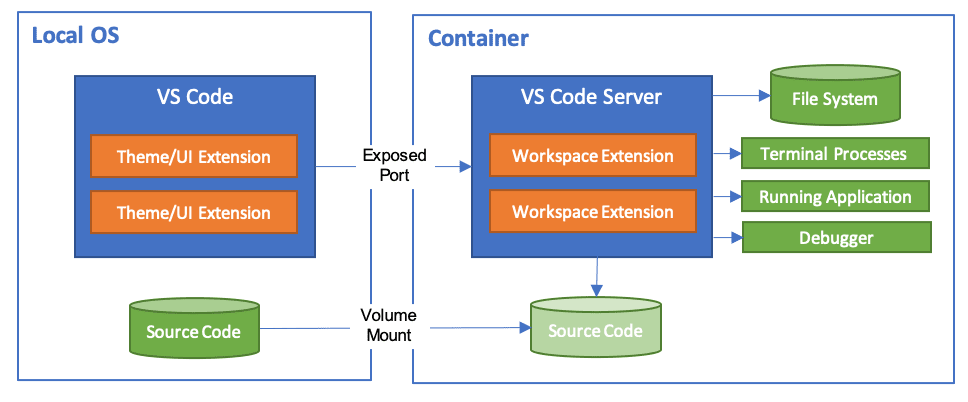

Basically it goes like this:

  • VSCode builds or pulls docker image

  • VSCode runs and mounts definitions from .devcontainer file

  • VSCode attaches to container

  • VSCode installs VSCode Server inside container, and installs extensions from definitions file

  • VCSCode attaches to Server inside container

Detailed Steps

Run the cvmfs container:

docker run rklasen/cvmfs

Clone PandaRoot somewhere and open the repo in VSCode.

Remote Containers

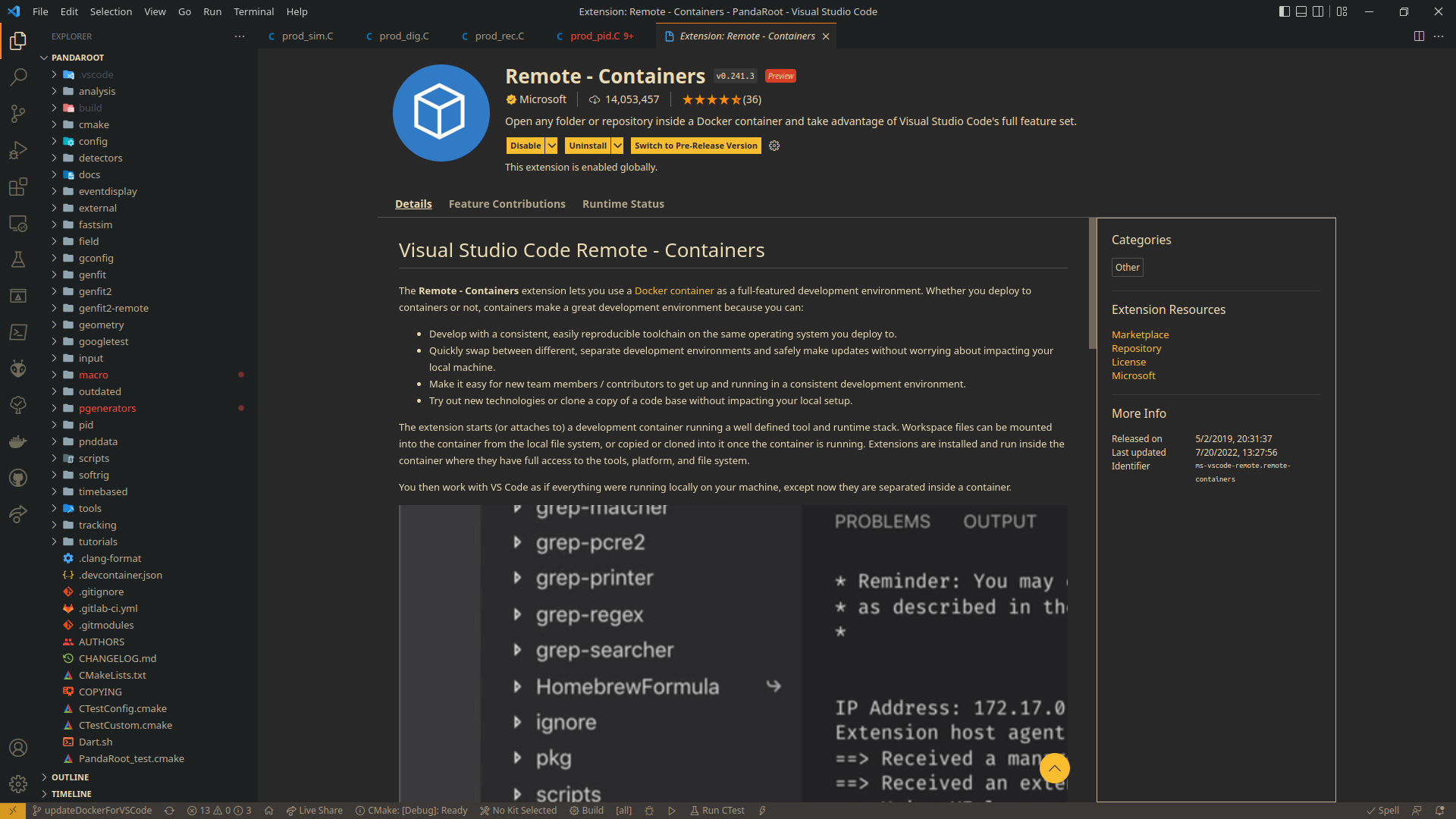

Install the extension “Remote Containers”:

Containers Extension

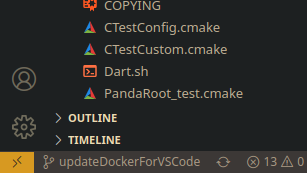

Click the remote containers option in the lower left corner (the yellow arrow thingies):

Click Me

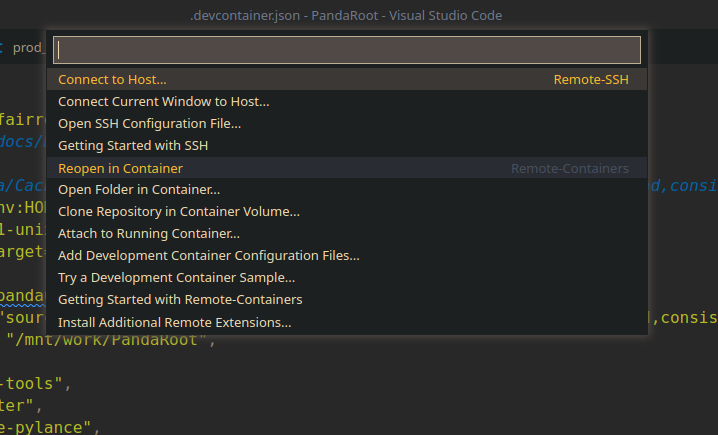

Select “reopen in container”:

Reopen

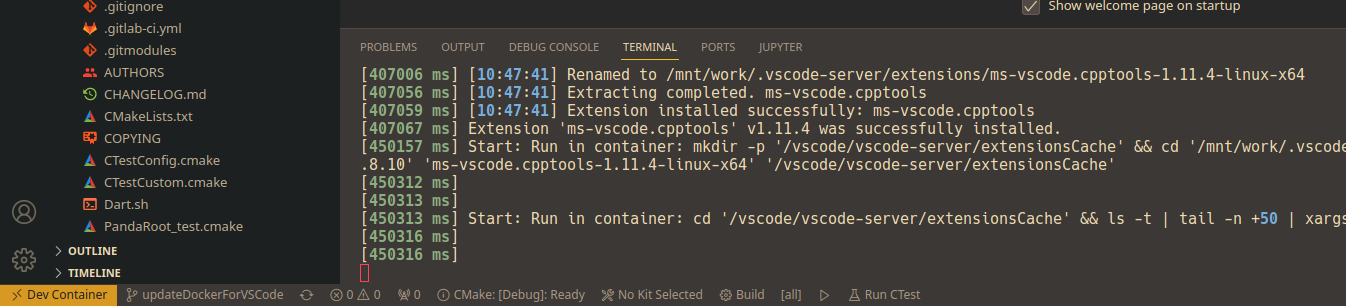

This can take up to five minutes the first time this is done. Don’t worry, it will be faster the next time. The icon in the lower left should have changed:

Ready

Make

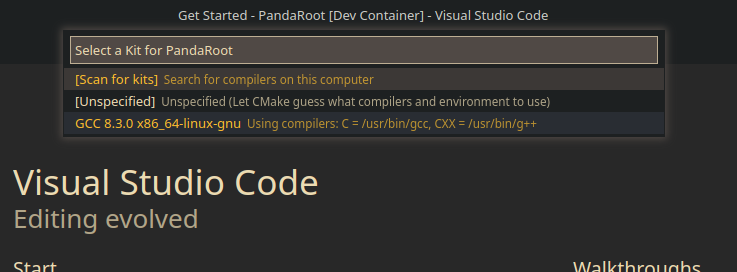

Select the dev kit. Since we’re now in a purpose-built container, only one is available:

Kit

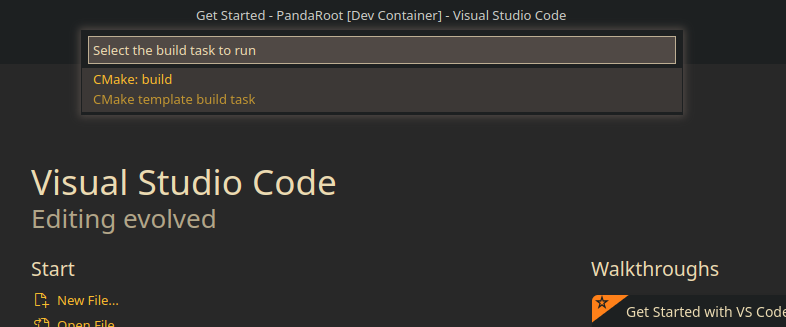

After hitting <ctrl> + <b> for building, we’re given the choice to select CMake:

cmake

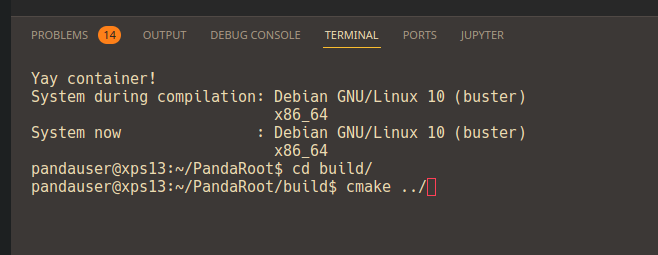

However, configuring fails the first time because CMake doesn’t yet know where to configure. We can help it by running the built manually once. Open the integrated terminal with <ctrl> + <shift> + <`>, go to cd build and cmake ../:

CMake

Extensions

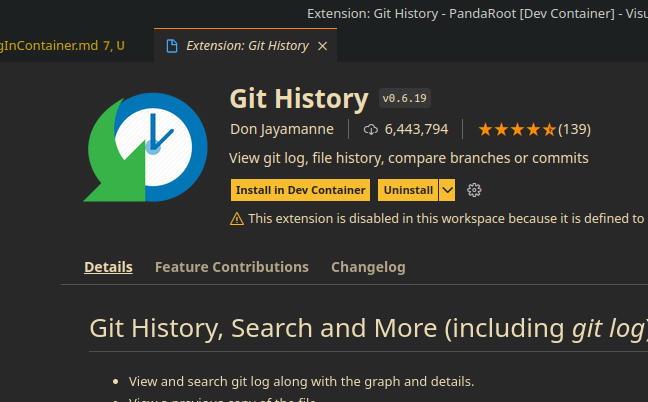

If you’re missing your favorite extension, you can install it in the container per userspace:

Extensions are nice

If you think an extension should be added to the default install, add it to the .devcontainer file (and submit a MR of course).

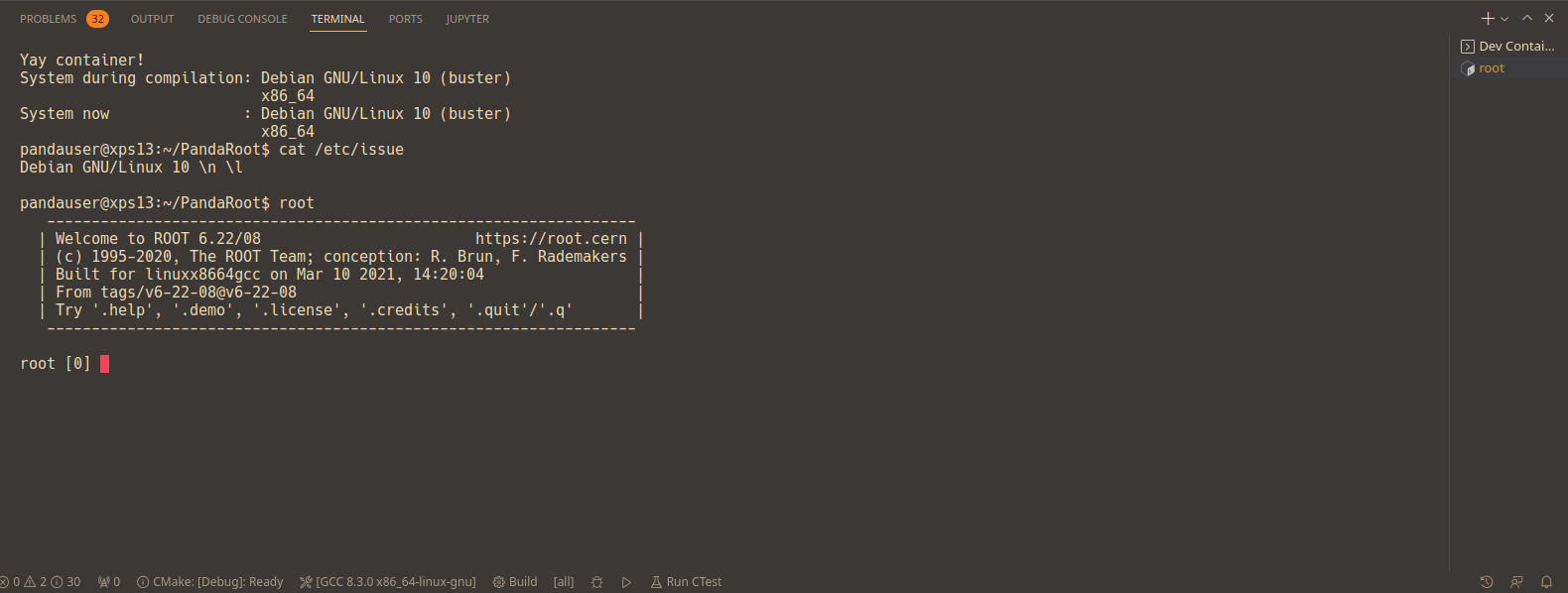

And bask in glorious ROOTness:

I AM ROOT

Drawbacks

So SSH Access from Container

Your .ssh/* isn’t mounted by default, so you can’t access the Gitlab (yet).
