BSEmcAbsPSA Class Reference

Baseclass for pulseshapeanalysis ( featureextraction ) More...

#include <BSEmcAbsPSA.h>

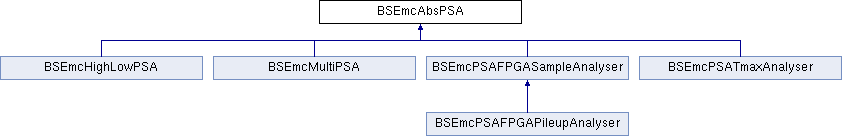

Inheritance diagram for BSEmcAbsPSA:

Public Member Functions
	BSEmcAbsPSA ()
virtual	~BSEmcAbsPSA ()
virtual Int_t	Process (const BSEmcWaveform *t_waveform)=0
	Find Hits in Waveform. More...
virtual void	Reset ()
	reset found hits More...
virtual void	GetHit (Int_t t_i, Double_t &t_energy, Double_t &t_time)=0
	Get energy and time of hit. More...
virtual void	Process (const BSEmcWaveform *t_waveform, Double_t &t_amplitude, Double_t &t_time)
	Deprecated. Do not use. More...
	ClassDef (BSEmcAbsPSA, 1)

Detailed Description

Baseclass for pulseshapeanalysis ( featureextraction )

Author

Dima Melnychuk

Definition at line 26 of file BSEmcAbsPSA.h.

Constructor & Destructor Documentation

BSEmcAbsPSA()

BSEmcAbsPSA::BSEmcAbsPSA ( )

inline

Definition at line 28 of file BSEmcAbsPSA.h.

{};

~BSEmcAbsPSA()

virtual BSEmcAbsPSA::~BSEmcAbsPSA ( )

inlinevirtual

Definition at line 29 of file BSEmcAbsPSA.h.

References Process().

{ ; };

Member Function Documentation

ClassDef()

BSEmcAbsPSA::ClassDef	(	BSEmcAbsPSA	,
		1
	)

Referenced by BSEmcMultiPSA::GetAPDGainIndex(), Reset(), and BSEmcHighLowPSA::SetVerbose().

GetHit()

virtual void BSEmcAbsPSA::GetHit ( Int_t  t_i, Double_t &  t_energy, Double_t &  t_time  )

pure virtual

Get energy and time of hit.

Parameters

Int_t	Index of Hit
Double_t	Energy of Hit
Double_t	Time of Hit

Returns

Implemented in BSEmcPSAFPGASampleAnalyser, BSEmcHighLowPSA, BSEmcMultiPSA, BSEmcPSAFPGAPileupAnalyser, and BSEmcPSATmaxAnalyser.

Referenced by BSEmcExtractDigisFromWaveforms< BSEmcFwEndcapDigiPar >::Exec(), and Reset().

Process() [1/2]

virtual Int_t BSEmcAbsPSA::Process ( const BSEmcWaveform *  t_waveform )

pure virtual

Find Hits in Waveform.

Parameters

BSEmcWaveform

Returns

Return number of hits, negative if an error occurred

Implemented in BSEmcPSAFPGASampleAnalyser, BSEmcHighLowPSA, BSEmcMultiPSA, and BSEmcPSATmaxAnalyser.

Referenced by BSEmcExtractDigisFromWaveforms< BSEmcFwEndcapDigiPar >::Exec(), Reset(), and ~BSEmcAbsPSA().

Process() [2/2]

virtual void BSEmcAbsPSA::Process ( const BSEmcWaveform *  t_waveform, Double_t &  t_amplitude, Double_t &  t_time  )

virtual

Deprecated. Do not use.

Parameters

BSEmcWaveform
Double_t
Double_t

Returns

Reset()

virtual void BSEmcAbsPSA::Reset ( )

inlinevirtual

reset found hits

Returns

Reimplemented in BSEmcPSAFPGASampleAnalyser, BSEmcHighLowPSA, BSEmcMultiPSA, and BSEmcPSATmaxAnalyser.

Definition at line 46 of file BSEmcAbsPSA.h.

References ClassDef(), GetHit(), and Process().

{};

---

The documentation for this class was generated from the following file:

• BSEmcAbsPSA.h
