Process to create BSEmcMCHits out of BSEmcMCPoints. More...

#include <BSEmcMCHitProductionProcess.h>

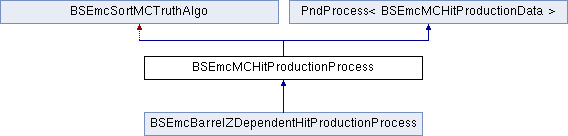

Inheritance diagram for BSEmcMCHitProductionProcess:

Public Member Functions
	BSEmcMCHitProductionProcess ()

virtual	~BSEmcMCHitProductionProcess ()

virtual void	SetData (BSEmcMCHitProductionData *t_pdata)
	Pass the data container ptrs to the process, and store pointers in class members. More...

virtual void	SetupParameters (const PndParameterRegister *t_parameter)
	Fetch all parameters from the PndParameterRegister. More...

virtual void	SetDetectorName (const std::string &t_detectorname)
	Set the Detector name. Important, as most EmcParameter need to know for which detector they need to be fetched (each Emc Subdetector has its own set of parameters) More...

virtual void	Process ()
	The actual data transformation (digitizing, clustering, etc.) should be defined here. More...

void	SetHitParName (const std::string &t_parName)

void	SetPositionParName (const std::string &t_parName)

void	SetVolume (BSEmcVolume *t_volume)

Public Member Functions inherited from PndProcess< BSEmcMCHitProductionData >
	PndProcess ()

	PndProcess (const std::string &t_processname)

virtual	~PndProcess ()

const std::vector< std::string > &	GetListOfRequiredParameters () const
	Get the List Of Required Parameters. More...

virtual void	PreProcess ()
	PreProcess() is called before the actual Process() call in each event. More...

virtual void	PostProcess ()
	Immediately after calling Process() PostProcess() is called for cleanup of internal process data, or if not needed, to end the time and memory increase measurement started by PreProcess() More...

virtual void	TearDown ()
	Last actions at the end of the run. More...

Protected Member Functions
	ClassDef (BSEmcMCHitProductionProcess, 1)

Protected Attributes
std::string	fHitParName {""}

std::string	fPositionParName {""}

PndInputContainerI< PndMCTrack > *	fMCTrackArray {nullptr}

PndOutputContainerI< BSEmcMCPoint > *	fPointArray {nullptr}

PndOutputContainerI< BSEmcMCHit > *	fHitArray {nullptr}

Double_t	fEnergyThreshold {-1}

Double_t	fCutMotherParticle {-1}

Double_t	fCutSameTrack {-1}

BSEmcCrystalPositionPar *	fPositionPar {nullptr}

BSEmcVolume *	fBoundaryVolume {nullptr}

std::map< Int_t, Float_t >	fTrackEnergy {}

std::map< Int_t, Float_t >	fTrackTime {}

std::map< Int_t, std::vector< Int_t > >	fTrackMcTruth {}

std::map< Int_t, std::vector< Int_t > >	fPointMatch {}

std::map< Int_t, FairMultiLinkedData >	fTrackEntering {}

std::map< Int_t, FairMultiLinkedData >	fTrackExiting {}

std::map< Int_t, const BSEmcMCPoint * >	fLastPointForTrack {}

std::map< Int_t, std::map< Int_t, Double_t > >	fShower {}

Protected Attributes inherited from PndProcess< BSEmcMCHitProductionData >
std::vector< std::string >	fParameterList
	Parameter names required by this PndProcess. Needs to be populated in derived class. More...

std::string	fDetectorName
	Set Detector name this PndProcess transforms data for. Required for example by EMC Processes to fetch right parameters. More...

std::string	fProcessName
	Name of current PndProcess (for debugging) More...

TStopwatch	fTimer
	Timer to monitor Process() time. More...

Double_t	fTotalTime
	Time taken by this Process' Process() More...

ProcInfo_t	fProcInfo
	Helper to access cpu process Memory Info. More...

Long_t	fLastMemSize

Detailed Description

Process to create BSEmcMCHits out of BSEmcMCPoints.

Based on PndEmcHitProducer. Sums up all BSEmcMCPoints of a crystals are summed up and stored as BSEmcMCHit Additionally Tobias Stockmanns implemented algorithm to determine energy contributions from different entering tracks

Author: S.Spataro; Tobias Stockmanns; Ben Salisbury salis.nosp@m.bury.nosp@m.@hisk.nosp@m.p.un.nosp@m.i-bon.nosp@m.n.de, HISKP Bonn

Date: 2021-01

Definition at line 95 of file BSEmcMCHitProductionProcess.h.

Constructor & Destructor Documentation

◆ BSEmcMCHitProductionProcess()

BSEmcMCHitProductionProcess::BSEmcMCHitProductionProcess ( )

◆ ~BSEmcMCHitProductionProcess()

virtual BSEmcMCHitProductionProcess::~BSEmcMCHitProductionProcess ( )

virtual

Member Function Documentation

◆ ClassDef()

BSEmcMCHitProductionProcess::ClassDef	(	BSEmcMCHitProductionProcess	,
		1
	)

protected

◆ Process()

virtual void BSEmcMCHitProductionProcess::Process ( )

virtual

The actual data transformation (digitizing, clustering, etc.) should be defined here.

Implements PndProcess< BSEmcMCHitProductionData >.

◆ SetData()

virtual void BSEmcMCHitProductionProcess::SetData ( BSEmcMCHitProductionData * t_data )

virtual

Pass the data container ptrs to the process, and store pointers in class members.

Parameters

t_data

Implements PndProcess< BSEmcMCHitProductionData >.

◆ SetDetectorName()

virtual void BSEmcMCHitProductionProcess::SetDetectorName ( const std::string & t_detectorname )

virtual

Set the Detector name. Important, as most EmcParameter need to know for which detector they need to be fetched (each Emc Subdetector has its own set of parameters)

Parameters

t_detectorname

Reimplemented from PndProcess< BSEmcMCHitProductionData >.
