Base class Process to create waveforms out of BSEmcMCHits. More...

#include <BSEmcWaveformGenerationProcess.h>

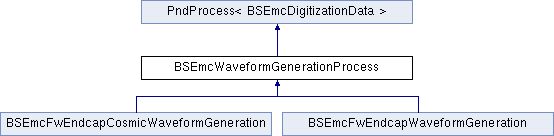

Inheritance diagram for BSEmcWaveformGenerationProcess:

Public Member Functions
	BSEmcWaveformGenerationProcess (BSEmcAbsWaveformSimulator *t_simulator=nullptr, Bool_t t_storewaves=kTRUE, Bool_t t_storeData=kTRUE, Bool_t t_timebased=kFALSE)

virtual	~BSEmcWaveformGenerationProcess ()

virtual void	SetDetectorName (const std::string &t_detectorName)
	Set the Detector name. Important, as most EmcParameter need to know for which detector they need to be fetched (each Emc Subdetector has its own set of parameters) More...

virtual void	SetData (BSEmcDigitizationData *t_data)
	Pass the data container ptrs to the process, and store pointers in class members. More...

virtual void	SetupParameters (const PndParameterRegister *t_parameterRegister)
	Fetch all parameters from the PndParameterRegister. More...

virtual void	Process ()
	The actual data transformation (digitizing, clustering, etc.) should be defined here. More...

void	RunTimebased (Bool_t t_timebased=kTRUE)

void	SetStorageOfData (Bool_t t_storeWaves=kTRUE)

void	StoreDataClass (Bool_t t_storeData=kTRUE)

void	SetWaveformBranchName (const TString &t_branchName)

void	SetWaveformDataBranchName (const TString &t_branchName)

void	SetPhotonStatisticParName (const std::string &t_photonStatParName)

Public Member Functions inherited from PndProcess< BSEmcDigitizationData >
	PndProcess ()

	PndProcess (const std::string &t_processname)

virtual	~PndProcess ()

const std::vector< std::string > &	GetListOfRequiredParameters () const
	Get the List Of Required Parameters. More...

virtual void	PreProcess ()
	PreProcess() is called before the actual Process() call in each event. More...

virtual void	PostProcess ()
	Immediately after calling Process() PostProcess() is called for cleanup of internal process data, or if not needed, to end the time and memory increase measurement started by PreProcess() More...

virtual void	TearDown ()
	Last actions at the end of the run. More...

Protected Member Functions
void	SetSimulator (BSEmcAbsWaveformSimulator *t_simulator)

	ClassDef (BSEmcWaveformGenerationProcess, 2)

Protected Attributes
TString	fHitBranchName {""}

TString	fWaveformBranchName {""}

TString	fWaveformDataBranchName {""}

PndInputContainerI< BSEmcMCHit > *	fHitArray {nullptr}

BSEmcWaveformBuffer *	fWaveformBuffer {nullptr}

BSEmcAbsWaveformSimulator *	fSimulator {nullptr}

Bool_t	fStoreWaves {kFALSE}

Bool_t	fStoreDataClass {kFALSE}

Bool_t	fActivateBuffering {kFALSE}

std::string	fPhotonStatisticParName {""}

BSEmcDigiPar *	fPhotonStatisticPar {nullptr}

Bool_t	fUse_photon_statistic {kFALSE}

Double_t	fNPhotoElectronsPerMeV {0}

Double_t	fExcessNoiseFactor {0}

Double_t	fOverlapTime {0}

Protected Attributes inherited from PndProcess< BSEmcDigitizationData >
std::vector< std::string >	fParameterList
	Parameter names required by this PndProcess. Needs to be populated in derived class. More...

std::string	fDetectorName
	Set Detector name this PndProcess transforms data for. Required for example by EMC Processes to fetch right parameters. More...

std::string	fProcessName
	Name of current PndProcess (for debugging) More...

TStopwatch	fTimer
	Timer to monitor Process() time. More...

Double_t	fTotalTime
	Time taken by this Process' Process() More...

ProcInfo_t	fProcInfo
	Helper to access cpu process Memory Info. More...

Long_t	fLastMemSize

Detailed Description

Base class Process to create waveforms out of BSEmcMCHits.

This is a base class for emc detector specific waveform generation processes. Derived processes need to implement and set the BSEmcAbsWaveformSimulator. The BSEmcAbsWaveformSimulator should actually be a BSEmcMultiWaveformSimulator

Author: Phil Strother Original author; Dima Melnichuk - adaption for PANDA; Philipp Mahlberg mahlb.nosp@m.erg@.nosp@m.hiskp.nosp@m..uni.nosp@m.-bonn.nosp@m..de - integration in timebased; Ben Salisbury salis.nosp@m.bury.nosp@m.@hisk.nosp@m.p.un.nosp@m.i-bon.nosp@m.n.de - process changes

Definition at line 45 of file BSEmcWaveformGenerationProcess.h.

Constructor & Destructor Documentation

◆ BSEmcWaveformGenerationProcess()

BSEmcWaveformGenerationProcess::BSEmcWaveformGenerationProcess	(	BSEmcAbsWaveformSimulator *	t_simulator = `nullptr`,
		Bool_t	t_storewaves = `kTRUE`,
		Bool_t	t_storeData = `kTRUE`,
		Bool_t	t_timebased = `kFALSE`
	)

◆ ~BSEmcWaveformGenerationProcess()

virtual BSEmcWaveformGenerationProcess::~BSEmcWaveformGenerationProcess ( )

virtual

Member Function Documentation

◆ ClassDef()

BSEmcWaveformGenerationProcess::ClassDef	(	BSEmcWaveformGenerationProcess	,
		2
	)

protected

◆ Process()

virtual void BSEmcWaveformGenerationProcess::Process ( )

virtual

The actual data transformation (digitizing, clustering, etc.) should be defined here.

Implements PndProcess< BSEmcDigitizationData >.

◆ RunTimebased()

void BSEmcWaveformGenerationProcess::RunTimebased ( Bool_t t_timebased = kTRUE )

inline

Definition at line 57 of file BSEmcWaveformGenerationProcess.h.

References fActivateBuffering.

57 { fActivateBuffering = t_timebased; };

BSEmcWaveformGenerationProcess::fActivateBuffering

Bool_t fActivateBuffering

Definition: BSEmcWaveformGenerationProcess.h:78

◆ SetData()

virtual void BSEmcWaveformGenerationProcess::SetData ( BSEmcDigitizationData * t_data )

virtual

Pass the data container ptrs to the process, and store pointers in class members.

Parameters

t_data

Implements PndProcess< BSEmcDigitizationData >.

◆ SetDetectorName()

virtual void BSEmcWaveformGenerationProcess::SetDetectorName ( const std::string & t_detectorname )

virtual

Set the Detector name. Important, as most EmcParameter need to know for which detector they need to be fetched (each Emc Subdetector has its own set of parameters)

Parameters

t_detectorname

Reimplemented from PndProcess< BSEmcDigitizationData >.

Reimplemented in BSEmcFwEndcapWaveformGeneration, and BSEmcFwEndcapCosmicWaveformGeneration.
