PndFieldMap Class Reference

#include <PndFieldMap.h>

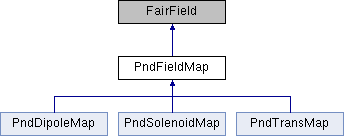

Inheritance diagram for PndFieldMap:

Public Member Functions
	PndFieldMap ()
	PndFieldMap (const char *mapName, const char *fileType="R")
	PndFieldMap (PndFieldPar *fieldPar)
virtual	~PndFieldMap ()
virtual void	Init ()
virtual Double_t	GetBx (Double_t x, Double_t y, Double_t z)
virtual Double_t	GetBy (Double_t x, Double_t y, Double_t z)
virtual Double_t	GetBz (Double_t x, Double_t y, Double_t z)
virtual Bool_t	IsInside (Double_t x, Double_t y, Double_t z, Int_t &ix, Int_t &iy, Int_t &iz, Double_t &dx, Double_t &dy, Double_t &dz)
void	WriteAsciiFile (const char *fileName)
void	WriteRootFile (const char *fileName, const char *mapName)
void	SetPosition (Double_t x, Double_t y, Double_t z)
void	SetScale (Double_t factor)
Double_t	GetXmin () const
Double_t	GetYmin () const
Double_t	GetZmin () const
Double_t	GetXmax () const
Double_t	GetYmax () const
Double_t	GetZmax () const
Double_t	GetXstep () const
Double_t	GetYstep () const
Double_t	GetZstep () const
Int_t	GetNx () const
Int_t	GetNy () const
Int_t	GetNz () const
Double_t	GetUnit () const
Double_t	GetPositionX () const
Double_t	GetPositionY () const
Double_t	GetPositionZ () const
Double_t	GetScale () const
TArrayF *	GetBx () const
TArrayF *	GetBy () const
TArrayF *	GetBz () const
const char *	GetFileName ()
virtual void	Print ()

Protected Member Functions
void	Reset ()
void	ReadAsciiFile (const char *fileName)
void	ReadRootFile (const char *fileName, const char *mapName)
void	SetField (const PndFieldMapData *data)
Double_t	Interpolate (Double_t dx, Double_t dy, Double_t dz)

Protected Attributes
TString	fFileName
Double_t	fScale
Double_t	funit
Double_t	fPosX
Double_t	fPosY
Double_t	fPosZ
Double_t	fXmin
Double_t	fXmax
Double_t	fXstep
Double_t	fYmin
Double_t	fYmax
Double_t	fYstep
Double_t	fZmin
Double_t	fZmax
Double_t	fZstep
Int_t	fNx
Int_t	fNy
Int_t	fNz
TArrayF *	fBx
TArrayF *	fBy
TArrayF *	fBz
Double_t	fHa [2][2][2]
Double_t	fHb [2][2]
	Field at corners of a grid cell. More...
Double_t	fHc [2]
	Interpolated field (2-dim) More...

Detailed Description

Definition at line 21 of file PndFieldMap.h.

Constructor & Destructor Documentation

PndFieldMap() [1/3]

PndFieldMap::PndFieldMap

(

)

Default constructor

Referenced by GetFileName().

PndFieldMap() [2/3]

PndFieldMap::PndFieldMap	(	const char *	mapName,
		const char *	fileType = "R"
	)

Standard constructor

Parameters

name	Name of field map
fileType	R = ROOT file, A = ASCII

PndFieldMap() [3/3]

PndFieldMap::PndFieldMap

(

PndFieldPar *

fieldPar

)

Constructor from PndFieldPar

~PndFieldMap()

virtual PndFieldMap::~PndFieldMap ( )

virtual

Destructor

Member Function Documentation

GetBx() [1/2]

virtual Double_t PndFieldMap::GetBx ( Double_t  x, Double_t  y, Double_t  z  )

virtual

Get the field components at a certain point

Parameters

x,y,z

Point coordinates (global) [cm] Bx,By,Bz Field components [kG]

GetBx() [2/2]

TArrayF* PndFieldMap::GetBx ( ) const

inline

Accessors to the field value arrays

Definition at line 95 of file PndFieldMap.h.

References fBx.

{ return fBx; }

GetBy() [1/2]

virtual Double_t PndFieldMap::GetBy ( Double_t  x, Double_t  y, Double_t  z  )

virtual

GetBy() [2/2]

TArrayF* PndFieldMap::GetBy ( ) const

inline

Definition at line 96 of file PndFieldMap.h.

References fBy.

{ return fBy; }

GetBz() [1/2]

virtual Double_t PndFieldMap::GetBz ( Double_t  x, Double_t  y, Double_t  z  )

virtual

GetBz() [2/2]

TArrayF* PndFieldMap::GetBz ( ) const

inline

Definition at line 97 of file PndFieldMap.h.

References fBz.

{ return fBz; }

GetFileName()

const char* PndFieldMap::GetFileName ( )

inline

Accessor to field map file

Definition at line 100 of file PndFieldMap.h.

References fFileName, Interpolate(), PndFieldMap(), Print(), ReadAsciiFile(), ReadRootFile(), Reset(), and SetField().

{ return fFileName.Data(); }

GetNx()

Int_t PndFieldMap::GetNx ( ) const

inline

Definition at line 80 of file PndFieldMap.h.

References fNx.

{ return fNx; }

GetNy()

Int_t PndFieldMap::GetNy ( ) const

inline

Definition at line 81 of file PndFieldMap.h.

References fNy.

{ return fNy; }

GetNz()

Int_t PndFieldMap::GetNz ( ) const

inline

Definition at line 82 of file PndFieldMap.h.

References fNz.

{ return fNz; }

GetPositionX()

Double_t PndFieldMap::GetPositionX ( ) const

inline

Accessor to field centre position in global system

Definition at line 87 of file PndFieldMap.h.

References fPosX.

{ return fPosX; }

GetPositionY()

Double_t PndFieldMap::GetPositionY ( ) const

inline

Definition at line 88 of file PndFieldMap.h.

References fPosY.

{ return fPosY; }

GetPositionZ()

Double_t PndFieldMap::GetPositionZ ( ) const

inline

Definition at line 89 of file PndFieldMap.h.

References fPosZ.

{ return fPosZ; }

GetScale()

Double_t PndFieldMap::GetScale ( ) const

inline

Accessor to global scaling factor

Definition at line 92 of file PndFieldMap.h.

References fScale.

{ return fScale; }

GetUnit()

Double_t PndFieldMap::GetUnit ( ) const

inline

Definition at line 84 of file PndFieldMap.h.

References funit.

{ return funit; }

GetXmax()

Double_t PndFieldMap::GetXmax ( ) const

inline

Definition at line 74 of file PndFieldMap.h.

References fXmax.

{ return fXmax; }

GetXmin()

Double_t PndFieldMap::GetXmin ( ) const

inline

Accessors to field parameters in local coordinate system

Definition at line 71 of file PndFieldMap.h.

References fXmin.

{ return fXmin; }

GetXstep()

Double_t PndFieldMap::GetXstep ( ) const

inline

Definition at line 77 of file PndFieldMap.h.

References fXstep.

{ return fXstep; }

GetYmax()

Double_t PndFieldMap::GetYmax ( ) const

inline

Definition at line 75 of file PndFieldMap.h.

References fYmax.

{ return fYmax; }

GetYmin()

Double_t PndFieldMap::GetYmin ( ) const

inline

Definition at line 72 of file PndFieldMap.h.

References fYmin.

{ return fYmin; }

GetYstep()

Double_t PndFieldMap::GetYstep ( ) const

inline

Definition at line 78 of file PndFieldMap.h.

References fYstep.

{ return fYstep; }

GetZmax()

Double_t PndFieldMap::GetZmax ( ) const

inline

Definition at line 76 of file PndFieldMap.h.

References fZmax.

{ return fZmax; }

GetZmin()

Double_t PndFieldMap::GetZmin ( ) const

inline

Definition at line 73 of file PndFieldMap.h.

References fZmin.

{ return fZmin; }

GetZstep()

Double_t PndFieldMap::GetZstep ( ) const

inline

Definition at line 79 of file PndFieldMap.h.

References fZstep.

{ return fZstep; }

Init()

virtual void PndFieldMap::Init ( )

virtual

Initialisation (read map from file)

Interpolate()

Double_t PndFieldMap::Interpolate ( Double_t  dx, Double_t  dy, Double_t  dz  )

protected

Get field values by interpolation of the grid.

Parameters

dx,dy,dz

Relative distance from grid point [cell units]

Referenced by GetFileName().

IsInside()

virtual Bool_t PndFieldMap::IsInside ( Double_t  x, Double_t  y, Double_t  z, Int_t &  ix, Int_t &  iy, Int_t &  iz, Double_t &  dx, Double_t &  dy, Double_t &  dz  )

virtual

Determine whether a point is inside the field map

Parameters

x,y,z	Point coordinates (global) [cm]
ix,iy,iz	(return) Grid cell
dx,dy,dz	(return) Distance from grid point [cm] if inside kTRUE if inside map, else kFALSE

Reimplemented in PndSolenoidMap, PndDipoleMap, and PndTransMap.

Print()

virtual void PndFieldMap::Print ( )

virtual

Screen output

Referenced by GetFileName().

ReadAsciiFile()

void PndFieldMap::ReadAsciiFile ( const char *  fileName )

protected

Read the field map from an ASCII file

Referenced by GetFileName().

ReadRootFile()

void PndFieldMap::ReadRootFile ( const char *  fileName, const char *  mapName  )

protected

Read field map from a ROOT file

Referenced by GetFileName().

Reset()

void PndFieldMap::Reset ( )

protected

Reset the field parameters and data

Referenced by GetFileName().

SetField()

void PndFieldMap::SetField ( const PndFieldMapData *  data )

protected

Set field parameters and data

Referenced by GetFileName().

SetPosition()

void PndFieldMap::SetPosition	(	Double_t	x,
		Double_t	y,
		Double_t	z
	)

Set the position of the field centre

SetScale()

void PndFieldMap::SetScale ( Double_t  factor )

inline

Set a global field scaling factor

Definition at line 68 of file PndFieldMap.h.

References fScale.

{ fScale = factor; }

WriteAsciiFile()

void PndFieldMap::WriteAsciiFile

(

const char *

fileName

)

Write the field map to an ASCII file

WriteRootFile()

void PndFieldMap::WriteRootFile	(	const char *	fileName,
		const char *	mapName
	)

Write field map data to a ROOT file

Member Data Documentation

fBx

TArrayF* PndFieldMap::fBx

protected

Arrays with the field values

Definition at line 148 of file PndFieldMap.h.

Referenced by GetBx().

fBy

TArrayF* PndFieldMap::fBy

protected

Definition at line 149 of file PndFieldMap.h.

Referenced by GetBy().

fBz

TArrayF* PndFieldMap::fBz

protected

Definition at line 150 of file PndFieldMap.h.

Referenced by GetBz().

fFileName

TString PndFieldMap::fFileName

protected

Map file name

Definition at line 128 of file PndFieldMap.h.

Referenced by GetFileName().

fHa

Double_t PndFieldMap::fHa[2][2][2]

protected

Variables for temporary storage Used in the very frequently called method GetFieldValue

Definition at line 154 of file PndFieldMap.h.

fHb

Double_t PndFieldMap::fHb[2][2]

protected

Field at corners of a grid cell.

Definition at line 155 of file PndFieldMap.h.

fHc

Double_t PndFieldMap::fHc[2]

protected

Interpolated field (2-dim)

Definition at line 156 of file PndFieldMap.h.

fNx

Int_t PndFieldMap::fNx

protected

Number of grid points

Definition at line 145 of file PndFieldMap.h.

Referenced by GetNx().

fNy

Int_t PndFieldMap::fNy

protected

Definition at line 145 of file PndFieldMap.h.

Referenced by GetNy().

fNz

Int_t PndFieldMap::fNz

protected

Definition at line 145 of file PndFieldMap.h.

Referenced by GetNz().

fPosX

Double_t PndFieldMap::fPosX

protected

Field centre position in global coordinates

Definition at line 137 of file PndFieldMap.h.

Referenced by GetPositionX().

fPosY

Double_t PndFieldMap::fPosY

protected

Definition at line 137 of file PndFieldMap.h.

Referenced by GetPositionY().

fPosZ

Double_t PndFieldMap::fPosZ

protected

Definition at line 137 of file PndFieldMap.h.

Referenced by GetPositionZ().

fScale

Double_t PndFieldMap::fScale

protected

Global scaling factor (w.r.t. map on file)

Definition at line 131 of file PndFieldMap.h.

Referenced by GetScale(), and SetScale().

funit

Double_t PndFieldMap::funit

protected

Units used in map file

Definition at line 134 of file PndFieldMap.h.

Referenced by GetUnit().

fXmax

Double_t PndFieldMap::fXmax

protected

Definition at line 140 of file PndFieldMap.h.

Referenced by GetXmax().

fXmin

Double_t PndFieldMap::fXmin

protected

Field limits in local coordinate system

Definition at line 140 of file PndFieldMap.h.

Referenced by GetXmin().

fXstep

Double_t PndFieldMap::fXstep

protected

Definition at line 140 of file PndFieldMap.h.

Referenced by GetXstep().

fYmax

Double_t PndFieldMap::fYmax

protected

Definition at line 141 of file PndFieldMap.h.

Referenced by GetYmax().

fYmin

Double_t PndFieldMap::fYmin

protected

Definition at line 141 of file PndFieldMap.h.

Referenced by GetYmin().

fYstep

Double_t PndFieldMap::fYstep

protected

Definition at line 141 of file PndFieldMap.h.

Referenced by GetYstep().

fZmax

Double_t PndFieldMap::fZmax

protected

Definition at line 142 of file PndFieldMap.h.

Referenced by GetZmax().

fZmin

Double_t PndFieldMap::fZmin

protected

Definition at line 142 of file PndFieldMap.h.

Referenced by GetZmin().

fZstep

Double_t PndFieldMap::fZstep

protected

Definition at line 142 of file PndFieldMap.h.

Referenced by GetZstep().

---

The documentation for this class was generated from the following file:

• PndFieldMap.h
