PndMasterTask Class Reference

Abstract class for all the master task list classes. More...

#include <PndMasterTask.h>

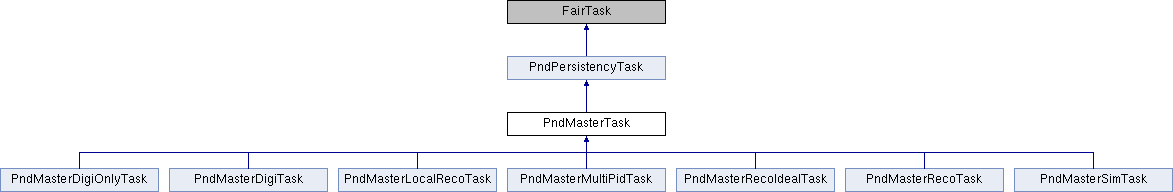

Inheritance diagram for PndMasterTask:

Public Member Functions
	PndMasterTask ()
	Default constructor. More...
	PndMasterTask (const char *name)
	Proper Constructor. More...
virtual	~PndMasterTask ()
	Destructor. More...
void	PrintTaskList ()
	It prints the list of tasks. More...
virtual void	SetPersistency (Bool_t pers=kTRUE)
	Set the persistency of all the tasks This function has to be implemented for each master task, since different tasks use different functions to change the persistency of the output TClonesArrays. More...
void	SetVerbose (Int_t iVerbose=1)
	Set the Verbosity to all the tasks. More...
void	SetVerbose (Int_t nTask, Int_t iVerbose)
	Set the Verbosity to a single task. More...
FairTask *	GetTask (Int_t nTask)
	Return the pointer to a single task. More...
Public Member Functions inherited from PndPersistencyTask
	PndPersistencyTask ()
	PndPersistencyTask (const char *name, Int_t iVerbose=1)
virtual	~PndPersistencyTask ()
void	SetPersistency (Bool_t val=kTRUE)
Bool_t	GetPersistency ()

Protected Attributes
std::vector< PndPersistencyTask * >	fBranchTasks
std::vector< FairTask * >	fStandardTasks
std::map< PndPersistencyTask *, bool >	fFixedPersistency

Detailed Description

Abstract class for all the master task list classes.

Master task Class

This class is the basic for all the master task classes, digi, reco, pid and so on. It provides basic functionalities, such as the possibility to set the Verbosity for each task separately or for all the tasks together, the possibility to getretrieve a Task in order to use some setter, and a print of all the included tasks.

Author

Stefano Spataro spata.nosp@m.ro@t.nosp@m.o.inf.nosp@m.n.it, Torino University

Version

1.0

Date

Feb 1, 2016

Definition at line 21 of file PndMasterTask.h.

Constructor & Destructor Documentation

PndMasterTask() [1/2]

PndMasterTask::PndMasterTask

(

)

Default constructor.

PndMasterTask() [2/2]

PndMasterTask::PndMasterTask

(

const char *

name

)

Proper Constructor.

~PndMasterTask()

virtual PndMasterTask::~PndMasterTask ( )

virtual

Destructor.

Member Function Documentation

GetTask()

FairTask* PndMasterTask::GetTask

(

Int_t

nTask

)

Return the pointer to a single task.

This function allows to retrieve the pointer of a task inside the task list, when you want to use some particular setter or change someting in the task.

Parameters

nTask

Index of the task you want to modify. Instead of the integer you can use the enum "k" + task name (i.e. kMvdDigiTask, kSttHitProducerRealFast, etc...)

Returns

A pointer to the corresponding task

PrintTaskList()

void PndMasterTask::PrintTaskList

(

)

It prints the list of tasks.

SetPersistency()

virtual void PndMasterTask::SetPersistency ( Bool_t  pers = kTRUE )

virtual

Set the persistency of all the tasks This function has to be implemented for each master task, since different tasks use different functions to change the persistency of the output TClonesArrays.

Parameters

fPersistency

Persistency level: 0 no TCA, 1 all TCA

Reimplemented in PndMasterLocalRecoTask, PndMasterMultiPidTask, PndMasterDigiTask, and PndMasterSimTask.

SetVerbose() [1/2]

void PndMasterTask::SetVerbose

(

Int_t

iVerbose = 1

)

Set the Verbosity to all the tasks.

Parameters

iVerbose

Verbosity level: 0 no messages, the higher more messages

SetVerbose() [2/2]

void PndMasterTask::SetVerbose	(	Int_t	nTask,
		Int_t	iVerbose
	)

Set the Verbosity to a single task.

This function has to be used when you want to change the verbosity to a single task

Parameters

nTask	Index of the task you want to modify. Instead of the integer you can use the enum k + task name (i.e. kMvdDigiTask, hSttHitProducerRealFast
iVerbose	Verbosity. 0 -> no messages; the higher -> more messages

Member Data Documentation

fBranchTasks

std::vector<PndPersistencyTask *> PndMasterTask::fBranchTasks

protected

Definition at line 77 of file PndMasterTask.h.

fFixedPersistency

std::map<PndPersistencyTask *, bool> PndMasterTask::fFixedPersistency

protected

Definition at line 79 of file PndMasterTask.h.

fStandardTasks

std::vector<FairTask *> PndMasterTask::fStandardTasks

protected

Definition at line 78 of file PndMasterTask.h.

---

The documentation for this class was generated from the following file:

• PndMasterTask.h
