Base class for accessing PID detector information of muon system (MDT, FMDT). More...

#include <PndPidMuonSystemInfo.h>

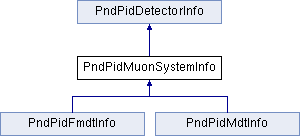

Inheritance diagram for PndPidMuonSystemInfo:

Public Member Functions
	PndPidMuonSystemInfo ()
	Default constructor. More...

	~PndPidMuonSystemInfo ()
	Default destructor. More...

void	Register ()

void	ResetMdtTrack ()

void	RegisterMdtTrack ()

Int_t	SetDetectorHits (FairRootManager *manager)
	Fill detector hit TCAs and adjust detector mode. More...

Bool_t	SetMdtRefit (Bool_t mdt_refit)
	Set fMdtRefit and perform refit. More...

Bool_t	Setup (FairRootManager manager, PndPropagator propagator, PndPidDetectorParams::DetectorParams *params)
	Setup muon system info. More...

void	Reset ()
	Clear MDT hit maps, call ResetMdtTrack() and refill hit maps calling MdtMapping(). More...

PndTrack *	AddMdtTrack (PndTrack *track)
	Creates a new hit in the fMdtTrack TCA. More...

Bool_t	MdtMapping ()
	Fill fMapMdtBarrel, fMapMdtEndcap and fMapMdtForward. More...

Bool_t	MdtGeometry ()
	Fill fMdtLayerPos and fMdtIronThickness. More...

Public Member Functions inherited from PndPidDetectorInfo
	PndPidDetectorInfo ()
	Default constructor. More...

virtual	~PndPidDetectorInfo ()

virtual Bool_t	GetInfo (PndTrack track, PndPidCandidate pidCand)=0
	Include detector information in charged PidCandidate. More...

virtual void	GetNeutralInfo (Int_t, TClonesArray *)
	Include detector information in neutral PidCandidate. More...

virtual void	ActivateDebugNtuple (Bool_t debug_mode)
	Set debug mode of detector. More...

void	SetDetectorMode (Short_t detector_mode)

void	SetUsePropagator (Bool_t use_propagator)

void	SetPropagator (PndPropagator *propagator)

void	SetIdeal (Bool_t is_ideal)

void	SetPidHypo (Int_t pid_hyp)

void	SetVerbose (Int_t verbose)

void	SetCorrPar (PndPidCorrPar *pid_corr_par)

virtual Bool_t	SetParContainers (FairRuntimeDb *)

TNtuple *	GetDetCorr ()

Int_t	GetDetectorMode ()

void	Finish ()

virtual Bool_t	Propagate (TVector3 pos, FairTrackParH helix, FairTrackParH res, Int_t pdg_code, Int_t direction=1)
	Call propagator to propagate track to detector. More...

virtual Bool_t	Propagate (std::string volume, FairTrackParH helix, FairTrackParH res, Int_t pdg_code)
	Call propagator to propagate track to detector. More...

Protected Member Functions
	ClassDef (PndPidMuonSystemInfo, 1)

Protected Member Functions inherited from PndPidDetectorInfo
	ClassDef (PndPidDetectorInfo, 1)

Protected Attributes
TClonesArray *	fMdtHit = nullptr
	Mdt hit TCA. More...

TClonesArray *	fMdtPoint = nullptr
	Mdt point TCA. More...

TClonesArray *	fMdtTrk = nullptr
	Mdt trk TCA. More...

TClonesArray *	fMdtTrack = nullptr
	Mdt track TCA. More...

Bool_t	fMdtRefit
	kTRUE if refit Mdt track. More...

std::unique_ptr< PndRecoKalmanFit >	fFitter {nullptr}
	Fitter for refit of Mdt track. More...

Float_t	fMdtLayerPos [3][20]
	position of MDT layers More...

Float_t	fMdtIronThickness [3][20]
	thickness of iron layers More...

std::map< Int_t, std::vector< Int_t > >	fMapMdtBarrel
	map of MDT barrel hits -> not used at the moment More...

std::map< Int_t, std::vector< Int_t > >	fMapMdtEndcap
	map of MDT endcap+muon filter hits -> not used at the moment More...

std::map< Int_t, std::vector< Int_t > >	fMapMdtForward
	map of MDT forward hits -> used for Fmdt More...

Protected Attributes inherited from PndPidDetectorInfo
Short_t	fDetMode = -1
	Detector Mode. More...

Bool_t	fUsePropagator = kFALSE
	kTRUE to use propagator like PndGeanePro. More...

PndPropagator *	fPropagator = nullptr

Bool_t	fIdeal = kFALSE
	Use MC information for ideal correlation. More...

Bool_t	fDebugMode = kTRUE
	kTRUE to fill debug ntuples More...

Int_t	fPidHyp = 0
	Particle Id hypothesis (pdg particle code) More...

Int_t	fVerbose = 0
	Verbosity level. More...

Float_t	fGLength = -1000

PndPidDetectorParams::DetectorParams *	fDetectorParams = nullptr

TNtuple *	fDetCorr = nullptr
	Debug ntuple. More...

PndPidCorrPar *	fCorrPar = new PndPidCorrPar()
	Correlation parameters. More...

Detailed Description

Base class for accessing PID detector information of muon system (MDT, FMDT).

This class includes attributes and functions that are shared by MDT and FMDT.

Author: Sarah Gaiser gaise.nosp@m.r@hi.nosp@m.skp.u.nosp@m.ni-b.nosp@m.onn.d.nosp@m.e, HISKP Bonn

Version: 1.0

Date: Jan 2021

Definition at line 27 of file PndPidMuonSystemInfo.h.

Constructor & Destructor Documentation

◆ PndPidMuonSystemInfo()

PndPidMuonSystemInfo::PndPidMuonSystemInfo ( )

Default constructor.

◆ ~PndPidMuonSystemInfo()

PndPidMuonSystemInfo::~PndPidMuonSystemInfo ( )

Default destructor.

Member Function Documentation

◆ AddMdtTrack()

PndTrack* PndPidMuonSystemInfo::AddMdtTrack ( PndTrack * track )

Creates a new hit in the fMdtTrack TCA.

Parameters

track Track to be added.

Returns: TCA including track.

Referenced by RegisterMdtTrack().

◆ ClassDef()

PndPidMuonSystemInfo::ClassDef	(	PndPidMuonSystemInfo	,
		1
	)

protected

◆ MdtGeometry()

Bool_t PndPidMuonSystemInfo::MdtGeometry ( )

Fill fMdtLayerPos and fMdtIronThickness.

Returns: kTRUE if successful.

Referenced by RegisterMdtTrack().

◆ MdtMapping()

Bool_t PndPidMuonSystemInfo::MdtMapping ( )

Fill fMapMdtBarrel, fMapMdtEndcap and fMapMdtForward.

Returns: kTRUE if successful.

Referenced by RegisterMdtTrack().

◆ Register()

void PndPidMuonSystemInfo::Register ( )

inlinevirtual

Reimplemented from PndPidDetectorInfo.

Definition at line 32 of file PndPidMuonSystemInfo.h.

References fMdtRefit, and RegisterMdtTrack().

   {
     if (fMdtRefit) RegisterMdtTrack();
   };

◆ RegisterMdtTrack()

void PndPidMuonSystemInfo::RegisterMdtTrack ( )

inline

Definition at line 40 of file PndPidMuonSystemInfo.h.

References AddMdtTrack(), fMdtTrack, MdtGeometry(), MdtMapping(), Reset(), SetDetectorHits(), SetMdtRefit(), and Setup().

Referenced by Register().

   {
     FairRootManager::Instance()->Register("MdtTrack", "Pid", fMdtTrack, kTRUE);
     LOG(INFO) << "PndPidCorrelator::Register(): "
               << "registered branch "
               << "MdtTrack";
   };

◆ Reset()

void PndPidMuonSystemInfo::Reset ( )

virtual

Clear MDT hit maps, call ResetMdtTrack() and refill hit maps calling MdtMapping().

Reimplemented from PndPidDetectorInfo.

Referenced by RegisterMdtTrack().

◆ ResetMdtTrack()

void PndPidMuonSystemInfo::ResetMdtTrack ( )

inline

Definition at line 36 of file PndPidMuonSystemInfo.h.

References fMdtRefit, and fMdtTrack.

   {
     if (fMdtRefit) fMdtTrack->Delete();
   };

◆ SetDetectorHits()

Int_t PndPidMuonSystemInfo::SetDetectorHits ( FairRootManager * manager )

virtual

Fill detector hit TCAs and adjust detector mode.

Parameters

manager Needed to get FtofHit and FtofPoint TCAs of event.

Returns: Adjusted detector mode.

Implements PndPidDetectorInfo.

Referenced by RegisterMdtTrack().

◆ SetMdtRefit()

Bool_t PndPidMuonSystemInfo::SetMdtRefit ( Bool_t mdt_refit )

Set fMdtRefit and perform refit.

Parameters

mdt_refit Perform refit if kTRUE.

Returns: kTRUE if successful.

Referenced by RegisterMdtTrack().

◆ Setup()

Bool_t PndPidMuonSystemInfo::Setup	(	FairRootManager *	manager,
		PndPropagator *	propagator,
		PndPidDetectorParams::DetectorParams *	params
	)

virtual

Setup muon system info.

Parameters

manager	Needed to get all relevant TCAs of event.
propagator	Propagator to be used in track-hit correlation.
params	Set of detector and track parameters that is passed from PndPidCorrelator.

Returns: kTRUE if successful.

Reimplemented from PndPidDetectorInfo.

Referenced by RegisterMdtTrack().

Member Data Documentation

◆ fFitter

std::unique_ptr<PndRecoKalmanFit> PndPidMuonSystemInfo::fFitter {nullptr}

protected

Fitter for refit of Mdt track.

Definition at line 103 of file PndPidMuonSystemInfo.h.

◆ fMapMdtBarrel

std::map<Int_t, std::vector<Int_t> > PndPidMuonSystemInfo::fMapMdtBarrel

protected

map of MDT barrel hits -> not used at the moment

Definition at line 106 of file PndPidMuonSystemInfo.h.

◆ fMapMdtEndcap

std::map<Int_t, std::vector<Int_t> > PndPidMuonSystemInfo::fMapMdtEndcap

protected

map of MDT endcap+muon filter hits -> not used at the moment

Definition at line 107 of file PndPidMuonSystemInfo.h.

◆ fMapMdtForward

std::map<Int_t, std::vector<Int_t> > PndPidMuonSystemInfo::fMapMdtForward

protected

map of MDT forward hits -> used for Fmdt

Definition at line 108 of file PndPidMuonSystemInfo.h.

◆ fMdtHit

TClonesArray* PndPidMuonSystemInfo::fMdtHit = nullptr

protected

Mdt hit TCA.

Definition at line 97 of file PndPidMuonSystemInfo.h.

◆ fMdtIronThickness

Float_t PndPidMuonSystemInfo::fMdtIronThickness[3][20]

protected

thickness of iron layers

Definition at line 105 of file PndPidMuonSystemInfo.h.

◆ fMdtLayerPos

Float_t PndPidMuonSystemInfo::fMdtLayerPos[3][20]

protected

position of MDT layers

Definition at line 104 of file PndPidMuonSystemInfo.h.

◆ fMdtPoint

TClonesArray* PndPidMuonSystemInfo::fMdtPoint = nullptr

protected

Mdt point TCA.

Definition at line 98 of file PndPidMuonSystemInfo.h.

◆ fMdtRefit

Bool_t PndPidMuonSystemInfo::fMdtRefit

protected

kTRUE if refit Mdt track.

Definition at line 101 of file PndPidMuonSystemInfo.h.

Referenced by Register(), and ResetMdtTrack().

◆ fMdtTrack

TClonesArray* PndPidMuonSystemInfo::fMdtTrack = nullptr

protected

Mdt track TCA.

Definition at line 100 of file PndPidMuonSystemInfo.h.

Referenced by RegisterMdtTrack(), and ResetMdtTrack().

◆ fMdtTrk

TClonesArray* PndPidMuonSystemInfo::fMdtTrk = nullptr

protected

Mdt trk TCA.

Definition at line 99 of file PndPidMuonSystemInfo.h.

The documentation for this class was generated from the following file:

PndPidMuonSystemInfo.h
