PndSdsCluster Class Reference

Class to store the Digis which belong to one cluster This class holds the information which Digi belongs to the actual cluster. The information is stored in a vector<Int_t> which contains the position of the digi in the TClonesArray where it is stored. More...

#include <PndSdsCluster.h>

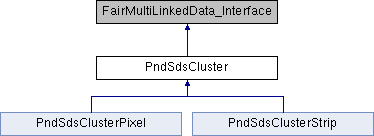

Inheritance diagram for PndSdsCluster:

Public Member Functions
	PndSdsCluster ()
	~PndSdsCluster ()
	PndSdsCluster (std::vector< Int_t > list)
virtual void	SetClusterList (Int_t DigiType, std::vector< Int_t > list, Int_t fileId, Int_t eventId)=0
std::vector< Int_t >	GetClusterList () const
Int_t	GetClusterSize () const
Int_t	GetDigiIndex (Int_t i) const
bool	DigiBelongsToCluster (Int_t digiIndex)
virtual void	Print ()

Protected Member Functions
	ClassDef (PndSdsCluster, 2)

Protected Attributes
std::vector< Int_t >	fClusterList

Friends
std::ostream &	operator<< (std::ostream &out, PndSdsCluster &cl)

Detailed Description

Class to store the Digis which belong to one cluster This class holds the information which Digi belongs to the actual cluster. The information is stored in a vector<Int_t> which contains the position of the digi in the TClonesArray where it is stored.

PndSdsCluster.h

Author

T.Stockmanns t.sto.nosp@m.ckma.nosp@m.nns@f.nosp@m.z-ju.nosp@m.elich.nosp@m..de

Examples:

/home/gitlab-runner/builds/LYZoAKaU/0/PandaRootGroup/PandaRoot/detectors/sds/SdsReco/PndSdsChargeWeightingAlgorithms.h.

Definition at line 18 of file PndSdsCluster.h.

Constructor & Destructor Documentation

PndSdsCluster() [1/2]

PndSdsCluster::PndSdsCluster ( )

inline

Definition at line 32 of file PndSdsCluster.h.

Referenced by ~PndSdsCluster().

: fClusterList(){};

~PndSdsCluster()

PndSdsCluster::~PndSdsCluster ( )

inline

Definition at line 33 of file PndSdsCluster.h.

References PndSdsCluster(), and SetClusterList().

{};

PndSdsCluster() [2/2]

PndSdsCluster::PndSdsCluster

(

std::vector< Int_t >

list

)

Member Function Documentation

ClassDef()

PndSdsCluster::ClassDef ( PndSdsCluster  , 2    )

protected

DigiBelongsToCluster()

bool PndSdsCluster::DigiBelongsToCluster

(

Int_t

digiIndex

)

Referenced by GetDigiIndex().

GetClusterList()

std::vector<Int_t> PndSdsCluster::GetClusterList ( ) const

inline

Definition at line 37 of file PndSdsCluster.h.

References fClusterList.

{ return fClusterList; }

GetClusterSize()

Int_t PndSdsCluster::GetClusterSize ( ) const

inline

Definition at line 38 of file PndSdsCluster.h.

References fClusterList.

{ return fClusterList.size(); }

GetDigiIndex()

Int_t PndSdsCluster::GetDigiIndex ( Int_t  i ) const

inline

Definition at line 39 of file PndSdsCluster.h.

References DigiBelongsToCluster(), fClusterList, i, and Print().

{ return fClusterList[i]; }

Print()

virtual void PndSdsCluster::Print ( )

virtual

Referenced by GetDigiIndex().

SetClusterList()

virtual void PndSdsCluster::SetClusterList ( Int_t  DigiType, std::vector< Int_t >  list, Int_t  fileId, Int_t  eventId  )

pure virtual

Implemented in PndSdsClusterStrip, and PndSdsClusterPixel.

Referenced by ~PndSdsCluster().

Friends And Related Function Documentation

operator<<

std::ostream& operator<< ( std::ostream &  out, PndSdsCluster &  cl  )

friend

Definition at line 20 of file PndSdsCluster.h.

  {
    std::vector<Int_t> list = cl.GetClusterList();
    out << "Hits in Cluster: (";
    for (UInt_t i = 0; i < list.size(); i++)
      out << list[i] << " ";
    out << ")" << std::endl;

    return out;
  }

Member Data Documentation

fClusterList

std::vector<Int_t> PndSdsCluster::fClusterList

protected

Definition at line 46 of file PndSdsCluster.h.

Referenced by GetClusterList(), GetClusterSize(), GetDigiIndex(), PndSdsClusterPixel::SetClusterList(), and PndSdsClusterStrip::SetClusterList().

---

The documentation for this class was generated from the following file:

• PndSdsCluster.h
