PndSdsStripHitProducer Class Reference

Hit Producer Task for strip detectors. More...

#include <PndSdsStripHitProducer.h>

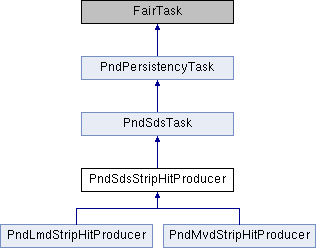

Inheritance diagram for PndSdsStripHitProducer:

Public Member Functions
	PndSdsStripHitProducer ()
	PndSdsStripHitProducer (PndSdsStripHitProducer &other)
	PndSdsStripHitProducer (const char *name)
virtual	~PndSdsStripHitProducer ()
virtual void	SetParContainers ()
virtual InitStatus	Init ()
virtual InitStatus	ReInit ()
virtual void	SetBranchNames ()=0
virtual void	SetMCPointType ()
virtual void	Exec (Option_t *opt)
virtual void	FinishEvent ()
virtual void	FinishTask ()
void	AddDigi (Int_t &iStrip, Int_t iPoint, Int_t detID, Int_t sensorID, Int_t fe, Int_t chan, Double_t charge)
void	RunTimeBased ()
PndSdsStripHitProducer &	operator= (PndSdsStripHitProducer &other)
Public Member Functions inherited from PndSdsTask
	PndSdsTask ()
	PndSdsTask (const char *name, Int_t iVerbose=1)
virtual	~PndSdsTask ()
virtual void	SetInBranchId ()
Public Member Functions inherited from PndPersistencyTask
	PndPersistencyTask ()
	PndPersistencyTask (const char *name, Int_t iVerbose=1)
virtual	~PndPersistencyTask ()
void	SetPersistency (Bool_t val=kTRUE)
Bool_t	GetPersistency ()

Protected Member Functions
void	Register ()
void	Reset ()
void	ProduceHits ()
virtual void	SetCalculators ()
Bool_t	SelectSensorParams (Int_t sensorID)
Double_t	DigitizeTime (Double_t time, Double_t charge)
	ClassDef (PndSdsStripHitProducer, 5)
Protected Member Functions inherited from PndSdsTask
	ClassDef (PndSdsTask, 1)

Protected Attributes
TClonesArray *	fPointArray
TClonesArray *	fStripArray
	Output array of PndSdsHits. More...
FairWriteoutBuffer *	fDataBuffer
TList *	fDigiParameterList
	Digitization Parameters. More...
TList *	fChargeDigiParameterList
PndSdsStripDigiPar *	fCurrentDigiPar
PndSdsChargeConversion *	fCurrentChargeConverter
std::map< const char *, PndSdsCalcStrip * >	fStripCalcTop
	Calculator objects. More...
std::map< const char *, PndSdsCalcStrip * >	fStripCalcBot
std::map< const char *, PndSdsChargeConversion * >	fChargeConverter
PndSdsCalcStrip *	fCurrentStripCalcTop
PndSdsCalcStrip *	fCurrentStripCalcBot
FairMCEventHeader *	fMcEventHeader
PndGeoHandling *	fGeoH
Bool_t	fOverrideParams
	///< converter for detector names More...
Bool_t	fTimeOrderedDigi
	parameter to switch to time ordered simulation More...
Int_t	fEventNr
	EventCounter. More...
Protected Attributes inherited from PndSdsTask
TString	fInBranchName
TString	fOutBranchName
TString	fFolderName
Int_t	fInBranchId
Int_t	fOutBranchId

Detailed Description

Hit Producer Task for strip detectors.

The choice of the parameters used for Digitization depends on the invocation of the different constructors of this task. Instantiating by the default constructor forces the digitisation parameters initialized from the DigiPar-Database. On the other hand these parameters may be overridden by invoking the constructor:

 PndSdsStripHitProducer(Double_t, Double_t, Double_t, Double_t, TVector2, TVector2,
Int_t, Int_t, Int_t, Double_t, Double_t)

Basically, the sensors are thought to be rectangular (even if they are not). Knowing the origin of the wafer, the strips can be described by an angle (orientation), their separation with respect to each other (pitch) and one point that is known to be part of the first strip (anchor point).
The numbering scheme is as follows (assuming 128 channels per FE):

strip index	frontend #	side
0	0	top	<- Top Anchor
1	0	top
...	0	top
127	0	top
128	1	top
...	1	top
255	1	top
256	2	top
...	...	top
topNrFE*128-1	topNrFE-1	top
topNrFE*128	topNrFE	bottom	<- Bottom Anchor
...	topNrFE	bottom
topNrFE*128+127	topNrFE	bottom
topNrFE*128+128	topNrFE+1	bottom
...	...	bottom
(topNrFE+botNrFE)*128-1	topNrFE+botNrFE-1	bottom

The numbering starts from the strip containing the anchor point following the direction orthogonal to the strips in mathematically positive sense (along x-axis in positive direction, if the strip orientation equals 90 degrees).

Author

HG Zaunick hg.za.nosp@m.unic.nosp@m.k@phy.nosp@m.sik..nosp@m.tu-dr.nosp@m.esde.nosp@m.n.de

Definition at line 70 of file PndSdsStripHitProducer.h.

Constructor & Destructor Documentation

PndSdsStripHitProducer() [1/3]

PndSdsStripHitProducer::PndSdsStripHitProducer

(

)

Default constructor
creates object with parameters taken implicitly from DigiPar-File

Referenced by PndSdsStripHitProducer().

PndSdsStripHitProducer() [2/3]

PndSdsStripHitProducer::PndSdsStripHitProducer ( PndSdsStripHitProducer &  other )

inline

Definition at line 77 of file PndSdsStripHitProducer.h.

References Init(), PndSdsStripHitProducer(), ReInit(), SetBranchNames(), SetParContainers(), and ~PndSdsStripHitProducer().

    : PndSdsTask(), fPointArray(other.fPointArray), fStripArray(other.fStripArray), fDataBuffer(other.fDataBuffer), fDigiParameterList(other.fDigiParameterList),
      fChargeDigiParameterList(other.fChargeDigiParameterList), fCurrentDigiPar(other.fCurrentDigiPar), fCurrentChargeConverter(other.fCurrentChargeConverter),
      fStripCalcTop(other.fStripCalcTop), fStripCalcBot(other.fStripCalcBot), fChargeConverter(other.fChargeConverter), fCurrentStripCalcTop(other.fCurrentStripCalcTop),
      fCurrentStripCalcBot(other.fCurrentStripCalcBot), fMcEventHeader(other.fMcEventHeader), fGeoH(other.fGeoH), fOverrideParams(other.fOverrideParams),
      fTimeOrderedDigi(other.fTimeOrderedDigi), fEventNr(other.fEventNr){};

PndSdsStripHitProducer() [3/3]

PndSdsStripHitProducer::PndSdsStripHitProducer

(

const char *

name

)

Like default Constructor, but passes a name to PndSdsTask

~PndSdsStripHitProducer()

virtual PndSdsStripHitProducer::~PndSdsStripHitProducer ( )

virtual

Destructor

Referenced by PndSdsStripHitProducer().

Member Function Documentation

AddDigi()

void PndSdsStripHitProducer::AddDigi	(	Int_t &	iStrip,
		Int_t	iPoint,
		Int_t	detID,
		Int_t	sensorID,
		Int_t	fe,
		Int_t	chan,
		Double_t	charge
	)

Referenced by SetMCPointType().

ClassDef()

PndSdsStripHitProducer::ClassDef ( PndSdsStripHitProducer  , 5    )

protected

DigitizeTime()

Double_t PndSdsStripHitProducer::DigitizeTime ( Double_t  time, Double_t  charge  )

protected

Exec()

virtual void PndSdsStripHitProducer::Exec ( Option_t *  opt )

virtual

Virtual method Exec

Referenced by SetMCPointType().

FinishEvent()

virtual void PndSdsStripHitProducer::FinishEvent ( )

virtual

Referenced by SetMCPointType().

FinishTask()

virtual void PndSdsStripHitProducer::FinishTask ( )

virtual

Referenced by SetMCPointType().

Init()

virtual InitStatus PndSdsStripHitProducer::Init ( )

virtual

Virtual method Init

Referenced by PndSdsStripHitProducer().

operator=()

PndSdsStripHitProducer& PndSdsStripHitProducer::operator= ( PndSdsStripHitProducer &  other )

inline

Definition at line 110 of file PndSdsStripHitProducer.h.

References fChargeConverter, fChargeDigiParameterList, fCurrentChargeConverter, fCurrentDigiPar, fCurrentStripCalcBot, fCurrentStripCalcTop, fDataBuffer, fDigiParameterList, fEventNr, fGeoH, fMcEventHeader, fOverrideParams, fPointArray, fStripArray, fStripCalcBot, fStripCalcTop, and fTimeOrderedDigi.

  {
    if (this != &other) // protect against invalid self-assignment
    {
      fPointArray = other.fPointArray;
      fStripArray = other.fStripArray;
      fDataBuffer = other.fDataBuffer;
      fDigiParameterList = other.fDigiParameterList;
      fChargeDigiParameterList = other.fChargeDigiParameterList;
      fCurrentDigiPar = other.fCurrentDigiPar;
      fCurrentChargeConverter = other.fCurrentChargeConverter;
      fStripCalcTop = other.fStripCalcTop;
      fStripCalcBot = other.fStripCalcBot;
      fChargeConverter = other.fChargeConverter;
      fCurrentStripCalcTop = other.fCurrentStripCalcTop;
      fCurrentStripCalcBot = other.fCurrentStripCalcBot;
      fMcEventHeader = other.fMcEventHeader;
      fGeoH = other.fGeoH;
      fOverrideParams = other.fOverrideParams;
      fTimeOrderedDigi = other.fTimeOrderedDigi;
      fEventNr = other.fEventNr;
    }
    return *this;
  }

ProduceHits()

void PndSdsStripHitProducer::ProduceHits ( )

protected

Register()

void PndSdsStripHitProducer::Register ( )

protected

ReInit()

virtual InitStatus PndSdsStripHitProducer::ReInit ( )

virtual

Referenced by PndSdsStripHitProducer().

Reset()

void PndSdsStripHitProducer::Reset ( )

protected

RunTimeBased()

void PndSdsStripHitProducer::RunTimeBased ( )

inline

Definition at line 108 of file PndSdsStripHitProducer.h.

References fTimeOrderedDigi.

{ fTimeOrderedDigi = kTRUE; }

SelectSensorParams()

Bool_t PndSdsStripHitProducer::SelectSensorParams ( Int_t  sensorID )

protected

SetBranchNames()

virtual void PndSdsStripHitProducer::SetBranchNames ( )

pure virtual

pure virtual method SetBranchNames

called by Init() function to set individual branch names

Implements PndSdsTask.

Implemented in PndMvdStripHitProducer, and PndLmdStripHitProducer.

Referenced by PndSdsStripHitProducer().

SetCalculators()

virtual void PndSdsStripHitProducer::SetCalculators ( )

protectedvirtual

Reimplemented in PndMvdStripHitProducer, and PndLmdStripHitProducer.

SetMCPointType()

virtual void PndSdsStripHitProducer::SetMCPointType ( )

inlinevirtual

Definition at line 100 of file PndSdsStripHitProducer.h.

References AddDigi(), Exec(), FinishEvent(), and FinishTask().

{};

SetParContainers()

virtual void PndSdsStripHitProducer::SetParContainers ( )

virtual

Reimplemented in PndMvdStripHitProducer, and PndLmdStripHitProducer.

Referenced by PndSdsStripHitProducer().

Member Data Documentation

fChargeConverter

std::map<const char *, PndSdsChargeConversion *> PndSdsStripHitProducer::fChargeConverter

protected

Definition at line 153 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fChargeDigiParameterList

TList* PndSdsStripHitProducer::fChargeDigiParameterList

protected

Definition at line 146 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fCurrentChargeConverter

PndSdsChargeConversion* PndSdsStripHitProducer::fCurrentChargeConverter

protected

Definition at line 148 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fCurrentDigiPar

PndSdsStripDigiPar* PndSdsStripHitProducer::fCurrentDigiPar

protected

Definition at line 147 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fCurrentStripCalcBot

PndSdsCalcStrip* PndSdsStripHitProducer::fCurrentStripCalcBot

protected

Definition at line 155 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fCurrentStripCalcTop

PndSdsCalcStrip* PndSdsStripHitProducer::fCurrentStripCalcTop

protected

Definition at line 154 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fDataBuffer

FairWriteoutBuffer* PndSdsStripHitProducer::fDataBuffer

protected

Definition at line 142 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fDigiParameterList

TList* PndSdsStripHitProducer::fDigiParameterList

protected

Digitization Parameters.

Definition at line 145 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fEventNr

Int_t PndSdsStripHitProducer::fEventNr

protected

EventCounter.

Definition at line 171 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fGeoH

PndGeoHandling* PndSdsStripHitProducer::fGeoH

protected

Definition at line 167 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fMcEventHeader

FairMCEventHeader* PndSdsStripHitProducer::fMcEventHeader

protected

Definition at line 165 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fOverrideParams

Bool_t PndSdsStripHitProducer::fOverrideParams

protected

///< converter for detector names

internal Flag that controls use of Parameter Invocations

Definition at line 168 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fPointArray

TClonesArray* PndSdsStripHitProducer::fPointArray

protected

Input array of PndSdsMCPoints

Definition at line 137 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fStripArray

TClonesArray* PndSdsStripHitProducer::fStripArray

protected

Output array of PndSdsHits.

Definition at line 140 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fStripCalcBot

std::map<const char *, PndSdsCalcStrip *> PndSdsStripHitProducer::fStripCalcBot

protected

Definition at line 152 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fStripCalcTop

std::map<const char *, PndSdsCalcStrip *> PndSdsStripHitProducer::fStripCalcTop

protected

Calculator objects.

Definition at line 151 of file PndSdsStripHitProducer.h.

Referenced by operator=().

fTimeOrderedDigi

Bool_t PndSdsStripHitProducer::fTimeOrderedDigi

protected

parameter to switch to time ordered simulation

Definition at line 169 of file PndSdsStripHitProducer.h.

Referenced by operator=(), and RunTimeBased().

---

The documentation for this class was generated from the following file:

• PndSdsStripHitProducer.h
