Base class to tests reconstructed hits based on FairHits for the PANDA QA tasks This class calculates the difference in time and each spatial coordinate between a FairHit and its corresponding FairMCPoint. The result is stored in a dedicated histogram. At the end of the run the mean and RMS value are taken from the histogram and assigned to a measurement with boundaries. If the value is inside the boundaries this value passes the test otherwise it fails. The result is printed in a CDASH compatible format and the histograms are stored as a PNG and a root file. More...

#include <PndFairHitQATask.h>

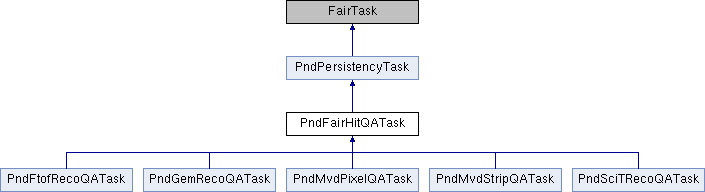

Inheritance diagram for PndFairHitQATask:

Public Member Functions
	PndFairHitQATask (std::string hitBranchName, std::string pointBranchName)

virtual	~PndFairHitQATask ()

virtual void	SetParContainers ()

virtual InitStatus	Init ()

virtual void	Exec (Option_t *opt)

virtual void	FinishTask ()

void	SetWorkdir (TString path)
	only needed to give cdash the path to the stored pictures More...

void	SetHitBranch (std::string hitBranch)

void	SetPointBranch (std::string pointBranch)

void	SetOutputPlotName (std::string val)

Public Member Functions inherited from PndPersistencyTask
	PndPersistencyTask ()

	PndPersistencyTask (const char *name, Int_t iVerbose=1)

virtual	~PndPersistencyTask ()

void	SetPersistency (Bool_t val=kTRUE)

Bool_t	GetPersistency ()

Protected Member Functions
virtual void	InitHistos ()
	Initialize the histograms containing the measurement data in the histogram map. More...

virtual void	SetAllBoundaries ()
	Set the name and the boundaries for a measurement to pass. More...

virtual void	CalculateResolutions (FairHit *hit)
	Calculate the resolution of a FairHit based on the MC data from a FairMCPoint. More...

virtual void	FillHistos ()
	Fill the output of CalculateResolutions into the corresponding histograms. More...

virtual void	AssignMeasurements ()
	Extract the measurement values from the histograms like mean or RMS values and assign them to the measurement defined in SetAllBoundaries. More...

bool	Test ()

void	DrawHistos ()

void	SaveHistos ()

void	PrintDartMeasurement ()

	ClassDef (PndFairHitQATask, 2)

Protected Attributes
std::string	fHitBranchName

std::string	fPointBranchName

std::string	fOutputPlotName {"ResolutionHistos.png"}

TClonesArray *	fMcPoints = nullptr

TClonesArray *	fHits = nullptr

Bool_t	fProperDifference = false
	if method CalculateResolutions worked More...

TVector3	fSpatialDifference

double	fTimeDifference = -1.0

TString	fWorkdir

PndMeasurementBoundaries	fBoundaries

std::map< std::string, TH1 * >	fHistos

Detailed Description

Base class to tests reconstructed hits based on FairHits for the PANDA QA tasks This class calculates the difference in time and each spatial coordinate between a FairHit and its corresponding FairMCPoint. The result is stored in a dedicated histogram. At the end of the run the mean and RMS value are taken from the histogram and assigned to a measurement with boundaries. If the value is inside the boundaries this value passes the test otherwise it fails. The result is printed in a CDASH compatible format and the histograms are stored as a PNG and a root file.

This class is meant to be a base class and real tests have to be derived from this class. Especially the boundaries of the measurements have to be adopted to the actual use case.

Author: Tobias Stockmanns t.sto.nosp@m.ckma.nosp@m.nns@f.nosp@m.z-ju.nosp@m.elich.nosp@m..de

Date: 23.11.2022

Definition at line 36 of file PndFairHitQATask.h.

Constructor & Destructor Documentation

◆ PndFairHitQATask()

PndFairHitQATask::PndFairHitQATask	(	std::string	hitBranchName,
		std::string	pointBranchName
	)

Default constructor

◆ ~PndFairHitQATask()

virtual PndFairHitQATask::~PndFairHitQATask ( )

virtual

Destructor

Member Function Documentation

◆ AssignMeasurements()

virtual void PndFairHitQATask::AssignMeasurements ( )

protectedvirtual

Extract the measurement values from the histograms like mean or RMS values and assign them to the measurement defined in SetAllBoundaries.

Reimplemented in PndFtofRecoQATask, PndGemRecoQATask, PndMvdPixelQATask, PndMvdStripQATask, and PndSciTRecoQATask.

Referenced by SetOutputPlotName().

◆ CalculateResolutions()

virtual void PndFairHitQATask::CalculateResolutions ( FairHit * hit )

protectedvirtual

Calculate the resolution of a FairHit based on the MC data from a FairMCPoint.

Reimplemented in PndFtofRecoQATask, PndGemRecoQATask, PndMvdPixelQATask, PndMvdStripQATask, and PndSciTRecoQATask.

Referenced by SetOutputPlotName().

◆ ClassDef()

PndFairHitQATask::ClassDef	(	PndFairHitQATask	,
		2
	)

protected

◆ DrawHistos()

void PndFairHitQATask::DrawHistos ( )

protected

Referenced by SetOutputPlotName().

◆ Exec()

virtual void PndFairHitQATask::Exec ( Option_t * opt )

virtual

Virtual method Exec

◆ FillHistos()

virtual void PndFairHitQATask::FillHistos ( )

protectedvirtual

Fill the output of CalculateResolutions into the corresponding histograms.

Reimplemented in PndFtofRecoQATask, PndGemRecoQATask, PndMvdPixelQATask, PndMvdStripQATask, and PndSciTRecoQATask.

Referenced by SetOutputPlotName().

◆ FinishTask()

virtual void PndFairHitQATask::FinishTask ( )

virtual

◆ Init()

virtual InitStatus PndFairHitQATask::Init ( )

virtual

◆ InitHistos()

virtual void PndFairHitQATask::InitHistos ( )

protectedvirtual

Initialize the histograms containing the measurement data in the histogram map.

Reimplemented in PndFtofRecoQATask, PndGemRecoQATask, PndMvdPixelQATask, PndMvdStripQATask, and PndSciTRecoQATask.

Referenced by SetOutputPlotName().

◆ PrintDartMeasurement()

void PndFairHitQATask::PrintDartMeasurement ( )

protected

Referenced by SetOutputPlotName().

◆ SaveHistos()

void PndFairHitQATask::SaveHistos ( )

protected

Referenced by SetOutputPlotName().

◆ SetAllBoundaries()

virtual void PndFairHitQATask::SetAllBoundaries ( )

protectedvirtual

Set the name and the boundaries for a measurement to pass.

Reimplemented in PndFtofRecoQATask, PndGemRecoQATask, PndMvdPixelQATask, PndMvdStripQATask, and PndSciTRecoQATask.

Referenced by SetOutputPlotName().

◆ SetHitBranch()

void PndFairHitQATask::SetHitBranch ( std::string hitBranch )

inline

Definition at line 53 of file PndFairHitQATask.h.

References fHitBranchName.

53 { fHitBranchName = hitBranch; }

PndFairHitQATask::fHitBranchName

std::string fHitBranchName

Definition: PndFairHitQATask.h:91

◆ SetOutputPlotName()

void PndFairHitQATask::SetOutputPlotName ( std::string val )

inline

Definition at line 55 of file PndFairHitQATask.h.

References AssignMeasurements(), CalculateResolutions(), DrawHistos(), FillHistos(), fOutputPlotName, InitHistos(), PrintDartMeasurement(), SaveHistos(), SetAllBoundaries(), and Test().

55 { fOutputPlotName = val; }

PndFairHitQATask::fOutputPlotName

std::string fOutputPlotName

Definition: PndFairHitQATask.h:93

◆ SetParContainers()

virtual void PndFairHitQATask::SetParContainers ( )

virtual

Virtual method Init

Reimplemented in PndMvdPixelQATask, PndMvdStripQATask, and PndSciTRecoQATask.

◆ SetPointBranch()

void PndFairHitQATask::SetPointBranch ( std::string pointBranch )

inline

Definition at line 54 of file PndFairHitQATask.h.

References fPointBranchName.

54 { fPointBranchName = pointBranch; }

PndFairHitQATask::fPointBranchName

std::string fPointBranchName

Definition: PndFairHitQATask.h:92

◆ SetWorkdir()

void PndFairHitQATask::SetWorkdir ( TString path )

inline

only needed to give cdash the path to the stored pictures

Definition at line 51 of file PndFairHitQATask.h.

References fWorkdir.

◆ Test()

bool PndFairHitQATask::Test ( )

protected

Referenced by SetOutputPlotName().

Member Data Documentation

◆ fBoundaries

PndMeasurementBoundaries PndFairHitQATask::fBoundaries

protected

Definition at line 102 of file PndFairHitQATask.h.

◆ fHistos

std::map<std::string, TH1 *> PndFairHitQATask::fHistos

protected

Definition at line 104 of file PndFairHitQATask.h.

◆ fHitBranchName

std::string PndFairHitQATask::fHitBranchName

protected

Definition at line 91 of file PndFairHitQATask.h.

Referenced by SetHitBranch().

◆ fHits

TClonesArray* PndFairHitQATask::fHits = nullptr

protected

Definition at line 96 of file PndFairHitQATask.h.

◆ fMcPoints

TClonesArray* PndFairHitQATask::fMcPoints = nullptr

protected

Definition at line 95 of file PndFairHitQATask.h.

◆ fOutputPlotName

std::string PndFairHitQATask::fOutputPlotName {"ResolutionHistos.png"}

protected

Definition at line 93 of file PndFairHitQATask.h.

Referenced by SetOutputPlotName().

◆ fPointBranchName

std::string PndFairHitQATask::fPointBranchName

protected

Definition at line 92 of file PndFairHitQATask.h.

Referenced by SetPointBranch().

◆ fProperDifference

Bool_t PndFairHitQATask::fProperDifference = false

protected

if method CalculateResolutions worked

Definition at line 97 of file PndFairHitQATask.h.

◆ fSpatialDifference

TVector3 PndFairHitQATask::fSpatialDifference

protected

Definition at line 98 of file PndFairHitQATask.h.

◆ fTimeDifference

double PndFairHitQATask::fTimeDifference = -1.0

protected

Definition at line 99 of file PndFairHitQATask.h.

◆ fWorkdir

TString PndFairHitQATask::fWorkdir

protected

Definition at line 100 of file PndFairHitQATask.h.

Referenced by SetWorkdir().

The documentation for this class was generated from the following file:

PndFairHitQATask.h
