Base class for accessing PID detector information. More...

#include <PndPidDetectorInfo.h>

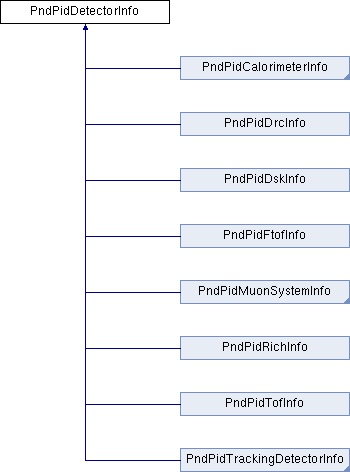

Inheritance diagram for PndPidDetectorInfo:

Public Member Functions
	PndPidDetectorInfo ()
	Default constructor. More...

virtual	~PndPidDetectorInfo ()

virtual Int_t	SetDetectorHits (FairRootManager *manager)=0
	Default destructor. More...

virtual Bool_t	PreprocessTracks (const Int_t, PndTrack *)
	Preprocess current track object. More...

virtual Bool_t	GetInfo (PndTrack track, PndPidCandidate pidCand)=0
	Include detector information in charged PidCandidate. More...

virtual void	GetNeutralInfo (Int_t, TClonesArray *)
	Include detector information in neutral PidCandidate. More...

virtual void	ActivateDebugNtuple (Bool_t debug_mode)
	Set debug mode of detector. More...

void	SetDetectorMode (Short_t detector_mode)

void	SetUsePropagator (Bool_t use_propagator)

void	SetPropagator (PndPropagator *propagator)

void	SetIdeal (Bool_t is_ideal)

void	SetPidHypo (Int_t pid_hyp)

void	SetVerbose (Int_t verbose)

void	SetCorrPar (PndPidCorrPar *pid_corr_par)

virtual Bool_t	SetParContainers (FairRuntimeDb *)

TNtuple *	GetDetCorr ()

Int_t	GetDetectorMode ()

void	Finish ()

virtual void	Reset ()

virtual void	Register ()

virtual Bool_t	Setup (FairRootManager , PndPropagator propagator, PndPidDetectorParams::DetectorParams *params)
	Setup detector info. More...

virtual Bool_t	Propagate (TVector3 pos, FairTrackParH helix, FairTrackParH res, Int_t pdg_code, Int_t direction=1)
	Call propagator to propagate track to detector. More...

virtual Bool_t	Propagate (std::string volume, FairTrackParH helix, FairTrackParH res, Int_t pdg_code)
	Call propagator to propagate track to detector. More...

Protected Member Functions
	ClassDef (PndPidDetectorInfo, 1)

Protected Attributes
Short_t	fDetMode = -1
	Detector Mode. More...

Bool_t	fUsePropagator = kFALSE
	kTRUE to use propagator like PndGeanePro. More...

PndPropagator *	fPropagator = nullptr

Bool_t	fIdeal = kFALSE
	Use MC information for ideal correlation. More...

Bool_t	fDebugMode = kTRUE
	kTRUE to fill debug ntuples More...

Int_t	fPidHyp = 0
	Particle Id hypothesis (pdg particle code) More...

Int_t	fVerbose = 0
	Verbosity level. More...

Float_t	fGLength = -1000

PndPidDetectorParams::DetectorParams *	fDetectorParams = nullptr

TNtuple *	fDetCorr = nullptr
	Debug ntuple. More...

PndPidCorrPar *	fCorrPar = new PndPidCorrPar()
	Correlation parameters. More...

Detailed Description

Base class for accessing PID detector information.

This class provides attributes and their setters that all detectors share. Through the function GetInfo() each detectors information is included in the PidCandidate. The specific implementation of GetInfo() varies for each detector. The same holds true for SetDetectorHits().

Author: Sarah Gaiser gaise.nosp@m.r@hi.nosp@m.skp.u.nosp@m.ni-b.nosp@m.onn.d.nosp@m.e, HISKP Bonn

Version: 1.0

Date: Jan 2021

Definition at line 45 of file PndPidDetectorInfo.h.

Constructor & Destructor Documentation

◆ PndPidDetectorInfo()

PndPidDetectorInfo::PndPidDetectorInfo ( )

Default constructor.

◆ ~PndPidDetectorInfo()

virtual PndPidDetectorInfo::~PndPidDetectorInfo ( )

inlinevirtual

Definition at line 52 of file PndPidDetectorInfo.h.

52 {};

Member Function Documentation

◆ ActivateDebugNtuple()

virtual void PndPidDetectorInfo::ActivateDebugNtuple ( Bool_t debug_mode )

inlinevirtual

Set debug mode of detector.

In the PID detector subclasses this function is reimplemented such that it includes the setup of the debug ntuples.

Reimplemented in PndPidCalorimeterInfo, PndPidEmcInfo, PndPidDrcInfo, PndPidDskInfo, PndPidFmdtInfo, PndPidFtofInfo, PndPidRichInfo, PndPidTofInfo, and PndPidMdtInfo.

Definition at line 92 of file PndPidDetectorInfo.h.

References PndPidDetectorParams::DetectorParams::debug_mode.

92 { fDebugMode = debug_mode; };

PndPidDetectorInfo::fDebugMode

Bool_t fDebugMode

kTRUE to fill debug ntuples

Definition: PndPidDetectorInfo.h:153

◆ ClassDef()

PndPidDetectorInfo::ClassDef	(	PndPidDetectorInfo	,
		1
	)

protected

◆ Finish()

void PndPidDetectorInfo::Finish ( )

◆ GetDetCorr()

TNtuple* PndPidDetectorInfo::GetDetCorr ( )

inline

Definition at line 102 of file PndPidDetectorInfo.h.

102 { return fDetCorr; };

PndPidDetectorInfo::fDetCorr

TNtuple * fDetCorr

Debug ntuple.

Definition: PndPidDetectorInfo.h:159

◆ GetDetectorMode()

Int_t PndPidDetectorInfo::GetDetectorMode ( )

inline

Definition at line 103 of file PndPidDetectorInfo.h.

103 { return fDetMode; };

PndPidDetectorInfo::fDetMode

Short_t fDetMode

Detector Mode.

Definition: PndPidDetectorInfo.h:149

◆ GetInfo()

virtual Bool_t PndPidDetectorInfo::GetInfo	(	PndTrack *	track,
		PndPidCandidate *	pidCand
	)

pure virtual

Include detector information in charged PidCandidate.

Correlate given track and detector hit. The specific implementation is given in the detector subclasses.

Parameters

track	One of the detected tracks in current event.
pidCand	PidCandidate belonging to track.

Returns: kTRUE if correlation successful.

Implemented in PndPidEmcInfo, PndPidCalorimeterInfo, PndBSPidCalorimeterInfo, PndPidFtsInfo, PndPidSttInfo, PndPidDrcInfo, PndPidDskInfo, PndPidFtofInfo, PndPidRichInfo, PndPidTofInfo, PndPidMvdInfo, PndPidFmdtInfo, PndPidMdtInfo, and PndPidGemInfo.

◆ GetNeutralInfo()

virtual void PndPidDetectorInfo::GetNeutralInfo	(	Int_t	,
		TClonesArray *
	)

inlinevirtual

Include detector information in neutral PidCandidate.

This function is re-implemented in PndPidCalorimeterInfo.

Reimplemented in PndPidCalorimeterInfo, PndPidEmcInfo, and PndBSPidCalorimeterInfo.

Definition at line 85 of file PndPidDetectorInfo.h.

85 {};

◆ PreprocessTracks()

virtual Bool_t PndPidDetectorInfo::PreprocessTracks	(	const Int_t	,
		PndTrack *
	)

inlinevirtual

Preprocess current track object.

Parameters

trackid	TrackId of current track.
track	Pointer to current track object.

Returns: kTRUE if correlation successful.

Reimplemented in PndPidEmcInfo, and PndBSPidCalorimeterInfo.

Definition at line 69 of file PndPidDetectorInfo.h.

69 {return kTRUE;};

◆ Propagate() [1/2]

virtual Bool_t PndPidDetectorInfo::Propagate	(	TVector3	pos,
		FairTrackParH *	helix,
		FairTrackParH *	res,
		Int_t	pdg_code,
		Int_t	direction = `1`
	)

virtual

Call propagator to propagate track to detector.

Parameters

pos	Best guess of hit position
helix	Incoming track
pdg_code	PDG code of the particle which is propagated
direction	If -1 propagate in backwards direction

◆ Propagate() [2/2]

virtual Bool_t PndPidDetectorInfo::Propagate	(	std::string	volume,
		FairTrackParH *	helix,
		FairTrackParH *	res,
		Int_t	pdg_code
	)

virtual

Call propagator to propagate track to detector.

Parameters

volume	Volume to which particle is propagated
helix	Incoming track
pdg_code	PDG code of the particle which is propagated

◆ Register()

virtual void PndPidDetectorInfo::Register ( )

inlinevirtual

Reimplemented in PndPidMuonSystemInfo.

Definition at line 108 of file PndPidDetectorInfo.h.

108 {};

◆ Reset()

virtual void PndPidDetectorInfo::Reset ( )

inlinevirtual

Reimplemented in PndPidCalorimeterInfo, PndPidEmcInfo, PndPidMuonSystemInfo, PndBSPidCalorimeterInfo, and PndPidMvdInfo.

Definition at line 107 of file PndPidDetectorInfo.h.

107 {};

◆ SetCorrPar()

void PndPidDetectorInfo::SetCorrPar ( PndPidCorrPar * pid_corr_par )

inline

Definition at line 99 of file PndPidDetectorInfo.h.

99 { fCorrPar = pid_corr_par; };

PndPidDetectorInfo::fCorrPar

PndPidCorrPar * fCorrPar

Correlation parameters.

Definition: PndPidDetectorInfo.h:160

◆ SetDetectorHits()

virtual Int_t PndPidDetectorInfo::SetDetectorHits ( FairRootManager * manager )

pure virtual

Default destructor.

Set detector hit TClonesArrays.

Fill detector hit TCAs and adjust detector mode. The specific implementation is given in the detector subclasses.

Parameters

manager Needed to get detector hit TCAs of event.

Returns: Adjusted detector mode.

Implemented in PndPidCalorimeterInfo, PndPidEmcInfo, PndPidMuonSystemInfo, PndBSPidCalorimeterInfo, PndPidFtsInfo, PndPidSttInfo, PndPidDrcInfo, PndPidDskInfo, PndPidFtofInfo, PndPidRichInfo, PndPidTofInfo, PndPidMvdInfo, and PndPidGemInfo.

◆ SetDetectorMode()

void PndPidDetectorInfo::SetDetectorMode ( Short_t detector_mode )

inline

Definition at line 93 of file PndPidDetectorInfo.h.

93 { fDetMode = detector_mode; };

PndPidDetectorInfo::fDetMode

Short_t fDetMode

Detector Mode.

Definition: PndPidDetectorInfo.h:149

◆ SetIdeal()

void PndPidDetectorInfo::SetIdeal ( Bool_t is_ideal )

inline

Definition at line 96 of file PndPidDetectorInfo.h.

96 { fIdeal = is_ideal; };

PndPidDetectorInfo::fIdeal

Bool_t fIdeal

Use MC information for ideal correlation.

Definition: PndPidDetectorInfo.h:152

◆ SetParContainers()

virtual Bool_t PndPidDetectorInfo::SetParContainers ( FairRuntimeDb * )

inlinevirtual

Reimplemented in PndBSPidCalorimeterInfo, PndPidCalorimeterInfo, PndPidEmcInfo, PndPidFtsInfo, and PndPidSttInfo.

Definition at line 100 of file PndPidDetectorInfo.h.

100 { return kTRUE; };

◆ SetPidHypo()

void PndPidDetectorInfo::SetPidHypo ( Int_t pid_hyp )

inline

Definition at line 97 of file PndPidDetectorInfo.h.

References PndPidDetectorParams::DetectorParams::pid_hyp.

97 { fPidHyp = pid_hyp; };

PndPidDetectorInfo::fPidHyp

Int_t fPidHyp

Particle Id hypothesis (pdg particle code)

Definition: PndPidDetectorInfo.h:154

◆ SetPropagator()

void PndPidDetectorInfo::SetPropagator ( PndPropagator * propagator )

inline

Definition at line 95 of file PndPidDetectorInfo.h.

95 { fPropagator = propagator; };

PndPidDetectorInfo::fPropagator

PndPropagator * fPropagator

Definition: PndPidDetectorInfo.h:151

◆ Setup()

virtual Bool_t PndPidDetectorInfo::Setup	(	FairRootManager *	,
		PndPropagator *	propagator,
		PndPidDetectorParams::DetectorParams *	params
	)

virtual

Setup detector info.

Parameters

manager	Needed to get all relevant TCAs of event.
propagator	Propagator to be used in track-hit correlation. If the propagator has already been specified it will not be replaced by calling Setup().
params	Set of detector and track parameters that is passed from PndPidCorrelator.

Returns: kTRUE if successful.

Reimplemented in PndPidCalorimeterInfo, PndPidEmcInfo, PndPidMuonSystemInfo, PndBSPidCalorimeterInfo, PndPidFtsInfo, PndPidSttInfo, PndPidDrcInfo, PndPidDskInfo, PndPidFtofInfo, PndPidRichInfo, PndPidTofInfo, PndPidMvdInfo, and PndPidTrackingDetectorInfo.

◆ SetUsePropagator()

void PndPidDetectorInfo::SetUsePropagator ( Bool_t use_propagator )

inline

Definition at line 94 of file PndPidDetectorInfo.h.

References PndPidDetectorParams::DetectorParams::use_propagator.

94 { fUsePropagator = use_propagator; };

PndPidDetectorInfo::fUsePropagator

Bool_t fUsePropagator

kTRUE to use propagator like PndGeanePro.

Definition: PndPidDetectorInfo.h:150

◆ SetVerbose()

void PndPidDetectorInfo::SetVerbose ( Int_t verbose )

inline

Definition at line 98 of file PndPidDetectorInfo.h.

98 { fVerbose = verbose; };

PndPidDetectorInfo::fVerbose

Int_t fVerbose

Verbosity level.

Definition: PndPidDetectorInfo.h:155

Member Data Documentation

◆ fCorrPar

PndPidCorrPar* PndPidDetectorInfo::fCorrPar = new PndPidCorrPar()

protected

Correlation parameters.

Definition at line 160 of file PndPidDetectorInfo.h.

◆ fDebugMode

Bool_t PndPidDetectorInfo::fDebugMode = kTRUE

protected

kTRUE to fill debug ntuples

Definition at line 153 of file PndPidDetectorInfo.h.

◆ fDetCorr

TNtuple* PndPidDetectorInfo::fDetCorr = nullptr

protected

Debug ntuple.

Definition at line 159 of file PndPidDetectorInfo.h.

◆ fDetectorParams

PndPidDetectorParams::DetectorParams* PndPidDetectorInfo::fDetectorParams = nullptr

protected

Definition at line 157 of file PndPidDetectorInfo.h.

◆ fDetMode

Short_t PndPidDetectorInfo::fDetMode = -1

protected

Detector Mode.

-1: not set
0: don't include detector
1: * for MVD, STT, FTS - use ...Point
- other - empty
2: use ...Hit, DskParticle, EmcCluster
3: for EMC - use EmcBumps

Definition at line 149 of file PndPidDetectorInfo.h.

◆ fGLength

Float_t PndPidDetectorInfo::fGLength = -1000

protected

Definition at line 156 of file PndPidDetectorInfo.h.

◆ fIdeal

Bool_t PndPidDetectorInfo::fIdeal = kFALSE

protected

Use MC information for ideal correlation.

Definition at line 152 of file PndPidDetectorInfo.h.

◆ fPidHyp

Int_t PndPidDetectorInfo::fPidHyp = 0

protected

Particle Id hypothesis (pdg particle code)

Definition at line 154 of file PndPidDetectorInfo.h.

◆ fPropagator

PndPropagator* PndPidDetectorInfo::fPropagator = nullptr

protected

Definition at line 151 of file PndPidDetectorInfo.h.

◆ fUsePropagator

Bool_t PndPidDetectorInfo::fUsePropagator = kFALSE

protected

kTRUE to use propagator like PndGeanePro.

Definition at line 150 of file PndPidDetectorInfo.h.

◆ fVerbose

Int_t PndPidDetectorInfo::fVerbose = 0

protected

Verbosity level.

Definition at line 155 of file PndPidDetectorInfo.h.

The documentation for this class was generated from the following file:

PndPidDetectorInfo.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ PndPidDetectorInfo()

◆ ~PndPidDetectorInfo()

Member Function Documentation

◆ ActivateDebugNtuple()

◆ ClassDef()

◆ Finish()

◆ GetDetCorr()

◆ GetDetectorMode()

◆ GetInfo()

◆ GetNeutralInfo()

◆ PreprocessTracks()

◆ Propagate() [1/2]

◆ Propagate() [2/2]

◆ Register()

◆ Reset()

◆ SetCorrPar()

◆ SetDetectorHits()

◆ SetDetectorMode()

◆ SetIdeal()

◆ SetParContainers()

◆ SetPidHypo()

◆ SetPropagator()

◆ Setup()

◆ SetUsePropagator()

◆ SetVerbose()

Member Data Documentation

◆ fCorrPar

◆ fDebugMode

◆ fDetCorr

◆ fDetectorParams

◆ fDetMode

◆ fGLength

◆ fIdeal

◆ fPidHyp

◆ fPropagator

◆ fUsePropagator

◆ fVerbose
