Base Process class. More...

#include <PndProcess.h>

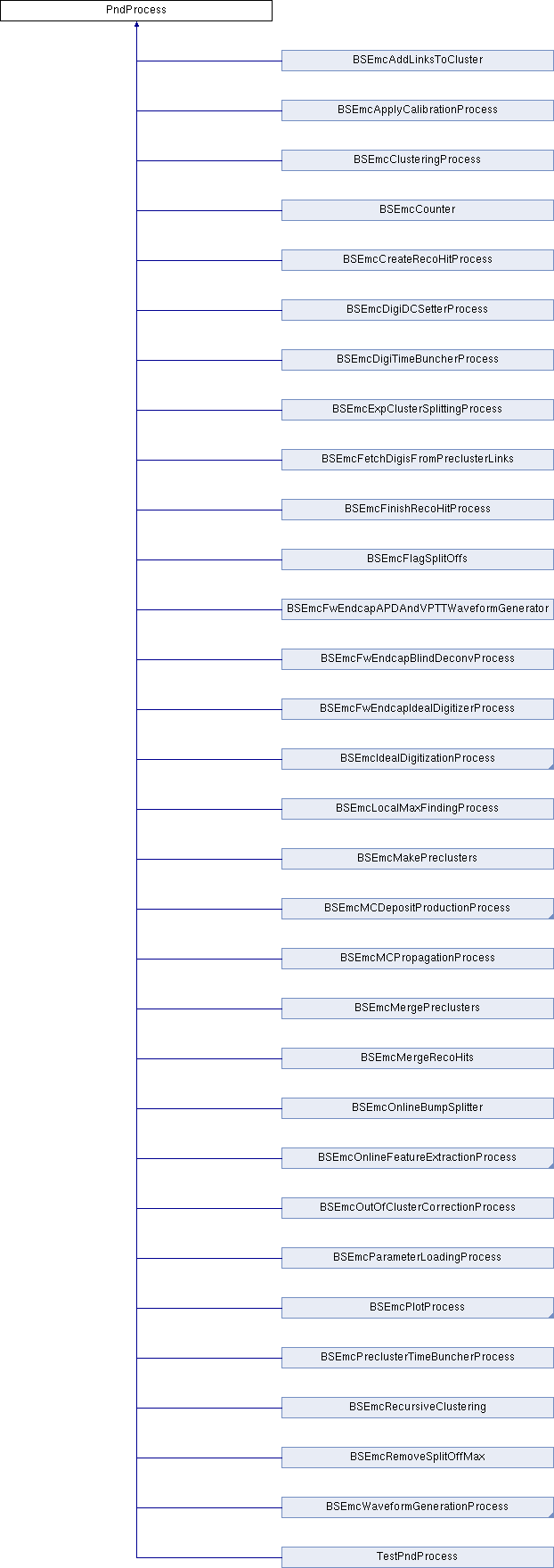

Inheritance diagram for PndProcess:

Public Member Functions
	PndProcess ()

	PndProcess (const std::string &t_processname)

virtual	~PndProcess ()

virtual void	SetDetectorName (const std::string &t_detectorname)
	Set the Detector name. Important, as most EmcParameter need to know for which detector they need to be fetched (each Emc Subdetector has its own set of parameters) More...

const std::vector< std::string > &	GetListOfRequiredParameters () const
	Get the List Of Required Parameters. More...

virtual void	RequestDataContainer (PndContainerRegister *)
	Pass the container register to the process, and get the processes container requirements. More...

virtual void	GetDataContainer (PndContainerRegister *)
	Pass the container register to the process, and set the processes container requirements. More...

virtual void	SetupParameters (const PndParameterRegister *t_parameter)=0
	Fetch all parameters from the PndParameterRegister. More...

virtual void	PreProcess ()
	PreProcess() is called before the actual Process() call in each event. More...

virtual void	Process ()=0
	The actual data transformation (digitizing, clustering, etc.) should be defined here. More...

virtual void	PostProcess ()
	Immediately after calling Process() PostProcess() is called for cleanup of internal process data, or if not needed, to end the time and memory increase measurement started by PreProcess() More...

virtual void	TearDown ()
	Last actions at the end of the run. More...

Protected Attributes
std::vector< std::string >	fParameterList {}
	Parameter names required by this PndProcess. Needs to be populated in derived class. More...

std::string	fDetectorName {""}
	Set Detector name this PndProcess transforms data for. Required for example by EMC Processes to fetch right parameters. More...

std::string	fProcessName {"PndProcess"}
	Name of current PndProcess (for debugging) More...

TStopwatch	fTimer {}
	Timer to monitor Process() time. More...

Double_t	fTotalTime {0}
	Time taken by this Process' Process() More...

ProcInfo_t	fProcInfo
	Helper to access cpu process Memory Info. More...

Long_t	fLastMemSize

Detailed Description

Base Process class.

Base class for Processes. Processes are intended to help separate data and parameter handling from the implementation of algorithms

Author: Ben Salisbury salis.nosp@m.bury.nosp@m.@hisk.nosp@m.p.un.nosp@m.i-bon.nosp@m.n.de, HISKP Bonn

Date: 2021-02

Definition at line 24 of file PndProcess.h.

Constructor & Destructor Documentation

◆ PndProcess() [1/2]

PndProcess::PndProcess ( )

inline

Definition at line 26 of file PndProcess.h.

26 {}

◆ PndProcess() [2/2]

PndProcess::PndProcess ( const std::string & t_processname )

inline

Definition at line 27 of file PndProcess.h.

27 : fProcessName(t_processname) {}

PndProcess::fProcessName

std::string fProcessName

Name of current PndProcess (for debugging)

Definition: PndProcess.h:107

◆ ~PndProcess()

virtual PndProcess::~PndProcess ( )

inlinevirtual

Definition at line 28 of file PndProcess.h.

28 {}

Member Function Documentation

◆ GetDataContainer()

virtual void PndProcess::GetDataContainer ( PndContainerRegister * )

inlinevirtual

Pass the container register to the process, and set the processes container requirements.

Parameters

t_register

Reimplemented in BSEmcMCDepositProductionProcess, BSEmcExpClusterSplittingProcess, BSEmcOnlineBumpSplitter, BSEmcLocalMaxFindingProcess, BSEmcRemoveSplitOffMax, BSEmcClusteringProcess, BSEmcMergePreclusters, BSEmcMakePreclusters, BSEmcPlotProcess, BSEmcMCPropagationProcess, BSEmcRecursiveClustering, BSEmcCreateRecoHitProcess, BSEmcWaveformGenerationProcess, BSEmcFwEndcapBlindDeconvProcess, BSEmcAddLinksToCluster, BSEmcFwEndcapAPDAndVPTTWaveformGenerator, BSEmcOnlineFeatureExtractionProcess, BSEmcFetchDigisFromPreclusterLinks, BSEmcFwEndcapIdealDigitizerProcess, BSEmcDigiTimeBuncherProcess, BSEmcPreclusterTimeBuncherProcess, BSEmcFinishRecoHitProcess, BSEmcOutOfClusterCorrectionProcess, BSEmcIdealDigitizationProcess, BSEmcApplyCalibrationProcess, BSEmcDigiDCSetterProcess, BSEmcPlotBarrelFwEndcapOverlap, BSEmcPlotMultiHitCluster, BSEmcMergeRecoHits, BSEmcPlotRecoHitVsMC, BSEmcFlagSplitOffs, TestPndProcess, BSEmcPlotAllRecoHits, BSEmcPlotCluster, BSEmcPlotWaveforms, BSEmcPlotDigis, BSEmcPlotMCDeposits, BSEmcPlotMCPoints, BSEmcPlotRecoHits, and BSEmcPlotSubCluster.

Definition at line 56 of file PndProcess.h.

References SetupParameters().

56 {};

◆ GetListOfRequiredParameters()

const std::vector<std::string>& PndProcess::GetListOfRequiredParameters ( ) const

inline

Get the List Of Required Parameters.

Returns: const std::vector<std::string>&

Definition at line 42 of file PndProcess.h.

References fParameterList.

42 { return fParameterList; }

PndProcess::fParameterList

std::vector< std::string > fParameterList

Parameter names required by this PndProcess. Needs to be populated in derived class.

Definition: PndProcess.h:105

◆ PostProcess()

virtual void PndProcess::PostProcess ( )

inlinevirtual

Immediately after calling Process() PostProcess() is called for cleanup of internal process data, or if not needed, to end the time and memory increase measurement started by PreProcess()

Reimplemented in BSEmcOnlineBumpSplitter, and TestPndProcess.

Definition at line 87 of file PndProcess.h.

References fDetectorName, fLastMemSize, fProcessName, fProcInfo, fTimer, and fTotalTime.

   {
     fTimer.Stop();
     fTotalTime += fTimer.RealTime();
     gSystem->GetProcInfo(&fProcInfo);
     LOG_IF(debug1, fProcInfo.fMemResident - fLastMemSize != 0) << "PndProcess" << fDetectorName << " Process() Memory increase after Process " << fProcessName << ". Increase by "
                                                                << fProcInfo.fMemResident - fLastMemSize << " KB. Total memory used is: " << fProcInfo.fMemResident << " KB.";

     fLastMemSize = fProcInfo.fMemResident;
   };

◆ PreProcess()

virtual void PndProcess::PreProcess ( )

inlinevirtual

PreProcess() is called before the actual Process() call in each event.

Intended for preprocess setup calls, e.g. for reseting internal process data, or, if not needed, to monitor processing time and memory increase

Reimplemented in TestPndProcess.

Definition at line 69 of file PndProcess.h.

References fLastMemSize, fProcInfo, fTimer, and Process().

   {
     gSystem->GetProcInfo(&fProcInfo);
     fLastMemSize = fProcInfo.fMemResident;
     fTimer.Reset();
     fTimer.Start();
   };

◆ Process()

virtual void PndProcess::Process ( )

pure virtual

The actual data transformation (digitizing, clustering, etc.) should be defined here.

Implemented in BSEmcMCDepositProductionProcess, BSEmcExpClusterSplittingProcess, BSEmcOnlineBumpSplitter, BSEmcLocalMaxFindingProcess, BSEmcRemoveSplitOffMax, BSEmcClusteringProcess, BSEmcMergePreclusters, BSEmcPlotProcess, BSEmcMakePreclusters, BSEmcWaveformGenerationProcess, BSEmcMCPropagationProcess, BSEmcRecursiveClustering, BSEmcCreateRecoHitProcess, BSEmcFwEndcapBlindDeconvProcess, BSEmcAddLinksToCluster, BSEmcOnlineFeatureExtractionProcess, BSEmcFwEndcapAPDAndVPTTWaveformGenerator, BSEmcFwEndcapIdealDigitizerProcess, BSEmcFetchDigisFromPreclusterLinks, BSEmcDigiTimeBuncherProcess, BSEmcPreclusterTimeBuncherProcess, BSEmcIdealDigitizationProcess, BSEmcApplyCalibrationProcess, BSEmcFinishRecoHitProcess, BSEmcOutOfClusterCorrectionProcess, BSEmcDigiDCSetterProcess, BSEmcPlotBarrelFwEndcapOverlap, BSEmcPlotMultiHitCluster, BSEmcPlotRecoHitVsMC, BSEmcMergeRecoHits, BSEmcFlagSplitOffs, TestPndProcess, BSEmcParameterLoadingProcess, BSEmcPlotAllRecoHits, BSEmcPlotCluster, BSEmcPlotWaveforms, BSEmcPlotDigis, BSEmcPlotMCDeposits, BSEmcPlotMCPoints, BSEmcPlotRecoHits, BSEmcPlotSubCluster, and BSEmcCounter.

Referenced by PreProcess().

◆ RequestDataContainer()

virtual void PndProcess::RequestDataContainer ( PndContainerRegister * )

inlinevirtual

Pass the container register to the process, and get the processes container requirements.

Parameters

t_register

Reimplemented in BSEmcMCDepositProductionProcess, BSEmcExpClusterSplittingProcess, BSEmcOnlineBumpSplitter, BSEmcLocalMaxFindingProcess, BSEmcRemoveSplitOffMax, BSEmcClusteringProcess, BSEmcMergePreclusters, BSEmcMakePreclusters, BSEmcPlotProcess, BSEmcMCPropagationProcess, BSEmcRecursiveClustering, BSEmcCreateRecoHitProcess, BSEmcWaveformGenerationProcess, BSEmcFwEndcapBlindDeconvProcess, BSEmcAddLinksToCluster, BSEmcFwEndcapAPDAndVPTTWaveformGenerator, BSEmcOnlineFeatureExtractionProcess, BSEmcFetchDigisFromPreclusterLinks, BSEmcFwEndcapIdealDigitizerProcess, BSEmcDigiTimeBuncherProcess, BSEmcPreclusterTimeBuncherProcess, BSEmcFinishRecoHitProcess, BSEmcOutOfClusterCorrectionProcess, BSEmcIdealDigitizationProcess, BSEmcApplyCalibrationProcess, BSEmcDigiDCSetterProcess, BSEmcPlotBarrelFwEndcapOverlap, BSEmcPlotMultiHitCluster, BSEmcMergeRecoHits, BSEmcPlotRecoHitVsMC, BSEmcFlagSplitOffs, TestPndProcess, BSEmcPlotAllRecoHits, BSEmcPlotCluster, BSEmcPlotWaveforms, BSEmcPlotDigis, BSEmcPlotMCDeposits, BSEmcPlotMCPoints, BSEmcPlotRecoHits, and BSEmcPlotSubCluster.

Definition at line 49 of file PndProcess.h.

49 {};

◆ SetDetectorName()

virtual void PndProcess::SetDetectorName ( const std::string & t_detectorname )

inlinevirtual

Set the Detector name. Important, as most EmcParameter need to know for which detector they need to be fetched (each Emc Subdetector has its own set of parameters)

Parameters

t_detectorname

Reimplemented in BSEmcMCDepositProductionProcess, BSEmcExpClusterSplittingProcess, BSEmcOnlineBumpSplitter, BSEmcLocalMaxFindingProcess, BSEmcRemoveSplitOffMax, BSEmcClusteringProcess, BSEmcMergePreclusters, BSEmcMakePreclusters, BSEmcWaveformGenerationProcess, BSEmcPlotProcess, BSEmcMCPropagationProcess, BSEmcRecursiveClustering, BSEmcCreateRecoHitProcess, BSEmcFwEndcapBlindDeconvProcess, BSEmcAddLinksToCluster, BSEmcBwEndcapOnlineFeatureExtraction, BSEmcFwEndcapIdealDigitizerProcess, BSEmcFwEndcapWaveformGeneration, BSEmcFinishRecoHitProcess, BSEmcOnlineFeatureExtractionProcess, BSEmcFwEndcapAPDAndVPTTWaveformGenerator, BSEmcFetchDigisFromPreclusterLinks, BSEmcIdealDigitizationProcess, BSEmcFwEndcapCosmicWaveformGeneration, BSEmcApplyCalibrationProcess, BSEmcDigiTimeBuncherProcess, BSEmcPreclusterTimeBuncherProcess, BSEmcFwEndcapOnlineFeatureExtraction, BSEmcDigiDCSetterProcess, BSEmcOutOfClusterCorrectionProcess, BSEmcParameterLoadingProcess, BSEmcMergeRecoHits, and BSEmcFlagSplitOffs.

Definition at line 35 of file PndProcess.h.

References fDetectorName.

35 { fDetectorName = t_detectorname; }

PndProcess::fDetectorName

std::string fDetectorName

Set Detector name this PndProcess transforms data for. Required for example by EMC Processes to fetch...

Definition: PndProcess.h:106

◆ SetupParameters()

virtual void PndProcess::SetupParameters ( const PndParameterRegister * t_parameter )

pure virtual

Fetch all parameters from the PndParameterRegister.

Parameters

t_parameter

Implemented in BSEmcMCDepositProductionProcess, BSEmcExpClusterSplittingProcess, BSEmcOnlineBumpSplitter, BSEmcLocalMaxFindingProcess, BSEmcRemoveSplitOffMax, BSEmcClusteringProcess, BSEmcMergePreclusters, BSEmcMakePreclusters, BSEmcPlotProcess, BSEmcWaveformGenerationProcess, BSEmcRecursiveClustering, BSEmcBwEndcapOnlineFeatureExtraction, BSEmcMCPropagationProcess, BSEmcFwEndcapWaveformGeneration, BSEmcCreateRecoHitProcess, BSEmcFwEndcapBlindDeconvProcess, BSEmcAddLinksToCluster, BSEmcFwEndcapCosmicWaveformGeneration, BSEmcOnlineFeatureExtractionProcess, BSEmcFwEndcapOnlineFeatureExtraction, BSEmcFetchDigisFromPreclusterLinks, BSEmcFwEndcapIdealDigitizerProcess, BSEmcFwEndcapAPDAndVPTTWaveformGenerator, BSEmcDigiTimeBuncherProcess, BSEmcPreclusterTimeBuncherProcess, BSEmcIdealDigitizationProcess, BSEmcApplyCalibrationProcess, BSEmcDigiDCSetterProcess, BSEmcFinishRecoHitProcess, BSEmcOutOfClusterCorrectionProcess, BSEmcCounter, BSEmcBarrelZDependentMCDepositProductionProcess, BSEmcParameterLoadingProcess, BSEmcMergeRecoHits, BSEmcFlagSplitOffs, and TestPndProcess.

Referenced by GetDataContainer().

◆ TearDown()

virtual void PndProcess::TearDown ( )

inlinevirtual

Last actions at the end of the run.

Reimplemented in TestPndProcess.

Definition at line 102 of file PndProcess.h.

References fDetectorName, fProcessName, and fTotalTime.

102 { LOG(debug) << fProcessName << " - " << fDetectorName << " took " << fTotalTime << " s processing time."; };

PndProcess::fDetectorName

std::string fDetectorName

Set Detector name this PndProcess transforms data for. Required for example by EMC Processes to fetch...

Definition: PndProcess.h:106

PndProcess::fTotalTime

Double_t fTotalTime

Time taken by this Process' Process()

Definition: PndProcess.h:109

PndProcess::fProcessName

std::string fProcessName

Name of current PndProcess (for debugging)

Definition: PndProcess.h:107

Member Data Documentation

◆ fDetectorName

std::string PndProcess::fDetectorName {""}

protected

Set Detector name this PndProcess transforms data for. Required for example by EMC Processes to fetch right parameters.

Definition at line 106 of file PndProcess.h.

Referenced by PostProcess(), SetDetectorName(), and TearDown().

◆ fLastMemSize

Long_t PndProcess::fLastMemSize

protected

Value containing the memory footprint of the cpu process before the Process() call of this PndProcess, to be able to flag if during Process() used memory increased

Definition at line 111 of file PndProcess.h.

Referenced by PostProcess(), and PreProcess().

◆ fParameterList

std::vector<std::string> PndProcess::fParameterList {}

protected

Parameter names required by this PndProcess. Needs to be populated in derived class.

Definition at line 105 of file PndProcess.h.

Referenced by GetListOfRequiredParameters().

◆ fProcessName

std::string PndProcess::fProcessName {"PndProcess"}

protected

Name of current PndProcess (for debugging)

Definition at line 107 of file PndProcess.h.

Referenced by PostProcess(), and TearDown().

◆ fProcInfo

ProcInfo_t PndProcess::fProcInfo

protected

Helper to access cpu process Memory Info.

Definition at line 110 of file PndProcess.h.

Referenced by PostProcess(), and PreProcess().

◆ fTimer

TStopwatch PndProcess::fTimer {}

protected

Timer to monitor Process() time.

Definition at line 108 of file PndProcess.h.

Referenced by PostProcess(), and PreProcess().

◆ fTotalTime

Double_t PndProcess::fTotalTime {0}

protected

Time taken by this Process' Process()

Definition at line 109 of file PndProcess.h.

Referenced by PostProcess(), and TearDown().

The documentation for this class was generated from the following file:

PndProcess.h
