PndSdsDigi Class Reference

Base class for Digi information. More...

#include <PndSdsDigi.h>

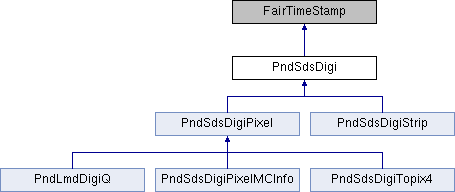

Inheritance diagram for PndSdsDigi:

Public Member Functions
	PndSdsDigi ()
	PndSdsDigi (std::vector< Int_t > index, Int_t detID, Int_t sensorID, Int_t fe, Double_t charge, Double_t timestamp=-1)
	PndSdsDigi (Int_t index, Int_t detID, Int_t fSensorID, Int_t fe, Double_t charge, Double_t timestamp=-1)
virtual	~PndSdsDigi ()
Int_t	GetFE () const
Int_t	GetSensorID () const
Double_t	GetCharge () const
Int_t	GetDetID () const
std::vector< Int_t >	GetIndices () const
Int_t	GetIndex (int i=0) const
Int_t	GetNIndices () const
virtual void	AddIndex (int index)
virtual void	AddIndex (std::vector< Int_t > index)
void	SetCharge (double charge)
void	AddCharge (double charge)
virtual bool	operator< (const PndSdsDigi &myDigi) const
virtual void	Print ()
template<class Archive >
void	serialize (Archive &ar, const unsigned int version)

Protected Member Functions
	ClassDef (PndSdsDigi, 4)

Protected Attributes
std::vector< Int_t >	fIndex
Int_t	fDetID
Int_t	fSensorID
Int_t	fFE
Double_t	fCharge

Friends
class	boost::serialization::access
std::ostream &	operator<< (std::ostream &out, PndSdsDigi &digi)

Detailed Description

Base class for Digi information.

PndSdsDigi.h

Author

T.Stockmanns t.sto.nosp@m.ckma.nosp@m.nns@f.nosp@m.z-ju.nosp@m.elich.nosp@m..de

Definition at line 31 of file PndSdsDigi.h.

Constructor & Destructor Documentation

PndSdsDigi() [1/3]

PndSdsDigi::PndSdsDigi

(

)

PndSdsDigi() [2/3]

PndSdsDigi::PndSdsDigi	(	std::vector< Int_t >	index,
		Int_t	detID,
		Int_t	sensorID,
		Int_t	fe,
		Double_t	charge,
		Double_t	timestamp = -1
	)

PndSdsDigi() [3/3]

PndSdsDigi::PndSdsDigi	(	Int_t	index,
		Int_t	detID,
		Int_t	fSensorID,
		Int_t	fe,
		Double_t	charge,
		Double_t	timestamp = -1
	)

constructor

Parameters

index	position of PndSdsMCPoint in TClonesArray
detID	detector ID (from/for CbmPoint/Hit)
detName	geoH->GetID(gGeoManager->GetPath()) information
fe	front end ID
charge	deposited charge in electrons

~PndSdsDigi()

virtual PndSdsDigi::~PndSdsDigi ( )

inlinevirtual

Definition at line 55 of file PndSdsDigi.h.

{};

Member Function Documentation

AddCharge()

void PndSdsDigi::AddCharge ( double  charge )

inline

Definition at line 78 of file PndSdsDigi.h.

References fCharge.

{ fCharge += charge; }

AddIndex() [1/2]

virtual void PndSdsDigi::AddIndex ( int  index )

inlinevirtual

Definition at line 66 of file PndSdsDigi.h.

References fDetID, and fIndex.

  {
    fIndex.push_back(index);
    AddLink(FairLink(fDetID, index));
  }

AddIndex() [2/2]

virtual void PndSdsDigi::AddIndex ( std::vector< Int_t >  index )

inlinevirtual

Definition at line 72 of file PndSdsDigi.h.

References fDetID, and fIndex.

  {
    fIndex = index;
    AddLinks(FairMultiLinkedData(fDetID, index));
  }

ClassDef()

PndSdsDigi::ClassDef ( PndSdsDigi  , 4    )

protected

GetCharge()

Double_t PndSdsDigi::GetCharge ( ) const

inline

Definition at line 60 of file PndSdsDigi.h.

References fCharge.

Referenced by PndSdsDigiStrip::Print().

{ return fCharge; }

GetDetID()

Int_t PndSdsDigi::GetDetID ( ) const

inline

Definition at line 61 of file PndSdsDigi.h.

References fDetID.

Referenced by PndSdsDigiStrip::operator<(), PndSdsDigiPixel::operator<(), operator<(), PndSdsDigiPixel::operator>(), and PndSdsDigiStrip::Print().

{ return fDetID; }

GetFE()

Int_t PndSdsDigi::GetFE ( ) const

inline

Definition at line 57 of file PndSdsDigi.h.

References fFE.

Referenced by PndSdsDigiPixel::equal(), PndSdsDigiStrip::operator<(), PndSdsDigiPixel::operator<(), operator<(), PndSdsDigiPixel::operator==(), PndSdsDigiPixel::operator>(), and PndSdsDigiStrip::Print().

{ return fFE; }

GetIndex()

Int_t PndSdsDigi::GetIndex ( int  i = 0 ) const

inline

Definition at line 63 of file PndSdsDigi.h.

References fIndex, and i.

{ return fIndex[i]; }

GetIndices()

std::vector<Int_t> PndSdsDigi::GetIndices ( ) const

inline

Definition at line 62 of file PndSdsDigi.h.

References fIndex.

Referenced by PndSdsDigiStrip::Print().

{ return fIndex; }

GetNIndices()

Int_t PndSdsDigi::GetNIndices ( ) const

inline

Definition at line 64 of file PndSdsDigi.h.

References fIndex.

{ return fIndex.size(); }

GetSensorID()

Int_t PndSdsDigi::GetSensorID ( ) const

inline

Definition at line 59 of file PndSdsDigi.h.

References fSensorID.

Referenced by PndSdsDigiPixel::equal(), PndSdsDigiStrip::operator<(), PndSdsDigiPixel::operator<(), operator<(), PndSdsDigiPixel::operator==(), PndSdsDigiPixel::operator>(), and PndSdsDigiStrip::Print().

{ return fSensorID; }

operator<()

virtual bool PndSdsDigi::operator< ( const PndSdsDigi &  myDigi ) const

inlinevirtual

Definition at line 80 of file PndSdsDigi.h.

References fDetID, fFE, GetDetID(), GetFE(), and GetSensorID().

  {
    if (fDetID < myDigi.GetDetID())
      return true;
    else if (fDetID > myDigi.GetDetID())
      return false;
    if (fSensorID < myDigi.GetSensorID())
      return true;
    else if (fSensorID > myDigi.GetSensorID())
      return false;
    if (fFE < myDigi.GetFE())
      return true;
    else if (fFE > myDigi.GetFE())
      return false;
    return false;
  }

Print()

virtual void PndSdsDigi::Print ( )

inlinevirtual

Reimplemented in PndSdsDigiTopix4, PndLmdDigiQ, and PndSdsDigiPixel.

Definition at line 97 of file PndSdsDigi.h.

{ std::cout << *this; }

serialize()

template<class Archive >

void PndSdsDigi::serialize ( Archive &  ar, const unsigned int  version  )

inline

Definition at line 101 of file PndSdsDigi.h.

References fCharge, fDetID, fFE, and fSensorID.

  {
    boost::serialization::void_cast_register<PndSdsDigi, FairTimeStamp>();

    ar &boost::serialization::base_object<FairTimeStamp>(*this);
    ar &fDetID;
    ar &fSensorID;
    ar &fFE;
    ar &fCharge;
  }

SetCharge()

void PndSdsDigi::SetCharge ( double  charge )

inline

Definition at line 77 of file PndSdsDigi.h.

References fCharge.

{ fCharge = charge; }

Friends And Related Function Documentation

boost::serialization::access

friend class boost::serialization::access

friend

Definition at line 115 of file PndSdsDigi.h.

operator<<

std::ostream& operator<< ( std::ostream &  out, PndSdsDigi &  digi  )

friend

Definition at line 32 of file PndSdsDigi.h.

  {
    out << "PndSds Digi in sensor: " << digi.GetSensorID() << " FE: " << digi.GetFE() << " "
        << " charge: " << digi.GetCharge() << " e"
        << " timestamp: " << digi.GetTimeStamp() << ", from Point(s): ";
    std::vector<Int_t> indices = digi.GetIndices();
    for (unsigned int i = 0; i < indices.size(); i++) {
      std::cout << digi.GetIndex(i) << " " << std::endl;
    }
    return out;
  }

Member Data Documentation

fCharge

Double_t PndSdsDigi::fCharge

protected

Definition at line 122 of file PndSdsDigi.h.

Referenced by AddCharge(), GetCharge(), serialize(), and SetCharge().

fDetID

Int_t PndSdsDigi::fDetID

protected

Definition at line 119 of file PndSdsDigi.h.

Referenced by AddIndex(), GetDetID(), PndSdsDigiStrip::operator<(), PndSdsDigiPixel::operator<(), operator<(), PndSdsDigiPixel::operator>(), and serialize().

fFE

Int_t PndSdsDigi::fFE

protected

Definition at line 121 of file PndSdsDigi.h.

Referenced by PndSdsDigiPixel::equal(), GetFE(), PndSdsDigiStrip::operator<(), PndSdsDigiPixel::operator<(), operator<(), PndSdsDigiPixel::operator==(), PndSdsDigiPixel::operator>(), and serialize().

fIndex

std::vector<Int_t> PndSdsDigi::fIndex

protected

Definition at line 118 of file PndSdsDigi.h.

Referenced by AddIndex(), GetIndex(), GetIndices(), and GetNIndices().

fSensorID

Int_t PndSdsDigi::fSensorID

protected

Definition at line 120 of file PndSdsDigi.h.

Referenced by PndSdsDigiPixel::equal(), GetSensorID(), PndSdsDigiStrip::operator<(), PndSdsDigiPixel::operator<(), PndSdsDigiPixel::operator==(), PndSdsDigiPixel::operator>(), and serialize().

---

The documentation for this class was generated from the following file:

• PndSdsDigi.h
