BSEmcMCDepositToTimebasedWaveforms< ParSet > Class Template Referenceabstract
Emc » EmcBase

Taks to create waveforms from deposits. More...

#include <BSEmcMCDepositToTimebasedWaveforms.h>

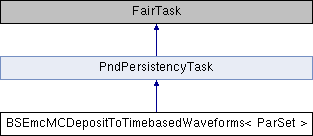

Inheritance diagram for BSEmcMCDepositToTimebasedWaveforms< ParSet >:
PndPersistencyTask

Public Member Functions

 BSEmcMCDepositToTimebasedWaveforms (const std::string &t_detectorname, Bool_t t_storewaves=kTRUE)

virtual ~BSEmcMCDepositToTimebasedWaveforms ()

virtual InitStatus Init ()
 Init Task. More...

virtual void Exec (Option_t *)
 Runs the task. More...

void RunTimebased (Bool_t t_timebased=kTRUE)

void SetSimulator (BSEmcAbsWaveformSimulator *t_simulator)

void SetStorageOfData (Bool_t t_storeWaves=kTRUE)

void StoreDataClass (Bool_t t_storeData=kTRUE)
 Method to specify whether waveforms are stored or not. More...

void SetMCDepositBranchName (const TString &t_branchName)

void SetWaveformBranchName (const TString &t_branchName)

void SetWaveformDataBranchName (const TString &t_branchName)

void SetPhotonStatisticParName (const std::string &t_photonStatParName)

void SetWaveformGenParName (const std::string &t_waveformGenParName)

- Public Member Functions inherited from PndPersistencyTask
 PndPersistencyTask ()

 PndPersistencyTask (const char *name, Int_t iVerbose=1)

virtual ~PndPersistencyTask ()

void SetPersistency (Bool_t val=kTRUE)

Bool_t GetPersistency ()


Protected Member Functions

virtual void SetParContainers ()

virtual void SetupSimulator ()=0

 ClassDef (BSEmcMCDepositToTimebasedWaveforms, 2)


Protected Attributes

TString fDetectorName {""}

TString fMCDepositBranchName {""}

TString fWaveformBranchName {""}

TString fWaveformDataBranchName {""}

PndTCAConstContainer< BSEmcMCDeposit > fMCDepositArray {}

BSEmcWaveformBuffer * fWaveformBuffer {nullptr}

Bool_t fStoreDataClass {kFALSE}

Bool_t fActivateBuffering {kFALSE}

std::string fPhotonStatisticParName {""}

BSEmcDigiPar * fPhotonStatisticPar {nullptr}

std::string fWaveformGenParName {""}

ParSet * fDigiPar {nullptr}
 Digitisation parameter container. More...

Bool_t fUse_photon_statistic {kFALSE}

Double_t fNPhotoElectronsPerMeV {0}

Double_t fExcessNoiseFactor {0}

Double_t fOverlapTime {0}

BSEmcAbsWaveformSimulator * fSimulator {nullptr}


Detailed Description

template<class ParSet>
class BSEmcMCDepositToTimebasedWaveforms< ParSet >

Taks to create waveforms from deposits.

This is an alternative to PndEmcDepositsToWaveform, which despite its name could be used for all the EMC, not just FwEndcap.

Author
Dima Melnichuk - adaption for PANDA
Philipp Mahlberg mahlb.nosp@m.erg@.nosp@m.hiskp.nosp@m..uni.nosp@m.-bonn.nosp@m..de - integration in timebased simulation concept

Definition at line 49 of file BSEmcMCDepositToTimebasedWaveforms.h.

Constructor & Destructor Documentation

◆ BSEmcMCDepositToTimebasedWaveforms()

template<class ParSet>
BSEmcMCDepositToTimebasedWaveforms< ParSet >::BSEmcMCDepositToTimebasedWaveforms ( const std::string &  t_detectorname,
Bool_t  t_storewaves = kTRUE
)
inline

Definition at line 52 of file BSEmcMCDepositToTimebasedWaveforms.h.

53  : PndPersistencyTask("BSEmcMCDepositToTimebasedWaveforms"), fDetectorName(t_detectorname)
54  {
55  SetPersistency(t_storewaves);
56  }
PndPersistencyTask::SetPersistency
void SetPersistency(Bool_t val=kTRUE)
Definition: PndPersistencyTask.h:27

◆ ~BSEmcMCDepositToTimebasedWaveforms()

template<class ParSet>
virtual BSEmcMCDepositToTimebasedWaveforms< ParSet >::~BSEmcMCDepositToTimebasedWaveforms ( )
inlinevirtual

Definition at line 59 of file BSEmcMCDepositToTimebasedWaveforms.h.

59 {};

Member Function Documentation

◆ ClassDef()

template<class ParSet>
BSEmcMCDepositToTimebasedWaveforms< ParSet >::ClassDef ( BSEmcMCDepositToTimebasedWaveforms< ParSet >  ,
2
)
protected

◆ Exec()

template<class ParSet>
virtual void BSEmcMCDepositToTimebasedWaveforms< ParSet >::Exec ( Option_t *  )
inlinevirtual

Runs the task.

Uses the waveform simulator (BSEmcAbsWaveformSimulator) to generate a waveform from the deposit and fill the buffer (BSEmcWaveformBuffer).

Parameters
optunused
Returns
void

Definition at line 139 of file BSEmcMCDepositToTimebasedWaveforms.h.

140  {
141  LOG(debug) << "BSEmcMCDepositToTimebasedWaveforms<ParSet> " << fDetectorName << " Exec() ";
142  FairRootManager *ioman = FairRootManager::Instance();
143
144  TStopwatch timer;
145  timer.Start();
146
147  const BSEmcMCDeposit *theDeposit = nullptr;
148
149  Int_t nDeposits = fMCDepositArray.GetSize();
150  LOG(debug) << "BSEmcMCDepositToTimebasedWaveforms<ParSet> " << fDetectorName << " Deposit array contains " << nDeposits << " deposits";
151
152  for (Int_t iDeposit = 0; iDeposit < nDeposits; iDeposit++) {
153
154  theDeposit = fMCDepositArray.GetConstElementPtr(iDeposit);
155  Double_t energy = theDeposit->GetEnergy();
156  if (energy == 0) {
157  continue;
158  }
159  LOG(debug3) << "deposit energy : " << energy;
160  if (fUse_photon_statistic) {
161  Double_t crystalPhotonsMeV = 1.0e3 * energy * fNPhotoElectronsPerMeV;
162  Double_t photonStatFactor = gRandom->Gaus(1, sqrt(fExcessNoiseFactor / crystalPhotonsMeV));
163  LOG(debug3) << "photonStatFactor: " << photonStatFactor;
164  energy *= photonStatFactor;
165  LOG(debug3) << "energy now: " << energy;
166  // energy *= 1e3;
167  LOG(debug3) << "energy now in MeV: " << energy;
168  }
169  // construct corresponding waveform data Object
170  BSEmcWaveformData wfData(theDeposit->GetDetectorID(), fSimulator);
171  wfData.SetOverlapTime(fOverlapTime);
172  // register deposit...timebased framework uses ns, whereas emc deals with seconds as time unit
173  FairLink linkToDeposit(-1, ioman->GetEntryNr(), fMCDepositBranchName, iDeposit, 1.0);
174  if (fActivateBuffering) {
175  wfData.AddDeposit(linkToDeposit, ioman->GetEventTime() + theDeposit->GetTime() * 1.0e9, energy);
176  } else {
177  wfData.AddDeposit(linkToDeposit, theDeposit->GetTime() * 1.0e9, energy);
178  }
179  LOG(debug) << "BSEmcMCDepositToTimebasedWaveforms " << fDetectorName << " adding deposit with event time " << ioman->GetEventTime()
180  << " and deposit time: " << theDeposit->GetTime() * 1.0e9 << " and energy: " << energy;
181  fWaveformBuffer->FillNewData(&wfData);
182  }
183  timer.Stop();
184  Double_t rtime = timer.RealTime();
185  Double_t ctime = timer.CpuTime();
186  LOG(debug) << "BSEmcMCDepositToTimebasedWaveforms, Real time " << rtime << " s, CPU time " << ctime << " s";
187  }
PndConstContainerI::GetConstElementPtr
virtual T const * GetConstElementPtr(Int_t t_index) const
Get the Element object at t_index.
Definition: PndConstContainerI.h:34
BSEmcMCDeposit::GetDetectorID
Int_t GetDetectorID() const
Definition: BSEmcMCDeposit.h:61
sqrt
friend F32vec4 sqrt(const F32vec4 &a)
Definition: P4_F32vec4.h:28
BSEmcMCDeposit
represents the deposited energy of one emc crystal from simulation
Definition: BSEmcMCDeposit.h:32
PndTCAConstContainer::GetSize
virtual ssize_t GetSize() const final
Get the number of elements.
Definition: PndTCAConstContainer.h:71
BSEmcWaveformBuffer::FillNewData
virtual void FillNewData(BSEmcWaveformData *)
BSEmcMCDeposit::GetTime
virtual Double_t GetTime() const
Definition: BSEmcMCDeposit.h:54
BSEmcWaveformData
represents a simulated waveform in an emc crystal, used by BSEmcFwEndcapTimebasedWaveforms ...
Definition: BSEmcWaveformData.h:30
BSEmcMCDepositToTimebasedWaveforms::fMCDepositArray
PndTCAConstContainer< BSEmcMCDeposit > fMCDepositArray
Definition: BSEmcMCDepositToTimebasedWaveforms.h:231
BSEmcMCDeposit::GetEnergy
virtual Double_t GetEnergy() const
BSEmcWaveformData::SetOverlapTime
void SetOverlapTime(const Double_t t_overlap)
Definition: BSEmcWaveformData.h:66

◆ Init()

template<class ParSet>
virtual InitStatus BSEmcMCDepositToTimebasedWaveforms< ParSet >::Init ( )
inlinevirtual

Init Task.

Prepares the TClonesArray of BSEmcMCDeposit for reading and BSEmcMultiWaveform for writing. Also reads the EMC parameters.

Returns
InitStatus
Return values
kSUCCESSsuccess

Definition at line 71 of file BSEmcMCDepositToTimebasedWaveforms.h.

72  {
73  if (fMCDepositBranchName == "") {
74  fMCDepositBranchName = BSEmcDataBranchNames::fgMCDepositBranchName + this->fDetectorName;
75  }
76
77  if (fWaveformBranchName == "") {
78  fWaveformBranchName = BSEmcDataBranchNames::fgMultiWaveformBranchName + this->fDetectorName;
79  }
80  if (fWaveformDataBranchName == "") {
81  fWaveformDataBranchName = BSEmcDataBranchNames::fgWaveformDataBranchName + this->fDetectorName;
82  }
83
84  if (fSimulator == nullptr) {
85  LOG(debug) << "BSEmcMCDepositToTimebasedWaveforms for " << fMCDepositBranchName << " has no Simulator set. Calling SetupSimulator!";
86  SetupSimulator();
87  fSimulator->SetMCDepositBranchName(fMCDepositBranchName);
88  }
89  if (fSimulator == nullptr) {
90  LOG(error) << "BSEmcMCDepositToTimebasedWaveforms for " << fMCDepositBranchName << " has no Simulator set. Aborting!";
91  exit(-1);
92  }
93
94  // Get RootManager
95  FairRootManager *ioman = FairRootManager::Instance();
96  if (ioman == nullptr) {
97  LOG(error) << "BSEmcMCDepositToTimebasedWaveforms<ParSet>::Init: "
98  << "RootManager not instantiated!";
99  return kFATAL;
100  }
101  fMCDepositArray.SetBranchName(fMCDepositBranchName);
102  fMCDepositArray.SetTCA(dynamic_cast<TClonesArray *>(ioman->GetObject(fMCDepositBranchName)));
103  // Create and activiate output Buffer....choose between BSEmcWaveform and BSEmcMultiWaveform
104  fWaveformBuffer = new BSEmcWaveformBuffer(fWaveformBranchName, "BSEmcMultiWaveform", "Emc", GetPersistency());
105  LOG(debug) << "Using BSEmcMultiWaveform in WaveformBuffer.";
106
107  fWaveformBuffer = (BSEmcWaveformBuffer *)ioman->RegisterWriteoutBuffer(fWaveformBranchName, fWaveformBuffer);
108  fWaveformBuffer->ActivateBuffering(fActivateBuffering);
109
110  if (fStoreDataClass) {
111  fWaveformBuffer->StoreWaveformData(fWaveformDataBranchName, "Emc", kTRUE);
112  }
113
114  fUse_photon_statistic = fPhotonStatisticPar->GetUseDigiEffectiveSmearingMode() == 2;
115
116  if (fUse_photon_statistic) {
117  LOG(debug) << "BSEmcMCDepositToTimebasedWaveforms: " << fDetectorName << " using photon statistic";
118  fNPhotoElectronsPerMeV = fPhotonStatisticPar->GetDetectedPhotonsPerMeV() * fPhotonStatisticPar->GetSensitiveArea() / fPhotonStatisticPar->GetRearCrystalSurfaceArea() *
119  fPhotonStatisticPar->GetQuantumEfficiency();
120  fExcessNoiseFactor = fPhotonStatisticPar->GetExcessNoiseFactor();
121  } else {
122  fNPhotoElectronsPerMeV = 0;
123  fExcessNoiseFactor = 1;
124  }
125  fOverlapTime = fPhotonStatisticPar->GetOverlapTime();
126  LOG(debug) << "BSEmcMCDepositToTimebasedWaveforms::Init() for " << fMCDepositBranchName << " done.";
127  return kSUCCESS;
128  }
BSEmcDigiPar::GetUseDigiEffectiveSmearingMode
Int_t GetUseDigiEffectiveSmearingMode() const
Definition: BSEmcDigiPar.h:31
BSEmcDataBranchNames::fgMultiWaveformBranchName
const std::string fgMultiWaveformBranchName
Definition: BSEmcDataBranchNames.h:16
PndTCAConstContainer::SetTCA
void SetTCA(TClonesArray *t_tca)
Set the TClonesArray address.
Definition: PndTCAConstContainer.h:84
BSEmcDigiPar::GetRearCrystalSurfaceArea
Double_t GetRearCrystalSurfaceArea() const
Definition: BSEmcDigiPar.h:38
BSEmcWaveformBuffer::StoreWaveformData
virtual void StoreWaveformData(TString t_branchName, TString t_folderName, Bool_t t_persistance)
BSEmcDigiPar::GetOverlapTime
Double_t GetOverlapTime() const
Definition: BSEmcDigiPar.h:41
BSEmcAbsWaveformSimulator::SetMCDepositBranchName
void SetMCDepositBranchName(const TString &t_branchname)
Definition: BSEmcAbsWaveformSimulator.h:71
BSEmcWaveformBuffer
buffer for waveforms, used by BSEmcFwEndcapTimebasedWaveforms
Definition: BSEmcWaveformBuffer.h:32
BSEmcDataBranchNames::fgWaveformDataBranchName
const std::string fgWaveformDataBranchName
Definition: BSEmcDataBranchNames.h:14
BSEmcDigiPar::GetQuantumEfficiency
Double_t GetQuantumEfficiency() const
Definition: BSEmcDigiPar.h:35
BSEmcDigiPar::GetSensitiveArea
Double_t GetSensitiveArea() const
Definition: BSEmcDigiPar.h:34
PndContainerBaseI::SetBranchName
void SetBranchName(const TString &t_branchname)
Set the Branch Name.
Definition: PndContainerBaseI.h:57
BSEmcMCDepositToTimebasedWaveforms::fMCDepositArray
PndTCAConstContainer< BSEmcMCDeposit > fMCDepositArray
Definition: BSEmcMCDepositToTimebasedWaveforms.h:231
BSEmcDataBranchNames::fgMCDepositBranchName
const std::string fgMCDepositBranchName
Definition: BSEmcDataBranchNames.h:13
BSEmcDigiPar::GetDetectedPhotonsPerMeV
Double_t GetDetectedPhotonsPerMeV() const
Definition: BSEmcDigiPar.h:33
BSEmcDigiPar::GetExcessNoiseFactor
Double_t GetExcessNoiseFactor() const
Definition: BSEmcDigiPar.h:36

◆ RunTimebased()

template<class ParSet>
void BSEmcMCDepositToTimebasedWaveforms< ParSet >::RunTimebased ( Bool_t  t_timebased = kTRUE)
inline

Definition at line 189 of file BSEmcMCDepositToTimebasedWaveforms.h.

189 { fActivateBuffering = t_timebased; };

◆ SetMCDepositBranchName()

template<class ParSet>
void BSEmcMCDepositToTimebasedWaveforms< ParSet >::SetMCDepositBranchName ( const TString &  t_branchName)
inline

Definition at line 194 of file BSEmcMCDepositToTimebasedWaveforms.h.

194 { fMCDepositBranchName = t_branchName; }

◆ SetParContainers()

template<class ParSet>
virtual void BSEmcMCDepositToTimebasedWaveforms< ParSet >::SetParContainers ( )
inlineprotectedvirtual

Get parameter containers

Definition at line 202 of file BSEmcMCDepositToTimebasedWaveforms.h.

203  {
204  // Get run and runtime database
205  FairRun *run = FairRun::Instance();
206  if (run == nullptr) {
207  Fatal("SetParContainers", "No analysis run");
208  }
209  FairRuntimeDb *db = run->GetRuntimeDb();
210  if (db == nullptr) {
211  Fatal("SetParContainers", "No runtime database");
212  }
213  // Get Emc digitisation parameter container
214  if (fWaveformGenParName == "") {
215  fWaveformGenParName = ParSet::fgParameterName;
216  }
217  fDigiPar = dynamic_cast<ParSet *>(db->getContainer(fWaveformGenParName.c_str()));
218
219  if (fPhotonStatisticParName == "") {
220  fPhotonStatisticParName = BSEmcDigiPar::fgParameterName + fDetectorName;
221  }
222  fPhotonStatisticPar = dynamic_cast<BSEmcDigiPar *>(db->getContainer(fPhotonStatisticParName.c_str()));
223  }
BSEmcDigiPar::fgParameterName
static const std::string fgParameterName
Definition: BSEmcDigiPar.h:26
BSEmcMCDepositToTimebasedWaveforms::fDigiPar
ParSet * fDigiPar
Digitisation parameter container.
Definition: BSEmcMCDepositToTimebasedWaveforms.h:241
BSEmcDigiPar
Container for runtime parameters that are required for the transformation from BSEmcMCDeposits to BSE...
Definition: BSEmcDigiPar.h:24

◆ SetPhotonStatisticParName()

template<class ParSet>
void BSEmcMCDepositToTimebasedWaveforms< ParSet >::SetPhotonStatisticParName ( const std::string &  t_photonStatParName)
inline

Definition at line 197 of file BSEmcMCDepositToTimebasedWaveforms.h.

197 { fPhotonStatisticParName = t_photonStatParName; }

◆ SetSimulator()

template<class ParSet>
void BSEmcMCDepositToTimebasedWaveforms< ParSet >::SetSimulator ( BSEmcAbsWaveformSimulator *  t_simulator)
inline

Definition at line 190 of file BSEmcMCDepositToTimebasedWaveforms.h.

190 { fSimulator = t_simulator; }

◆ SetStorageOfData()

template<class ParSet>
void BSEmcMCDepositToTimebasedWaveforms< ParSet >::SetStorageOfData ( Bool_t  t_storeWaves = kTRUE)
inline

Definition at line 191 of file BSEmcMCDepositToTimebasedWaveforms.h.

191 { SetPersistency(t_storeWaves); };
PndPersistencyTask::SetPersistency
void SetPersistency(Bool_t val=kTRUE)
Definition: PndPersistencyTask.h:27

◆ SetupSimulator()

template<class ParSet>
virtual void BSEmcMCDepositToTimebasedWaveforms< ParSet >::SetupSimulator ( )
protectedpure virtual

Implemented in BSEmcShashlykTimebasedWaveforms, BSEmcBwEndcapTimebasedWaveforms, and BSEmcFwEndcapTimebasedWaveforms.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetParContainers().

◆ SetWaveformBranchName()

template<class ParSet>
void BSEmcMCDepositToTimebasedWaveforms< ParSet >::SetWaveformBranchName ( const TString &  t_branchName)
inline

Definition at line 195 of file BSEmcMCDepositToTimebasedWaveforms.h.

195 { fWaveformBranchName = t_branchName; }

◆ SetWaveformDataBranchName()

template<class ParSet>
void BSEmcMCDepositToTimebasedWaveforms< ParSet >::SetWaveformDataBranchName ( const TString &  t_branchName)
inline

Definition at line 196 of file BSEmcMCDepositToTimebasedWaveforms.h.

196 { fWaveformDataBranchName = t_branchName; }

◆ SetWaveformGenParName()

template<class ParSet>
void BSEmcMCDepositToTimebasedWaveforms< ParSet >::SetWaveformGenParName ( const std::string &  t_waveformGenParName)
inline

Definition at line 198 of file BSEmcMCDepositToTimebasedWaveforms.h.

198 { fWaveformGenParName = t_waveformGenParName; }

◆ StoreDataClass()

template<class ParSet>
void BSEmcMCDepositToTimebasedWaveforms< ParSet >::StoreDataClass ( Bool_t  t_storeData = kTRUE)
inline

Method to specify whether waveforms are stored or not.

Definition at line 192 of file BSEmcMCDepositToTimebasedWaveforms.h.

192 { fStoreDataClass = t_storeData; };

Member Data Documentation

◆ fActivateBuffering

template<class ParSet>
Bool_t BSEmcMCDepositToTimebasedWaveforms< ParSet >::fActivateBuffering {kFALSE}
protected

Definition at line 236 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Exec(), BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::RunTimebased().

◆ fDetectorName

template<class ParSet>
TString BSEmcMCDepositToTimebasedWaveforms< ParSet >::fDetectorName {""}
protected

Input array

Definition at line 227 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Exec(), BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetParContainers().

◆ fDigiPar

template<class ParSet>
ParSet* BSEmcMCDepositToTimebasedWaveforms< ParSet >::fDigiPar {nullptr}
protected

Digitisation parameter container.

Definition at line 241 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetParContainers().

◆ fExcessNoiseFactor

template<class ParSet>
Double_t BSEmcMCDepositToTimebasedWaveforms< ParSet >::fExcessNoiseFactor {0}
protected

Definition at line 244 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Exec(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init().

◆ fMCDepositArray

template<class ParSet>
PndTCAConstContainer<BSEmcMCDeposit> BSEmcMCDepositToTimebasedWaveforms< ParSet >::fMCDepositArray {}
protected

Definition at line 231 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Exec(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init().

◆ fMCDepositBranchName

template<class ParSet>
TString BSEmcMCDepositToTimebasedWaveforms< ParSet >::fMCDepositBranchName {""}
protected

Definition at line 228 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Exec(), BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetMCDepositBranchName().

◆ fNPhotoElectronsPerMeV

template<class ParSet>
Double_t BSEmcMCDepositToTimebasedWaveforms< ParSet >::fNPhotoElectronsPerMeV {0}
protected

Definition at line 243 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Exec(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init().

◆ fOverlapTime

template<class ParSet>
Double_t BSEmcMCDepositToTimebasedWaveforms< ParSet >::fOverlapTime {0}
protected

Definition at line 245 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Exec(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init().

◆ fPhotonStatisticPar

template<class ParSet>
BSEmcDigiPar* BSEmcMCDepositToTimebasedWaveforms< ParSet >::fPhotonStatisticPar {nullptr}
protected

Definition at line 238 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetParContainers().

◆ fPhotonStatisticParName

template<class ParSet>
std::string BSEmcMCDepositToTimebasedWaveforms< ParSet >::fPhotonStatisticParName {""}
protected

Definition at line 237 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetParContainers(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetPhotonStatisticParName().

◆ fSimulator

template<class ParSet>
BSEmcAbsWaveformSimulator* BSEmcMCDepositToTimebasedWaveforms< ParSet >::fSimulator {nullptr}
protected

Definition at line 246 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Exec(), BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetSimulator().

◆ fStoreDataClass

template<class ParSet>
Bool_t BSEmcMCDepositToTimebasedWaveforms< ParSet >::fStoreDataClass {kFALSE}
protected

Definition at line 235 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::StoreDataClass().

◆ fUse_photon_statistic

template<class ParSet>
Bool_t BSEmcMCDepositToTimebasedWaveforms< ParSet >::fUse_photon_statistic {kFALSE}
protected

Definition at line 242 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Exec(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init().

◆ fWaveformBranchName

template<class ParSet>
TString BSEmcMCDepositToTimebasedWaveforms< ParSet >::fWaveformBranchName {""}
protected

Definition at line 229 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetWaveformBranchName().

◆ fWaveformBuffer

template<class ParSet>
BSEmcWaveformBuffer* BSEmcMCDepositToTimebasedWaveforms< ParSet >::fWaveformBuffer {nullptr}
protected

Output array of BSEmcWaveforms

Definition at line 233 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Exec(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init().

◆ fWaveformDataBranchName

template<class ParSet>
TString BSEmcMCDepositToTimebasedWaveforms< ParSet >::fWaveformDataBranchName {""}
protected

Definition at line 230 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::Init(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetWaveformDataBranchName().

◆ fWaveformGenParName

template<class ParSet>
std::string BSEmcMCDepositToTimebasedWaveforms< ParSet >::fWaveformGenParName {""}
protected

Definition at line 240 of file BSEmcMCDepositToTimebasedWaveforms.h.

Referenced by BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetParContainers(), and BSEmcMCDepositToTimebasedWaveforms< BSEmcBwEndcapDigiPar >::SetWaveformGenParName().

The documentation for this class was generated from the following file:
