PandaRoot
Public Member Functions | Protected Member Functions | List of all members
PndEmcAbsWaveformModifier Class Referenceabstract
PndEmc

interface for waveform modifiers More...

#include <PndEmcAbsWaveformModifier.h>

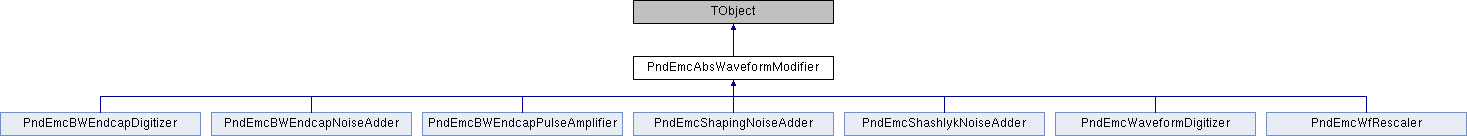

Inheritance diagram for PndEmcAbsWaveformModifier:
PndEmcBWEndcapDigitizer PndEmcBWEndcapNoiseAdder PndEmcBWEndcapPulseAmplifier PndEmcShapingNoiseAdder PndEmcShashlykNoiseAdder PndEmcWaveformDigitizer PndEmcWfRescaler

Public Member Functions

virtual void Modify (PndEmcWaveform *wf)=0

virtual Double_t GetScale ()

virtual ~PndEmcAbsWaveformModifier ()


Protected Member Functions

std::vector< Double_t > & GetWaveformReference (PndEmcWaveform *wf)

 ClassDef (PndEmcAbsWaveformModifier, 1)


Detailed Description

interface for waveform modifiers

Author
Ph. Mahlberg mahlb.nosp@m.erg@.nosp@m.hiskp.nosp@m..uni.nosp@m.-bonn.nosp@m..de

Definition at line 28 of file PndEmcAbsWaveformModifier.h.

Constructor & Destructor Documentation

◆ ~PndEmcAbsWaveformModifier()

virtual PndEmcAbsWaveformModifier::~PndEmcAbsWaveformModifier ( )
inlinevirtual

Definition at line 33 of file PndEmcAbsWaveformModifier.h.

33 {};

Member Function Documentation

◆ ClassDef()

PndEmcAbsWaveformModifier::ClassDef ( PndEmcAbsWaveformModifier  ,
1
)
protected

Referenced by PndEmcBWEndcapDigitizer::GetScale(), PndEmcBWEndcapPulseAmplifier::GetScale(), PndEmcWfRescaler::GetScale(), GetWaveformReference(), and PndEmcMultiWaveform::SetActiveWaveform().

◆ GetScale()

virtual Double_t PndEmcAbsWaveformModifier::GetScale ( )
inlinevirtual

Reimplemented in PndEmcWfRescaler, PndEmcBWEndcapPulseAmplifier, PndEmcBWEndcapDigitizer, and PndEmcWaveformDigitizer.

Definition at line 31 of file PndEmcAbsWaveformModifier.h.

31 { return 1.; };

◆ GetWaveformReference()

std::vector<Double_t>& PndEmcAbsWaveformModifier::GetWaveformReference ( PndEmcWaveform *  wf)
inlineprotected

Definition at line 36 of file PndEmcAbsWaveformModifier.h.

References ClassDef(), and PndEmcWaveform::fSignal.

37  {
38  if (PndEmcMultiWaveform *multiWf = dynamic_cast<PndEmcMultiWaveform *>(wf)) {
39  Int_t activeWf = multiWf->GetActiveWaveform();
40  return multiWf->fSignals.at(activeWf);
41  }
42  return wf->fSignal;
43  }
PndEmcWaveform::fSignal
std::vector< Double_t > fSignal
Definition: PndEmcWaveform.h:159
PndEmcMultiWaveform
Class to hold multiple waveforms from one Emc Hit / ADC readout.
Definition: PndEmcMultiWaveform.h:34

◆ Modify()

virtual void PndEmcAbsWaveformModifier::Modify ( PndEmcWaveform *  wf)
pure virtual

Implemented in PndEmcBWEndcapNoiseAdder, PndEmcShashlykNoiseAdder, PndEmcBWEndcapPulseAmplifier, PndEmcWfRescaler, PndEmcShapingNoiseAdder, PndEmcBWEndcapDigitizer, and PndEmcWaveformDigitizer.

The documentation for this class was generated from the following file:
