Class for the master simulation chain. More...

#include <PndMasterRunSim.h>

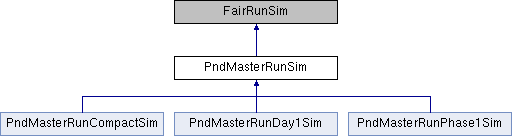

Inheritance diagram for PndMasterRunSim:

Public Member Functions
	PndMasterRunSim ()
	Default constructor. More...

virtual	~PndMasterRunSim ()
	Default destructor. More...

virtual Bool_t	Setup (TString outprefix="")
	Initial setup. More...

void	Finish ()
	Final diagnostics. More...

virtual void	CreateGeometry ()
	It switches between different standard geometry volumes. More...

void	CreateGeometryDefault ()
	It creates all the standard geometry volumes. More...

virtual void	AddSimTasks ()
	Add simulation tasks. More...

void	SetGenerator ()
	Set the event generator. More...

void	AddGenerator (FairGenerator *aGen)
	Add a generator to existing setup. More...

void	SetGenerator (FairGenerator *aGen)
	Set the event generator. More...

void	SetDpmFlag (Int_t Mode)
	Set the DPM flag. More...

void	SetFtfFlag (Int_t Mode)
	Set the FTF noelastic flag. More...

void	UseDpmGenerator ()
	Use DPM as event generator. More...

void	UseFtfGenerator (TString ftfData)
	Use FTF as event generator. More...

void	UsePythia8Generator (TString py8Data)
	Use Pythia8 as event generator. More...

void	UseEvtGenGenerator (TString EvtGenFile)
	Use EvtGen as event generator. More...

void	UseBoxGenerator (TString BoxConfig)
	Use BoxGen as event generator. More...

void	UsePiPiGenerator (TString pipiConfig)
	Use PiPiGenerator as event generator. More...

void	UseLepLepGenerator (TString leplepConfig)
	Use LepLepGenerator as event generator. More...

void	UseAsciiGenerator (TString AsciiFile)

void	SetInput (TString par)
	Input of the simulation. More...

void	SetInputDir (TString par)
	Input directory of the simulation. More...

void	SetParamRootFile (TString par)
	Setter of the parameter root file. More...

void	SetParamAsciiFile (TString par)
	Setter of the parameter ascii file. More...

void	SetOptions (TString par)
	Setter of the simulation options. More...

TString	GetOptions ()

void	SetNumberOfEvents (Int_t par)
	Setter of the number of events. More...

void	SetEventCounterRate (Int_t par)
	Setter of the event counter rate. More...

virtual void	SetupTargetMode ()

void	SetTargetMode (Short_t par)
	Setter of the target mode. More...

FairFilteredPrimaryGenerator *	GetFilteredPrimaryGenerator ()
	Getter for the primary generator, e.g. to configure the event filter. More...

PndFilteredPrimaryGenerator *	GetPndFilteredPrimaryGenerator ()

void	PrintListOfTasks (TList *list, TString prefix=" - ")

void	PrintListOfTasks ()

Protected Member Functions
void	GetRange (TString par, double &min, double &max)

void	GetCoords (TString par, double &X, double &Y, double &Z)

virtual void	SetOutputFile (TString outprefix)

virtual void	SetRtdb ()

virtual void	SetField ()

virtual void	DefineParticles ()

void	CreatePrimGen ()
	Check and create primary generator. More...

Protected Attributes
TString	fInput
	Name of the input for the simulation. More...

TString	fInputDir
	Name of the input directory for the simulation. More...

TString	fOutFile
	Name of the output file. More...

TString	fParamRootFile
	Name of the parameter root file. More...

TString	fParamAsciiFile
	Name of the parameter ascii file. More...

TString	fOptions
	Options parsed to the simulation. More...

Int_t	fDpmFlag
	Flag for DPM event generator. More...

Int_t	fFtfFlag
	Flag for FTF event generator. More...

Int_t	fNEvents
	Number of events. More...

Int_t	fEventCounterRate
	After how many events the counter will print. More...

Short_t	fTargetMode
	Target mode. More...

FairRuntimeDb *	fRtdb
	Runtime DB. More...

TStopwatch	fTimer
	Timer. More...

Detailed Description

Class for the master simulation chain.

Master Simulation Class

This class is the basic for the simulation macro. It loads the environment and all the standard detectors.

Author: Stefano Spataro spata.nosp@m.ro@t.nosp@m.o.inf.nosp@m.n.it, Torino University

Version: 1.0

Date: Feb 3, 2016

Definition at line 42 of file PndMasterRunSim.h.

Constructor & Destructor Documentation

◆ PndMasterRunSim()

PndMasterRunSim::PndMasterRunSim ( )

Default constructor.

◆ ~PndMasterRunSim()

virtual PndMasterRunSim::~PndMasterRunSim ( )

virtual

Default destructor.

Member Function Documentation

◆ AddGenerator()

void PndMasterRunSim::AddGenerator ( FairGenerator * aGen )

Add a generator to existing setup.

Adds a generator to the existing one. ALL generators will be active and produce their particle content in each event simultaneously.

◆ AddSimTasks()

virtual void PndMasterRunSim::AddSimTasks ( )

virtual

Add simulation tasks.

It adds all the standard simulation tasks

Reimplemented in PndMasterRunCompactSim.

◆ CreateGeometry()

virtual void PndMasterRunSim::CreateGeometry ( )

virtual

It switches between different standard geometry volumes.

According to fOptions, it creates the standard geometry volumes for the full setup, or dedicated geometries (such as day1)

Reimplemented in PndMasterRunCompactSim, PndMasterRunDay1Sim, and PndMasterRunPhase1Sim.

◆ CreateGeometryDefault()

void PndMasterRunSim::CreateGeometryDefault ( )

It creates all the standard geometry volumes.

It creates all the standard geometry volumes which have to be used in simulation. All the MCPoint will be stored, expect for EMC.

◆ CreatePrimGen()

void PndMasterRunSim::CreatePrimGen ( )

protected

Check and create primary generator.

Checks if the priomary generator is there and if not, creates it.

Referenced by PrintListOfTasks().

◆ DefineParticles()

virtual void PndMasterRunSim::DefineParticles ( )

protectedvirtual

Referenced by PrintListOfTasks().

◆ Finish()

void PndMasterRunSim::Finish ( )

Final diagnostics.

It prints CPU time, memory usage, used parameters, and eventually send the information to CDash

◆ GetCoords()

void PndMasterRunSim::GetCoords	(	TString	par,
		double &	X,
		double &	Y,
		double &	Z
	)

protected

Referenced by PrintListOfTasks().

◆ GetFilteredPrimaryGenerator()

FairFilteredPrimaryGenerator* PndMasterRunSim::GetFilteredPrimaryGenerator ( )

inline

Getter for the primary generator, e.g. to configure the event filter.

Definition at line 273 of file PndMasterRunSim.h.

273 { return (FairFilteredPrimaryGenerator *)fGen; }

FairFilteredPrimaryGenerator

Primary generator with added event filtering capabilities.

Definition: FairFilteredPrimaryGenerator.h:60

◆ GetOptions()

TString PndMasterRunSim::GetOptions ( )

inline

Definition at line 246 of file PndMasterRunSim.h.

References fOptions.

246 { return fOptions; }

PndMasterRunSim::fOptions

TString fOptions

Options parsed to the simulation.

Definition: PndMasterRunSim.h:298

◆ GetPndFilteredPrimaryGenerator()

PndFilteredPrimaryGenerator* PndMasterRunSim::GetPndFilteredPrimaryGenerator ( )

inline

Definition at line 274 of file PndMasterRunSim.h.

References PrintListOfTasks().

274 { return (PndFilteredPrimaryGenerator *)fGen; }

PndFilteredPrimaryGenerator

Primary generator with added event filtering capabilities.

Definition: PndFilteredPrimaryGenerator.h:84

◆ GetRange()

void PndMasterRunSim::GetRange	(	TString	par,
		double &	min,
		double &	max
	)

protected

Referenced by PrintListOfTasks().

◆ PrintListOfTasks() [1/2]

void PndMasterRunSim::PrintListOfTasks	(	TList *	list,
		TString	prefix = `" - "`
	)

◆ PrintListOfTasks() [2/2]

void PndMasterRunSim::PrintListOfTasks ( )

inline

Definition at line 277 of file PndMasterRunSim.h.

References CreatePrimGen(), DefineParticles(), GetCoords(), GetRange(), max(), min(), PrintListOfTasks(), SetField(), SetOutputFile(), and SetRtdb().

Referenced by GetPndFilteredPrimaryGenerator(), and PrintListOfTasks().

277 { PrintListOfTasks(GetMainTask()->GetListOfTasks()); }

PndMasterRunSim::PrintListOfTasks

void PrintListOfTasks()

Definition: PndMasterRunSim.h:277

◆ SetDpmFlag()

void PndMasterRunSim::SetDpmFlag ( Int_t Mode )

inline

Set the DPM flag.

Parameters

Mode	= 0. - DPM - No elastic scattering, only inelastic
Mode	= 1. - DPM - Elastic and inelastic interactions (default)
Mode	= 2. - DPM - Only elastic scattering, no inelastic one

Definition at line 127 of file PndMasterRunSim.h.

References fDpmFlag.

127 { fDpmFlag = Mode; };

PndMasterRunSim::fDpmFlag

Int_t fDpmFlag

Flag for DPM event generator.

Definition: PndMasterRunSim.h:300

◆ SetEventCounterRate()

void PndMasterRunSim::SetEventCounterRate ( Int_t par )

inline

Setter of the event counter rate.

Definition at line 256 of file PndMasterRunSim.h.

References fEventCounterRate.

256 { fEventCounterRate = par; }

PndMasterRunSim::fEventCounterRate

Int_t fEventCounterRate

After how many events the counter will print.

Definition: PndMasterRunSim.h:303

◆ SetField()

virtual void PndMasterRunSim::SetField ( )

protectedvirtual

Reimplemented in PndMasterRunCompactSim.

Referenced by PrintListOfTasks().

◆ SetFtfFlag()

void PndMasterRunSim::SetFtfFlag ( Int_t Mode )

inline

Set the FTF noelastic flag.

Parameters

Mode	= 0. - FTF - Elastic and inelastic interactions (default)
Mode	= 1. - FTF - No elastic scattering, only inelastic

Definition at line 134 of file PndMasterRunSim.h.

References fFtfFlag, UseAsciiGenerator(), UseBoxGenerator(), UseDpmGenerator(), UseEvtGenGenerator(), UseFtfGenerator(), UseLepLepGenerator(), UsePiPiGenerator(), and UsePythia8Generator().

134 { fFtfFlag = Mode; };

PndMasterRunSim::fFtfFlag

Int_t fFtfFlag

Flag for FTF event generator.

Definition: PndMasterRunSim.h:301

◆ SetGenerator() [1/2]

void PndMasterRunSim::SetGenerator ( )

Set the event generator.

This call set the event generator according to the input name. If the input name contains "dpm" it uses dpm, if it contains "ftf" then ftf, if ".dec" it runs evtgen using the input name as namefile of the .dec file. If the input name contains "box" the macro breaks, since in that case the SetGenerator(PndBoxGenerator *boxGen) function must be used.

◆ SetGenerator() [2/2]

void PndMasterRunSim::SetGenerator ( FairGenerator * aGen )

Set the event generator.

The user should create a FairGenerator derived object with all the settings, and pass it as argument to the function.

◆ SetInput()

void PndMasterRunSim::SetInput ( TString par )

inline

Input of the simulation.

Parameters

par	= the name of the dec file for EvtGen, ending w/ .dec
par	= "dpm" if you want to use dpm
par	= "ftf" if you want to use ftf
par	= "box:[...]" if you want to use box

Definition at line 213 of file PndMasterRunSim.h.

References fInput.

213 { fInput = par; }

PndMasterRunSim::fInput

TString fInput

Name of the input for the simulation.

Definition: PndMasterRunSim.h:293

◆ SetInputDir()

void PndMasterRunSim::SetInputDir ( TString par )

inline

Input directory of the simulation.

Definition at line 218 of file PndMasterRunSim.h.

References fInputDir.

218 { fInputDir = par; }

PndMasterRunSim::fInputDir

TString fInputDir

Name of the input directory for the simulation.

Definition: PndMasterRunSim.h:294

◆ SetNumberOfEvents()

void PndMasterRunSim::SetNumberOfEvents ( Int_t par )

inline

Setter of the number of events.

Definition at line 251 of file PndMasterRunSim.h.

References fNEvents.

251 { fNEvents = par; }

PndMasterRunSim::fNEvents

Int_t fNEvents

Number of events.

Definition: PndMasterRunSim.h:302

◆ SetOptions()

void PndMasterRunSim::SetOptions ( TString par )

inline

Setter of the simulation options.

Parameters

par	= "" -> default settings full setup
par	= "day1" -> Setup for day1 experiment: no GEM, FTS1234, NO DISC, NO RICH
par	= "gem2" (added to "day1") -> Setup for day1 experiment with 2 GEM planes (first two)
par	= "gem3" (added to "day1") -> Setup for day1 experiment with 3 GEM planes
par	= "fts1256" (added to "day1") -> Setup for day1 experiment with FTS1256 insted of FTS1234
par	= "strip" (added to "day1") -> Setup for day1 experiment with only the strip part of the MVD instead of the full MVD Example: "day1+gem+fts1256" means day1 setup + GEM planes + fst1256

Definition at line 241 of file PndMasterRunSim.h.

References fOptions.

   {
     fOptions = par;
     fOptions.ToLower();
   }

◆ SetOutputFile()

virtual void PndMasterRunSim::SetOutputFile ( TString outprefix )

protectedvirtual

Referenced by PrintListOfTasks().

◆ SetParamAsciiFile()

void PndMasterRunSim::SetParamAsciiFile ( TString par )

inline

Setter of the parameter ascii file.

Definition at line 228 of file PndMasterRunSim.h.

References fParamAsciiFile.

228 { fParamAsciiFile = par; }

PndMasterRunSim::fParamAsciiFile

TString fParamAsciiFile

Name of the parameter ascii file.

Definition: PndMasterRunSim.h:297

◆ SetParamRootFile()

void PndMasterRunSim::SetParamRootFile ( TString par )

inline

Setter of the parameter root file.

Definition at line 223 of file PndMasterRunSim.h.

References fParamRootFile.

223 { fParamRootFile = par; }

PndMasterRunSim::fParamRootFile

TString fParamRootFile

Name of the parameter root file.

Definition: PndMasterRunSim.h:296

◆ SetRtdb()

virtual void PndMasterRunSim::SetRtdb ( )

protectedvirtual

Referenced by PrintListOfTasks().

◆ SetTargetMode()

void PndMasterRunSim::SetTargetMode ( Short_t par )

inline

Setter of the target mode.

Parameters

par	= 0 - No IP smearing (default)
par	= 1 - Cluster Jet
par	= 2 - Pellet target
par	= 3 - Pellet Tracking target

Definition at line 268 of file PndMasterRunSim.h.

References fTargetMode.

Referenced by PndMasterRunDay1Sim::SetupTargetMode().

268 { fTargetMode = par; }

PndMasterRunSim::fTargetMode

Short_t fTargetMode

Target mode.

Definition: PndMasterRunSim.h:304

◆ Setup()

virtual Bool_t PndMasterRunSim::Setup ( TString outprefix = "" )

virtual

Initial setup.

This command set the source files, load the proper parameters, and set the relevant flags. If something fails, it returns a kFALSE value.

◆ SetupTargetMode()

virtual void PndMasterRunSim::SetupTargetMode ( )

inlinevirtual

Reimplemented in PndMasterRunDay1Sim.

Definition at line 258 of file PndMasterRunSim.h.

258 {};

◆ UseAsciiGenerator()

void PndMasterRunSim::UseAsciiGenerator ( TString AsciiFile )

Referenced by SetFtfFlag().

◆ UseBoxGenerator()

void PndMasterRunSim::UseBoxGenerator ( TString BoxConfig )

Use BoxGen as event generator.

This call sets BoxGenerator as event generator. The format of the config string is for isotrop events in theta: 'BOX:type(pdg,mult):p(min,max):phi(min,max):tht(min,max)' for isotrop events in cos(theta): 'BOX:type(pdg,mult):p(min,max):phi(min,max):ctht(min,max)' Instead of range 'var(min,max)' also a fixed value can be set with 'var(value)' The origin of particle generation can be specified using 'xyz(X,Y,Z)'. All variables left out are set to defaults.

Parameters

BoxConfig configuration string of the BOX generator

Referenced by SetFtfFlag().

◆ UseDpmGenerator()

void PndMasterRunSim::UseDpmGenerator ( )

Use DPM as event generator.

Referenced by SetFtfFlag().

◆ UseEvtGenGenerator()

void PndMasterRunSim::UseEvtGenGenerator ( TString EvtGenFile )

Use EvtGen as event generator.

This call set EvtGen as event generator. The user should set the .dec file, and the function will retrieve automaticall beam momentum and initial state.

Parameters

EvtGenFile Filename of the .dec file

Referenced by SetFtfFlag().

◆ UseFtfGenerator()

void PndMasterRunSim::UseFtfGenerator ( TString ftfData )

Use FTF as event generator.

This call set FTF as event generator. If no input file is given FtfDirect is used. With input file the events are taken from ftfData.

Referenced by SetFtfFlag().

◆ UseLepLepGenerator()

void PndMasterRunSim::UseLepLepGenerator ( TString leplepConfig )

Use LepLepGenerator as event generator.

This call sets the PndLepLepGenerator as event generator. The format of the config string is: 'LEPLEP:pid(value):gegm(value):cosTheta(min, max)'

Parameters

leplepConfig configuration string of the LepLep generator

Referenced by SetFtfFlag().

◆ UsePiPiGenerator()

void PndMasterRunSim::UsePiPiGenerator ( TString pipiConfig )

Use PiPiGenerator as event generator.

This call sets the PndPiPiGenerator as event generator. The format of the config string is: 'PIPI:cosTheta(min, max)'

Parameters

pipiConfig configuration string of the PiPi generator

Referenced by SetFtfFlag().

◆ UsePythia8Generator()

void PndMasterRunSim::UsePythia8Generator ( TString py8Data )

Use Pythia8 as event generator.

This call sets Pythia8 as event generator. PndPythia8Direct is used. An input file will be interpreted as a sequence of Pyhtia8 options separated by semicolons

Referenced by SetFtfFlag().

Member Data Documentation

◆ fDpmFlag

Int_t PndMasterRunSim::fDpmFlag

protected

Flag for DPM event generator.

Definition at line 300 of file PndMasterRunSim.h.

Referenced by SetDpmFlag().

◆ fEventCounterRate

Int_t PndMasterRunSim::fEventCounterRate

protected

After how many events the counter will print.

Definition at line 303 of file PndMasterRunSim.h.

Referenced by SetEventCounterRate().

◆ fFtfFlag

Int_t PndMasterRunSim::fFtfFlag

protected

Flag for FTF event generator.

Definition at line 301 of file PndMasterRunSim.h.

Referenced by SetFtfFlag().

◆ fInput

TString PndMasterRunSim::fInput

protected

Name of the input for the simulation.

Definition at line 293 of file PndMasterRunSim.h.

Referenced by SetInput().

◆ fInputDir

TString PndMasterRunSim::fInputDir

protected

Name of the input directory for the simulation.

Definition at line 294 of file PndMasterRunSim.h.

Referenced by SetInputDir().

◆ fNEvents

Int_t PndMasterRunSim::fNEvents

protected

Number of events.

Definition at line 302 of file PndMasterRunSim.h.

Referenced by SetNumberOfEvents().

◆ fOptions

TString PndMasterRunSim::fOptions

protected

Options parsed to the simulation.

Definition at line 298 of file PndMasterRunSim.h.

Referenced by GetOptions(), and SetOptions().

◆ fOutFile

TString PndMasterRunSim::fOutFile

protected

Name of the output file.

Definition at line 295 of file PndMasterRunSim.h.

◆ fParamAsciiFile

TString PndMasterRunSim::fParamAsciiFile

protected

Name of the parameter ascii file.

Definition at line 297 of file PndMasterRunSim.h.

Referenced by SetParamAsciiFile().

◆ fParamRootFile

TString PndMasterRunSim::fParamRootFile

protected

Name of the parameter root file.

Definition at line 296 of file PndMasterRunSim.h.

Referenced by SetParamRootFile().

◆ fRtdb

FairRuntimeDb* PndMasterRunSim::fRtdb

protected

Runtime DB.

Definition at line 306 of file PndMasterRunSim.h.

◆ fTargetMode

Short_t PndMasterRunSim::fTargetMode

protected

Target mode.

Definition at line 304 of file PndMasterRunSim.h.

Referenced by SetTargetMode().

◆ fTimer

TStopwatch PndMasterRunSim::fTimer

protected

Timer.

Definition at line 307 of file PndMasterRunSim.h.

The documentation for this class was generated from the following file:

PndMasterRunSim.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Master Simulation Class

Constructor & Destructor Documentation

◆ PndMasterRunSim()

◆ ~PndMasterRunSim()

Member Function Documentation

◆ AddGenerator()

◆ AddSimTasks()

◆ CreateGeometry()

◆ CreateGeometryDefault()

◆ CreatePrimGen()

◆ DefineParticles()

◆ Finish()

◆ GetCoords()

◆ GetFilteredPrimaryGenerator()

◆ GetOptions()

◆ GetPndFilteredPrimaryGenerator()

◆ GetRange()

◆ PrintListOfTasks() [1/2]

◆ PrintListOfTasks() [2/2]

◆ SetDpmFlag()

◆ SetEventCounterRate()

◆ SetField()

◆ SetFtfFlag()

◆ SetGenerator() [1/2]

◆ SetGenerator() [2/2]

◆ SetInput()

◆ SetInputDir()

◆ SetNumberOfEvents()

◆ SetOptions()

◆ SetOutputFile()

◆ SetParamAsciiFile()

◆ SetParamRootFile()

◆ SetRtdb()

◆ SetTargetMode()

◆ Setup()

◆ SetupTargetMode()

◆ UseAsciiGenerator()

◆ UseBoxGenerator()

◆ UseDpmGenerator()

◆ UseEvtGenGenerator()

◆ UseFtfGenerator()

◆ UseLepLepGenerator()

◆ UsePiPiGenerator()

◆ UsePythia8Generator()

Member Data Documentation

◆ fDpmFlag

◆ fEventCounterRate

◆ fFtfFlag

◆ fInput

◆ fInputDir

◆ fNEvents

◆ fOptions

◆ fOutFile

◆ fParamAsciiFile

◆ fParamRootFile

◆ fRtdb

◆ fTargetMode

◆ fTimer
