PndSdsDigiPixel Class Reference

Data class to store the digi output of a pixel module. More...

#include <PndSdsDigiPixel.h>

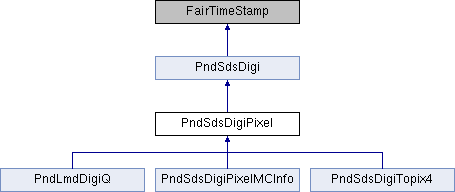

Inheritance diagram for PndSdsDigiPixel:

Public Member Functions
	PndSdsDigiPixel ()
	PndSdsDigiPixel (std::vector< Int_t > index, Int_t detID, Int_t sensorID, Int_t fe, Int_t col, Int_t row, Double_t charge, Double_t timeStamp)
virtual	~PndSdsDigiPixel ()
void	Print ()
Int_t	GetPixelColumn () const
Int_t	GetPixelRow () const
void	SetPixelColumn (Int_t col)
void	SetPixelRow (Int_t row)
bool	operator== (PndSdsDigiPixel &myDigi)
virtual bool	equal (FairTimeStamp *data)
virtual bool	operator< (const PndSdsDigiPixel &myDigi) const
virtual bool	operator> (const PndSdsDigiPixel &myDigi) const
PndSdsDigiPixel &	operator= (const PndSdsDigiPixel &pix)
template<class Archive >
void	serialize (Archive &ar, const unsigned int version)
Public Member Functions inherited from PndSdsDigi
	PndSdsDigi ()
	PndSdsDigi (std::vector< Int_t > index, Int_t detID, Int_t sensorID, Int_t fe, Double_t charge, Double_t timestamp=-1)
	PndSdsDigi (Int_t index, Int_t detID, Int_t fSensorID, Int_t fe, Double_t charge, Double_t timestamp=-1)
virtual	~PndSdsDigi ()
Int_t	GetFE () const
Int_t	GetSensorID () const
Double_t	GetCharge () const
Int_t	GetDetID () const
std::vector< Int_t >	GetIndices () const
Int_t	GetIndex (int i=0) const
Int_t	GetNIndices () const
virtual void	AddIndex (int index)
virtual void	AddIndex (std::vector< Int_t > index)
void	SetCharge (double charge)
void	AddCharge (double charge)
virtual bool	operator< (const PndSdsDigi &myDigi) const
template<class Archive >
void	serialize (Archive &ar, const unsigned int version)

Friends
class	boost::serialization::access
std::ostream &	operator<< (std::ostream &out, PndSdsDigiPixel &digi)

Additional Inherited Members
Protected Member Functions inherited from PndSdsDigi
	ClassDef (PndSdsDigi, 4)
Protected Attributes inherited from PndSdsDigi
std::vector< Int_t >	fIndex
Int_t	fDetID
Int_t	fSensorID
Int_t	fFE
Double_t	fCharge

Detailed Description

Data class to store the digi output of a pixel module.

PndSdsDigiPixel.h

Author

T.Stockmanns t.sto.nosp@m.ckma.nosp@m.nns@f.nosp@m.z-ju.nosp@m.elich.nosp@m..de

See also

PndSdsDigi.h

Definition at line 36 of file PndSdsDigiPixel.h.

Constructor & Destructor Documentation

PndSdsDigiPixel() [1/2]

PndSdsDigiPixel::PndSdsDigiPixel

(

)

PndSdsDigiPixel() [2/2]

PndSdsDigiPixel::PndSdsDigiPixel	(	std::vector< Int_t >	index,
		Int_t	detID,
		Int_t	sensorID,
		Int_t	fe,
		Int_t	col,
		Int_t	row,
		Double_t	charge,
		Double_t	timeStamp
	)

~PndSdsDigiPixel()

virtual PndSdsDigiPixel::~PndSdsDigiPixel ( )

inlinevirtual

Definition at line 55 of file PndSdsDigiPixel.h.

{};

Member Function Documentation

equal()

virtual bool PndSdsDigiPixel::equal ( FairTimeStamp *  data )

inlinevirtual

Definition at line 75 of file PndSdsDigiPixel.h.

References PndSdsDigi::fFE, PndSdsDigi::fSensorID, PndSdsDigi::GetFE(), GetPixelColumn(), GetPixelRow(), and PndSdsDigi::GetSensorID().

  {
    PndSdsDigiPixel *myDigi = dynamic_cast<PndSdsDigiPixel *>(data);
    if (myDigi != nullptr) {
      if (fSensorID == myDigi->GetSensorID())
        if (fFE == myDigi->GetFE())
          if (fCol == myDigi->GetPixelColumn())
            if (fRow == myDigi->GetPixelRow())
              return true;
    }
    return false;
  }

GetPixelColumn()

Int_t PndSdsDigiPixel::GetPixelColumn ( ) const

inline

Definition at line 59 of file PndSdsDigiPixel.h.

Referenced by equal(), operator<(), operator=(), operator==(), and operator>().

{ return fCol; }

GetPixelRow()

Int_t PndSdsDigiPixel::GetPixelRow ( ) const

inline

Definition at line 60 of file PndSdsDigiPixel.h.

Referenced by equal(), operator<(), operator=(), operator==(), and operator>().

{ return fRow; }

operator<()

virtual bool PndSdsDigiPixel::operator< ( const PndSdsDigiPixel &  myDigi ) const

inlinevirtual

Definition at line 88 of file PndSdsDigiPixel.h.

References PndSdsDigi::fDetID, PndSdsDigi::fFE, PndSdsDigi::fSensorID, PndSdsDigi::GetDetID(), PndSdsDigi::GetFE(), GetPixelColumn(), GetPixelRow(), and PndSdsDigi::GetSensorID().

  {
    if (fDetID < myDigi.GetDetID())
      return true;
    else if (fDetID > myDigi.GetDetID())
      return false;
    if (fSensorID < myDigi.GetSensorID())
      return true;
    else if (fSensorID > myDigi.GetSensorID())
      return false;
    if (fFE < myDigi.GetFE())
      return true;
    else if (fFE > myDigi.GetFE())
      return false;
    if (fCol < myDigi.GetPixelColumn())
      return true;
    else if (fCol > myDigi.GetPixelColumn())
      return false;
    if (fRow < myDigi.GetPixelRow())
      return true;
    else if (fRow > myDigi.GetPixelRow())
      return false;
    return false;
  }

operator=()

PndSdsDigiPixel& PndSdsDigiPixel::operator= ( const PndSdsDigiPixel &  pix )

inline

Definition at line 138 of file PndSdsDigiPixel.h.

References GetPixelColumn(), and GetPixelRow().

Referenced by PndSdsDigiTopix4::operator=().

  {
    if (this != &pix) {
      this->PndSdsDigi::operator=(pix);
      fCol = pix.GetPixelColumn();
      fRow = pix.GetPixelRow();
    }
    return *this;
  }

operator==()

bool PndSdsDigiPixel::operator== ( PndSdsDigiPixel &  myDigi )

inline

Definition at line 65 of file PndSdsDigiPixel.h.

References PndSdsDigi::fFE, PndSdsDigi::fSensorID, PndSdsDigi::GetFE(), GetPixelColumn(), GetPixelRow(), and PndSdsDigi::GetSensorID().

  {
    if (fSensorID == myDigi.GetSensorID())
      if (fFE == myDigi.GetFE())
        if (fCol == myDigi.GetPixelColumn())
          if (fRow == myDigi.GetPixelRow())
            return true;
    return false;
  }

operator>()

virtual bool PndSdsDigiPixel::operator> ( const PndSdsDigiPixel &  myDigi ) const

inlinevirtual

Definition at line 113 of file PndSdsDigiPixel.h.

References PndSdsDigi::fDetID, PndSdsDigi::fFE, PndSdsDigi::fSensorID, PndSdsDigi::GetDetID(), PndSdsDigi::GetFE(), GetPixelColumn(), GetPixelRow(), and PndSdsDigi::GetSensorID().

  {
    if (fDetID > myDigi.GetDetID())
      return true;
    else if (fDetID < myDigi.GetDetID())
      return false;
    if (fSensorID > myDigi.GetSensorID())
      return true;
    else if (fSensorID < myDigi.GetSensorID())
      return false;
    if (fFE > myDigi.GetFE())
      return true;
    else if (fFE < myDigi.GetFE())
      return false;
    if (fCol > myDigi.GetPixelColumn())
      return true;
    else if (fCol < myDigi.GetPixelColumn())
      return false;
    if (fRow > myDigi.GetPixelRow())
      return true;
    else if (fRow < myDigi.GetPixelRow())
      return false;
    return false;
  }

Print()

void PndSdsDigiPixel::Print ( )

inlinevirtual

Reimplemented from PndSdsDigi.

Reimplemented in PndSdsDigiTopix4.

Definition at line 57 of file PndSdsDigiPixel.h.

{ std::cout << *this; }

serialize()

template<class Archive >

void PndSdsDigiPixel::serialize ( Archive &  ar, const unsigned int  version  )

inline

Definition at line 150 of file PndSdsDigiPixel.h.

  {
    boost::serialization::void_cast_register<PndSdsDigiPixel, PndSdsDigi>();
    ar &boost::serialization::base_object<PndSdsDigi>(*this);
    ar &fCol;
    ar &fRow;
  }

SetPixelColumn()

void PndSdsDigiPixel::SetPixelColumn ( Int_t  col )

inline

Definition at line 62 of file PndSdsDigiPixel.h.

{ fCol = col; }

SetPixelRow()

void PndSdsDigiPixel::SetPixelRow ( Int_t  row )

inline

Definition at line 63 of file PndSdsDigiPixel.h.

{ fRow = row; }

Friends And Related Function Documentation

boost::serialization::access

friend class boost::serialization::access

friend

Definition at line 161 of file PndSdsDigiPixel.h.

operator<<

std::ostream& operator<< ( std::ostream &  out, PndSdsDigiPixel &  digi  )

friend

Definition at line 37 of file PndSdsDigiPixel.h.

  {
    out << "PndSdsDigiPixel in: " << digi.GetSensorID() << " FE: " << digi.GetFE() << " Col/Row " << digi.GetPixelColumn() << "/" << digi.GetPixelRow() << " charge "
        << digi.GetCharge() << " e"
        << " timestamp " << digi.GetTimeStamp() << ", from Point(s) ";
    std::vector<Int_t> indices = digi.GetIndices();
    for (unsigned int i = 0; i < indices.size(); i++) {
      out << indices[i] << "  ";
    }
    out << std::endl;

    return out;
  }

---

The documentation for this class was generated from the following file:

• PndSdsDigiPixel.h
