A state with arbitrary dimension defined in a DetPlane. More...

#include <StateOnPlane.h>

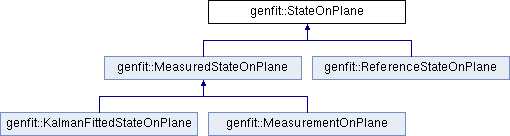

Inheritance diagram for genfit::StateOnPlane:

Public Member Functions
	StateOnPlane (const AbsTrackRep *rep=nullptr)

	StateOnPlane (const TVectorD &state, const SharedPlanePtr &plane, const AbsTrackRep *rep)
	state is defined by the TrackReps parameterization More...

	StateOnPlane (const TVectorD &state, const SharedPlanePtr &plane, const AbsTrackRep *rep, const TVectorD &auxInfo)

StateOnPlane &	operator= (StateOnPlane other)

void	swap (StateOnPlane &other)

virtual	~StateOnPlane ()

const TVectorD &	getState () const

TVectorD &	getState ()

const TVectorD &	getAuxInfo () const

TVectorD &	getAuxInfo ()

const SharedPlanePtr &	getPlane () const

const AbsTrackRep *	getRep () const

void	setState (const TVectorD &state)

void	setPlane (const SharedPlanePtr &plane)

void	setStatePlane (const TVectorD &state, const SharedPlanePtr &plane)

void	setAuxInfo (const TVectorD &auxInfo)

void	setRep (const AbsTrackRep *rep)

double	extrapolateToPlane (const SharedPlanePtr &plane, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToLine (const TVector3 &linePoint, const TVector3 &lineDirection, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToPoint (const TVector3 &point, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToPoint (const TVector3 &point, const TMatrixDSym &G, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToCylinder (double radius, const TVector3 &linePoint=TVector3(0., 0., 0.), const TVector3 &lineDirection=TVector3(0., 0., 1.), bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToSphere (double radius, const TVector3 &point=TVector3(0., 0., 0.), bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateBy (double step, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double	extrapolateToMeasurement (const AbsMeasurement *measurement, bool stopAtBoundary=false, bool calcJacobianNoise=false)

TVector3	getPos () const

TVector3	getMom () const

TVector3	getDir () const

void	getPosMom (TVector3 &pos, TVector3 &mom) const

void	getPosDir (TVector3 &pos, TVector3 &dir) const

TVectorD	get6DState () const

double	getMomMag () const

int	getPDG () const

double	getCharge () const

double	getQop () const

double	getMass () const

double	getTime () const

void	setPosMom (const TVector3 &pos, const TVector3 &mom)

void	setPosMom (const TVectorD &state6)

void	setChargeSign (double charge)

void	setQop (double qop)

void	setTime (double time)

virtual void	Print (Option_t *option="") const

Protected Attributes
TVectorD	state_

TVectorD	auxInfo_

SharedPlanePtr	sharedPlane_

Detailed Description

A state with arbitrary dimension defined in a DetPlane.

The dimension and meaning of the state_ vector are defined by the track parameterization of the #rep_. sharedPlane_ is a shared_pointer, the ownership over that plane is shared between all StateOnPlane objects defined in that plane. The definition of the state is bound to the TrackRep #rep_. Therefore, the StateOnPlane contains a pointer to a AbsTrackRep. It will provide functionality to extrapolate it and translate the state it into cartesian coordinates. Shortcuts to all functions of the AbsTrackRep which use this StateOnPlane are also provided here.

Definition at line 56 of file StateOnPlane.h.

Constructor & Destructor Documentation

◆ StateOnPlane() [1/3]

genfit::StateOnPlane::StateOnPlane ( const AbsTrackRep * rep = nullptr )

inline

Definition at line 168 of file StateOnPlane.h.

References genfit::AbsTrackRep::getDim(), and state_.

                                                         : state_(0), auxInfo_(0), sharedPlane_(), rep_(rep)
 {
   if (rep != nullptr) {
     state_.ResizeTo(rep->getDim());
   }
 }

◆ StateOnPlane() [2/3]

genfit::StateOnPlane::StateOnPlane	(	const TVectorD &	state,
		const SharedPlanePtr &	plane,
		const AbsTrackRep *	rep
	)

inline

state is defined by the TrackReps parameterization

Definition at line 175 of file StateOnPlane.h.

References sharedPlane_.

                                                                                                             : state_(state), auxInfo_(0), sharedPlane_(plane), rep_(rep)
 {
   assert(rep != nullptr);
   assert(sharedPlane_.get() != nullptr);
 }

◆ StateOnPlane() [3/3]

genfit::StateOnPlane::StateOnPlane	(	const TVectorD &	state,
		const SharedPlanePtr &	plane,
		const AbsTrackRep *	rep,
		const TVectorD &	auxInfo
	)

inline

Definition at line 181 of file StateOnPlane.h.

References sharedPlane_.

   : state_(state), auxInfo_(auxInfo), sharedPlane_(plane), rep_(rep)
 {
   assert(rep != nullptr);
   assert(sharedPlane_.get() != nullptr);
 }

◆ ~StateOnPlane()

virtual genfit::StateOnPlane::~StateOnPlane ( )

inlinevirtual

Definition at line 67 of file StateOnPlane.h.

67 {}

Member Function Documentation

◆ extrapolateBy()

double genfit::StateOnPlane::extrapolateBy	(	double	step,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 124 of file StateOnPlane.h.

References genfit::AbsTrackRep::extrapolateBy().

124 { return rep_->extrapolateBy(*this, step, stopAtBoundary, calcJacobianNoise); }

genfit::AbsTrackRep::extrapolateBy

virtual double extrapolateBy(StateOnPlane &state, double step, bool stopAtBoundary=false, bool calcJacobianNoise=false) const =0

Extrapolates the state by step (cm) and returns the extrapolation length and, via reference...

◆ extrapolateToCylinder()

double genfit::StateOnPlane::extrapolateToCylinder	(	double	radius,
		const TVector3 &	linePoint = `TVector3(0., 0., 0.)`,
		const TVector3 &	lineDirection = `TVector3(0., 0., 1.)`,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 115 of file StateOnPlane.h.

References genfit::AbsTrackRep::extrapolateToCylinder().

   {
     return rep_->extrapolateToCylinder(*this, radius, linePoint, lineDirection, stopAtBoundary, calcJacobianNoise);
   }

◆ extrapolateToLine()

double genfit::StateOnPlane::extrapolateToLine	(	const TVector3 &	linePoint,
		const TVector3 &	lineDirection,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 101 of file StateOnPlane.h.

References genfit::AbsTrackRep::extrapolateToLine().

   {
     return rep_->extrapolateToLine(*this, linePoint, lineDirection, stopAtBoundary, calcJacobianNoise);
   }

◆ extrapolateToMeasurement()

double genfit::StateOnPlane::extrapolateToMeasurement	(	const AbsMeasurement *	measurement,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 125 of file StateOnPlane.h.

References genfit::AbsTrackRep::extrapolateToMeasurement().

   {
     return rep_->extrapolateToMeasurement(*this, measurement, stopAtBoundary, calcJacobianNoise);
   }

◆ extrapolateToPlane()

double genfit::StateOnPlane::extrapolateToPlane	(	const SharedPlanePtr &	plane,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 97 of file StateOnPlane.h.

References genfit::AbsTrackRep::extrapolateToPlane().

   {
     return rep_->extrapolateToPlane(*this, plane, stopAtBoundary, calcJacobianNoise);
   }

◆ extrapolateToPoint() [1/2]

double genfit::StateOnPlane::extrapolateToPoint	(	const TVector3 &	point,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 105 of file StateOnPlane.h.

References genfit::AbsTrackRep::extrapolateToPoint().

   {
     return rep_->extrapolateToPoint(*this, point, stopAtBoundary, calcJacobianNoise);
   }

◆ extrapolateToPoint() [2/2]

double genfit::StateOnPlane::extrapolateToPoint	(	const TVector3 &	point,
		const TMatrixDSym &	G,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 109 of file StateOnPlane.h.

References genfit::AbsTrackRep::extrapolateToPoint().

   {
     return rep_->extrapolateToPoint(*this, point, G, stopAtBoundary, calcJacobianNoise);
   }

◆ extrapolateToSphere()

double genfit::StateOnPlane::extrapolateToSphere	(	double	radius,
		const TVector3 &	point = `TVector3(0., 0., 0.)`,
		bool	stopAtBoundary = `false`,
		bool	calcJacobianNoise = `false`
	)

inline

Definition at line 120 of file StateOnPlane.h.

References genfit::AbsTrackRep::extrapolateToSphere().

   {
     return rep_->extrapolateToSphere(*this, radius, point, stopAtBoundary, calcJacobianNoise);
   }

◆ get6DState()

TVectorD genfit::StateOnPlane::get6DState ( ) const

inline

Definition at line 135 of file StateOnPlane.h.

References genfit::AbsTrackRep::get6DState().

135 { return rep_->get6DState(*this); }

genfit::AbsTrackRep::get6DState

virtual TVectorD get6DState(const StateOnPlane &state) const

Get the 6D state vector (x, y, z, p_x, p_y, p_z).

◆ getAuxInfo() [1/2]

const TVectorD& genfit::StateOnPlane::getAuxInfo ( ) const

inline

Definition at line 71 of file StateOnPlane.h.

References auxInfo_.

71 { return auxInfo_; }

genfit::StateOnPlane::auxInfo_

TVectorD auxInfo_

Definition: StateOnPlane.h:153

◆ getAuxInfo() [2/2]

TVectorD& genfit::StateOnPlane::getAuxInfo ( )

inline

Definition at line 72 of file StateOnPlane.h.

References auxInfo_.

72 { return auxInfo_; }

genfit::StateOnPlane::auxInfo_

TVectorD auxInfo_

Definition: StateOnPlane.h:153

◆ getCharge()

double genfit::StateOnPlane::getCharge ( ) const

inline

Definition at line 138 of file StateOnPlane.h.

References genfit::AbsTrackRep::getCharge().

138 { return rep_->getCharge(*this); }

genfit::AbsTrackRep::getCharge

virtual double getCharge(const StateOnPlane &state) const =0

Get the (fitted) charge of a state. This is not always equal the pdg charge (e.g. if the charge sign ...

◆ getDir()

TVector3 genfit::StateOnPlane::getDir ( ) const

inline

Definition at line 132 of file StateOnPlane.h.

References genfit::AbsTrackRep::getDir().

132 { return rep_->getDir(*this); }

genfit::AbsTrackRep::getDir

TVector3 getDir(const StateOnPlane &state) const

Get the direction vector of a state.

Definition: AbsTrackRep.h:207

◆ getMass()

double genfit::StateOnPlane::getMass ( ) const

inline

Definition at line 140 of file StateOnPlane.h.

References genfit::AbsTrackRep::getMass().

140 { return rep_->getMass(*this); }

genfit::AbsTrackRep::getMass

double getMass(const StateOnPlane &state) const

Get tha particle mass in GeV/c^2.

◆ getMom()

TVector3 genfit::StateOnPlane::getMom ( ) const

inline

Definition at line 131 of file StateOnPlane.h.

References genfit::AbsTrackRep::getMom().

131 { return rep_->getMom(*this); }

genfit::AbsTrackRep::getMom

virtual TVector3 getMom(const StateOnPlane &state) const =0

Get the cartesian momentum vector of a state.

◆ getMomMag()

double genfit::StateOnPlane::getMomMag ( ) const

inline

Definition at line 136 of file StateOnPlane.h.

References genfit::AbsTrackRep::getMomMag().

136 { return rep_->getMomMag(*this); }

genfit::AbsTrackRep::getMomMag

virtual double getMomMag(const StateOnPlane &state) const =0

get the magnitude of the momentum in GeV.

◆ getPDG()

int genfit::StateOnPlane::getPDG ( ) const

inline

Definition at line 137 of file StateOnPlane.h.

References genfit::AbsTrackRep::getPDG().

137 { return rep_->getPDG(); }

genfit::AbsTrackRep::getPDG

int getPDG() const

Get the pdg code.

Definition: AbsTrackRep.h:237

◆ getPlane()

const SharedPlanePtr& genfit::StateOnPlane::getPlane ( ) const

inline

Definition at line 73 of file StateOnPlane.h.

References sharedPlane_.

73 { return sharedPlane_; }

genfit::StateOnPlane::sharedPlane_

SharedPlanePtr sharedPlane_

Definition: StateOnPlane.h:154

◆ getPos()

TVector3 genfit::StateOnPlane::getPos ( ) const

inline

Definition at line 130 of file StateOnPlane.h.

References genfit::AbsTrackRep::getPos().

130 { return rep_->getPos(*this); }

genfit::AbsTrackRep::getPos

virtual TVector3 getPos(const StateOnPlane &state) const =0

Get the cartesian position of a state.

◆ getPosDir()

void genfit::StateOnPlane::getPosDir	(	TVector3 &	pos,
		TVector3 &	dir
	)		const

inline

Definition at line 134 of file StateOnPlane.h.

References genfit::AbsTrackRep::getPosDir().

134 { rep_->getPosDir(*this, pos, dir); }

genfit::AbsTrackRep::getPosDir

void getPosDir(const StateOnPlane &state, TVector3 &pos, TVector3 &dir) const

Get cartesian position and direction vector of a state.

Definition: AbsTrackRep.h:213

◆ getPosMom()

void genfit::StateOnPlane::getPosMom	(	TVector3 &	pos,
		TVector3 &	mom
	)		const

inline

Definition at line 133 of file StateOnPlane.h.

References genfit::AbsTrackRep::getPosMom().

133 { rep_->getPosMom(*this, pos, mom); }

genfit::AbsTrackRep::getPosMom

virtual void getPosMom(const StateOnPlane &state, TVector3 &pos, TVector3 &mom) const =0

Get cartesian position and momentum vector of a state.

◆ getQop()

double genfit::StateOnPlane::getQop ( ) const

inline

Definition at line 139 of file StateOnPlane.h.

References genfit::AbsTrackRep::getQop().

139 { return rep_->getQop(*this); }

genfit::AbsTrackRep::getQop

virtual double getQop(const StateOnPlane &state) const =0

Get charge over momentum.

◆ getRep()

const AbsTrackRep* genfit::StateOnPlane::getRep ( ) const

inline

Definition at line 74 of file StateOnPlane.h.

Referenced by genfit::MeasuredStateOnPlane::get6DCov(), genfit::MeasuredStateOnPlane::get6DStateCov(), genfit::MeasuredStateOnPlane::getMomVar(), genfit::MeasuredStateOnPlane::getPosMomCov(), genfit::MeasuredStateOnPlane::setPosMomCov(), and genfit::MeasuredStateOnPlane::setPosMomErr().

74 { return rep_; }

◆ getState() [1/2]

const TVectorD& genfit::StateOnPlane::getState ( ) const

inline

Definition at line 69 of file StateOnPlane.h.

References state_.

Referenced by genfit::RKTrackRep::getQop(), and genfit::RKTrackRep::setQop().

69 { return state_; }

genfit::StateOnPlane::state_

TVectorD state_

Definition: StateOnPlane.h:152

◆ getState() [2/2]

TVectorD& genfit::StateOnPlane::getState ( )

inline

Definition at line 70 of file StateOnPlane.h.

References state_.

70 { return state_; }

genfit::StateOnPlane::state_

TVectorD state_

Definition: StateOnPlane.h:152

◆ getTime()

double genfit::StateOnPlane::getTime ( ) const

inline

Definition at line 141 of file StateOnPlane.h.

References genfit::AbsTrackRep::getTime().

141 { return rep_->getTime(*this); }

genfit::AbsTrackRep::getTime

virtual double getTime(const StateOnPlane &) const =0

Get the time corresponding to the StateOnPlane. Extrapolation.

◆ operator=()

StateOnPlane & genfit::StateOnPlane::operator= ( StateOnPlane other )

inline

Definition at line 188 of file StateOnPlane.h.

References swap().

 {
   swap(other);
   return *this;
 }

◆ Print()

virtual void genfit::StateOnPlane::Print ( Option_t * option = "" ) const

virtual

Reimplemented in genfit::ReferenceStateOnPlane, genfit::MeasuredStateOnPlane, and genfit::MeasurementOnPlane.

Referenced by setTime().

◆ setAuxInfo()

void genfit::StateOnPlane::setAuxInfo ( const TVectorD & auxInfo )

inline

Definition at line 88 of file StateOnPlane.h.

References auxInfo_.

   {
     if (auxInfo_.GetNrows() == 0)
       auxInfo_.ResizeTo(auxInfo);
     auxInfo_ = auxInfo;
   }

◆ setChargeSign()

void genfit::StateOnPlane::setChargeSign ( double charge )

inline

Definition at line 145 of file StateOnPlane.h.

References genfit::AbsTrackRep::setChargeSign().

145 { rep_->setChargeSign(*this, charge); }

genfit::AbsTrackRep::setChargeSign

virtual void setChargeSign(StateOnPlane &state, double charge) const =0

Set the sign of the charge according to charge.

◆ setPlane()

void genfit::StateOnPlane::setPlane ( const SharedPlanePtr & plane )

inline

Definition at line 82 of file StateOnPlane.h.

References sharedPlane_.

82 { sharedPlane_ = plane; }

genfit::StateOnPlane::sharedPlane_

SharedPlanePtr sharedPlane_

Definition: StateOnPlane.h:154

◆ setPosMom() [1/2]

void genfit::StateOnPlane::setPosMom	(	const TVector3 &	pos,
		const TVector3 &	mom
	)

inline

Definition at line 143 of file StateOnPlane.h.

References genfit::AbsTrackRep::setPosMom().

143 { rep_->setPosMom(*this, pos, mom); }

genfit::AbsTrackRep::setPosMom

virtual void setPosMom(StateOnPlane &state, const TVector3 &pos, const TVector3 &mom) const =0

Set position and momentum of state.

◆ setPosMom() [2/2]

void genfit::StateOnPlane::setPosMom ( const TVectorD & state6 )

inline

Definition at line 144 of file StateOnPlane.h.

References genfit::AbsTrackRep::setPosMom().

144 { rep_->setPosMom(*this, state6); }

genfit::AbsTrackRep::setPosMom

virtual void setPosMom(StateOnPlane &state, const TVector3 &pos, const TVector3 &mom) const =0

Set position and momentum of state.

◆ setQop()

void genfit::StateOnPlane::setQop ( double qop )

inline

Definition at line 146 of file StateOnPlane.h.

References genfit::AbsTrackRep::setQop().

146 { rep_->setQop(*this, qop); }

genfit::AbsTrackRep::setQop

virtual void setQop(StateOnPlane &state, double qop) const =0

Set charge/momentum.

◆ setRep()

void genfit::StateOnPlane::setRep ( const AbsTrackRep * rep )

inline

Definition at line 94 of file StateOnPlane.h.

94 { rep_ = rep; }

◆ setState()

void genfit::StateOnPlane::setState ( const TVectorD & state )

inline

Definition at line 76 of file StateOnPlane.h.

References state_.

Referenced by genfit::MeasuredStateOnPlane::setStateCov().

   {
     if (state_.GetNrows() == 0)
       state_.ResizeTo(state);
     state_ = state;
   }

◆ setStatePlane()

void genfit::StateOnPlane::setStatePlane	(	const TVectorD &	state,
		const SharedPlanePtr &	plane
	)

inline

Definition at line 83 of file StateOnPlane.h.

References sharedPlane_, and state_.

Referenced by genfit::MeasuredStateOnPlane::setStateCovPlane().

   {
     state_ = state;
     sharedPlane_ = plane;
   }

◆ setTime()

void genfit::StateOnPlane::setTime ( double time )

inline

Definition at line 147 of file StateOnPlane.h.

References Print(), and genfit::AbsTrackRep::setTime().

147 { rep_->setTime(*this, time); }

genfit::AbsTrackRep::setTime

virtual void setTime(StateOnPlane &state, double time) const =0

Set time at which the state was defined.

◆ swap()

void genfit::StateOnPlane::swap ( StateOnPlane & other )

inline

Definition at line 194 of file StateOnPlane.h.

References auxInfo_, sharedPlane_, and state_.

Referenced by operator=(), and genfit::MeasuredStateOnPlane::swap().

 {
   this->state_.ResizeTo(other.state_);
   std::swap(this->state_, other.state_);
   this->auxInfo_.ResizeTo(other.auxInfo_);
   std::swap(this->auxInfo_, other.auxInfo_);
   this->sharedPlane_.swap(other.sharedPlane_);
   std::swap(this->rep_, other.rep_);
 }

Member Data Documentation

◆ auxInfo_

TVectorD genfit::StateOnPlane::auxInfo_

protected

Definition at line 153 of file StateOnPlane.h.

Referenced by getAuxInfo(), setAuxInfo(), and swap().

◆ sharedPlane_

SharedPlanePtr genfit::StateOnPlane::sharedPlane_

protected

Definition at line 154 of file StateOnPlane.h.

Referenced by getPlane(), setPlane(), setStatePlane(), StateOnPlane(), and swap().

◆ state_

TVectorD genfit::StateOnPlane::state_

protected

Definition at line 152 of file StateOnPlane.h.

Referenced by getState(), setState(), setStatePlane(), StateOnPlane(), and swap().

The documentation for this class was generated from the following file:

StateOnPlane.h

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ StateOnPlane() [1/3]

◆ StateOnPlane() [2/3]

◆ StateOnPlane() [3/3]

◆ ~StateOnPlane()

Member Function Documentation

◆ extrapolateBy()

◆ extrapolateToCylinder()

◆ extrapolateToLine()

◆ extrapolateToMeasurement()

◆ extrapolateToPlane()

◆ extrapolateToPoint() [1/2]

◆ extrapolateToPoint() [2/2]

◆ extrapolateToSphere()

◆ get6DState()

◆ getAuxInfo() [1/2]

◆ getAuxInfo() [2/2]

◆ getCharge()

◆ getDir()

◆ getMass()

◆ getMom()

◆ getMomMag()

◆ getPDG()

◆ getPlane()

◆ getPos()

◆ getPosDir()

◆ getPosMom()

◆ getQop()

◆ getRep()

◆ getState() [1/2]

◆ getState() [2/2]

◆ getTime()

◆ operator=()

◆ Print()

◆ setAuxInfo()

◆ setChargeSign()

◆ setPlane()

◆ setPosMom() [1/2]

◆ setPosMom() [2/2]

◆ setQop()

◆ setRep()

◆ setState()

◆ setStatePlane()

◆ setTime()

◆ swap()

Member Data Documentation

◆ auxInfo_

◆ sharedPlane_

◆ state_
