BSEmcMCHitProducerTask Class Reference

Task to manage all Processes required to transfrom BSEmcMCPoints into BSEmcMCHits. More...

#include <BSEmcMCHitProducerTask.h>

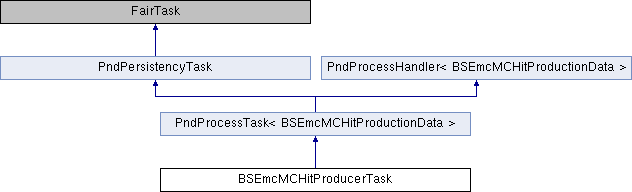

Inheritance diagram for BSEmcMCHitProducerTask:

Public Member Functions
	BSEmcMCHitProducerTask (const std::string &t_detectorName="Barrel", Bool_t t_storeHits=kTRUE)
virtual	~BSEmcMCHitProducerTask ()
void	SetPointBranchName (const std::string &t_hitbranchname)
void	SetHitBranchName (const std::string &t_hitbranchname)
Public Member Functions inherited from PndProcessTask< BSEmcMCHitProductionData >
	PndProcessTask (const std::string &t_detectorName)
virtual	~PndProcessTask ()
virtual InitStatus	Init () final
	Initialise this task. This must be called AFTER SetParContainers(), otherwise we will try to pass the parameters to the PndProcesses, while the parameter were not fetched yet. More...
virtual void	Exec (Option_t *t_opt=nullptr)
	Prepare Task for processing of PndProcess (e.g. reset data arrays), process the PndProcesses and do cleanup during the PostProcessing. More...
virtual void	Finish ()
	End the task, call TearDown for all PndProcesses. More...
Public Member Functions inherited from PndPersistencyTask
	PndPersistencyTask ()
	PndPersistencyTask (const char *name, Int_t iVerbose=1)
virtual	~PndPersistencyTask ()
void	SetPersistency (Bool_t val=kTRUE)
Bool_t	GetPersistency ()
Public Member Functions inherited from PndProcessHandler< BSEmcMCHitProductionData >
	PndProcessHandler (const std::string &t_detectorname="")
virtual	~PndProcessHandler ()
void	AddProcess (PndProcess< BSEmcMCHitProductionData > *)
	Add a PndProcess of appropriate type to the list of PndProcesses to be managed. More...
void	CallProcesses ()
	Call for all PndProcesses the PreProcess/Process/PosProcess functions. More...
void	SetupProcesses ()
	Call for each PndProcess the SetData and SetupParameter. More...
const std::vector< PndProcess< BSEmcMCHitProductionData > *> &	GetProcesses ()
const BSEmcMCHitProductionData *	GetCopyOfData () const
BSEmcMCHitProductionData *	GetPtrToData ()
PndParameterRegister *	GetParameterRegister ()
const PndParameterRegister *	GetParameterRegister () const
const std::string &	GetDetectorName () const

Protected Member Functions
virtual void	PreProcessing (Option_t *)
	Do some task preparation before PndProcesses are run once per event. More...
virtual void	PostProcessing (Option_t *)
	Do some task post clean up after PndProcesses are run once per event. More...
virtual void	SetupDataArrays ()
	Define which data containers need to be fetched from the FairRootManager, pass the data container addresses into a simple struct to distribute the addresses to the PndProcesses so they can read and write the data to them. Needs to be implemented in the derived PndProcessTask, such as the BSEmcClusteringTask. More...
Protected Member Functions inherited from PndProcessTask< BSEmcMCHitProductionData >
void	SetParContainers () final
	Fetch the FairRuntimeDb and populate the PndParameterRegister with all requested parameter. Has to be called before Init() More...
Protected Member Functions inherited from PndProcessHandler< BSEmcMCHitProductionData >
virtual void	SetupProcess (PndProcess< BSEmcMCHitProductionData > *t_process)

Additional Inherited Members
Protected Attributes inherited from PndProcessHandler< BSEmcMCHitProductionData >
std::vector< PndProcess< BSEmcMCHitProductionData > *>	fProcesses
std::unique_ptr< BSEmcMCHitProductionData >	fData
std::unique_ptr< PndParameterRegister >	fParameterRegister
std::string	fDetectorName

Detailed Description

Task to manage all Processes required to transfrom BSEmcMCPoints into BSEmcMCHits.

Author

Ben Salisbury salis.nosp@m.bury.nosp@m.@hisk.nosp@m.p.un.nosp@m.i-bon.nosp@m.n.de, HISKP Bonn

Date

2021-01

Definition at line 21 of file BSEmcMCHitProducerTask.h.

Constructor & Destructor Documentation

BSEmcMCHitProducerTask()

BSEmcMCHitProducerTask::BSEmcMCHitProducerTask	(	const std::string &	t_detectorName = "Barrel",
		Bool_t	t_storeHits = kTRUE
	)

~BSEmcMCHitProducerTask()

virtual BSEmcMCHitProducerTask::~BSEmcMCHitProducerTask ( )

virtual

Member Function Documentation

PostProcessing()

virtual void BSEmcMCHitProducerTask::PostProcessing ( Option_t *  )

protectedvirtual

Do some task post clean up after PndProcesses are run once per event.

Reimplemented from PndProcessTask< BSEmcMCHitProductionData >.

Referenced by SetHitBranchName().

PreProcessing()

virtual void BSEmcMCHitProducerTask::PreProcessing ( Option_t *  )

protectedvirtual

Do some task preparation before PndProcesses are run once per event.

Reimplemented from PndProcessTask< BSEmcMCHitProductionData >.

Referenced by SetHitBranchName().

SetHitBranchName()

void BSEmcMCHitProducerTask::SetHitBranchName ( const std::string &  t_hitbranchname )

inline

Definition at line 27 of file BSEmcMCHitProducerTask.h.

References PostProcessing(), PreProcessing(), and SetupDataArrays().

{ fHitBranchname = t_hitbranchname; }

SetPointBranchName()

void BSEmcMCHitProducerTask::SetPointBranchName ( const std::string &  t_hitbranchname )

inline

Definition at line 26 of file BSEmcMCHitProducerTask.h.

{ fPointBranchname = t_hitbranchname; }

SetupDataArrays()

virtual void BSEmcMCHitProducerTask::SetupDataArrays ( )

protectedvirtual

Define which data containers need to be fetched from the FairRootManager, pass the data container addresses into a simple struct to distribute the addresses to the PndProcesses so they can read and write the data to them. Needs to be implemented in the derived PndProcessTask, such as the BSEmcClusteringTask.

Implements PndProcessTask< BSEmcMCHitProductionData >.

Referenced by SetHitBranchName().

---

The documentation for this class was generated from the following file:

• BSEmcMCHitProducerTask.h
