PndProcessTask< DataStruct > Class Template Reference

Task based version of a PndProcessHandler. More...

#include <PndProcessTask.h>

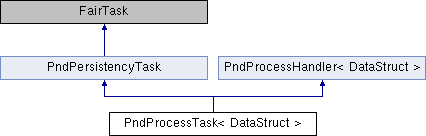

Inheritance diagram for PndProcessTask< DataStruct >:

Public Member Functions
	PndProcessTask (const std::string &t_detectorName)
virtual	~PndProcessTask ()
virtual InitStatus	Init () final
	Initialise this task. This must be called AFTER SetParContainers(), otherwise we will try to pass the parameters to the PndProcesses, while the parameter were not fetched yet. More...
virtual void	Exec (Option_t *t_opt=nullptr)
	Prepare Task for processing of PndProcess (e.g. reset data arrays), process the PndProcesses and do cleanup during the PostProcessing. More...
virtual void	Finish ()
	End the task, call TearDown for all PndProcesses. More...
Public Member Functions inherited from PndPersistencyTask
	PndPersistencyTask ()
	PndPersistencyTask (const char *name, Int_t iVerbose=1)
virtual	~PndPersistencyTask ()
void	SetPersistency (Bool_t val=kTRUE)
Bool_t	GetPersistency ()
Public Member Functions inherited from PndProcessHandler< DataStruct >
	PndProcessHandler (const std::string &t_detectorname="")
virtual	~PndProcessHandler ()
void	AddProcess (PndProcess< DataStruct > *)
	Add a PndProcess of appropriate type to the list of PndProcesses to be managed. More...
void	CallProcesses ()
	Call for all PndProcesses the PreProcess/Process/PosProcess functions. More...
void	SetupProcesses ()
	Call for each PndProcess the SetData and SetupParameter. More...
const std::vector< PndProcess< DataStruct > * > &	GetProcesses ()
const DataStruct *	GetCopyOfData () const
DataStruct *	GetPtrToData ()
PndParameterRegister *	GetParameterRegister ()
const PndParameterRegister *	GetParameterRegister () const
const std::string &	GetDetectorName () const

Protected Member Functions
void	SetParContainers () final
	Fetch the FairRuntimeDb and populate the PndParameterRegister with all requested parameter. Has to be called before Init() More...
virtual void	PreProcessing (Option_t *)
	Do some task preparation before PndProcesses are run once per event. More...
virtual void	PostProcessing (Option_t *)
	Do some task post clean up after PndProcesses are run once per event. More...
virtual void	SetupDataArrays ()=0
	Define which data containers need to be fetched from the FairRootManager, pass the data container addresses into a simple struct to distribute the addresses to the PndProcesses so they can read and write the data to them. Needs to be implemented in the derived PndProcessTask, such as the BSEmcClusteringTask. More...
Protected Member Functions inherited from PndProcessHandler< DataStruct >
virtual void	SetupProcess (PndProcess< DataStruct > *t_process)

Additional Inherited Members
Protected Attributes inherited from PndProcessHandler< DataStruct >
std::vector< PndProcess< DataStruct > * >	fProcesses {}
std::unique_ptr< DataStruct >	fData {new DataStruct}
std::unique_ptr< PndParameterRegister >	fParameterRegister {new PndParameterRegister}
std::string	fDetectorName {""}

Detailed Description

template<class DataStruct>
class PndProcessTask< DataStruct >

Task based version of a PndProcessHandler.

Author

Ben Salisbury salis.nosp@m.bury.nosp@m.@hisk.nosp@m.p.un.nosp@m.i-bon.nosp@m.n.de, HISKP Bonn

Date

2021-02

Template Parameters

DataStruct

Definition at line 28 of file PndProcessTask.h.

Constructor & Destructor Documentation

PndProcessTask()

template<class DataStruct >

PndProcessTask< DataStruct >::PndProcessTask

(

const std::string &

t_detectorName

)

Definition at line 83 of file PndProcessTask.h.

                                                                          : PndPersistencyTask(), PndProcessHandler<DataStruct>(t_detectorName)
{
}

~PndProcessTask()

template<class DataStruct >

PndProcessTask< DataStruct >::~PndProcessTask ( )

virtual

Definition at line 88 of file PndProcessTask.h.

{
}

Member Function Documentation

Exec()

template<class DataStruct >

void PndProcessTask< DataStruct >::Exec ( Option_t *  t_opt = nullptr )

virtual

Prepare Task for processing of PndProcess (e.g. reset data arrays), process the PndProcesses and do cleanup during the PostProcessing.

Definition at line 106 of file PndProcessTask.h.

{
  PreProcessing(t_option);
  this->CallProcesses();
  PostProcessing(t_option);
}

Finish()

template<class DataStruct >

void PndProcessTask< DataStruct >::Finish ( )

virtual

End the task, call TearDown for all PndProcesses.

Definition at line 114 of file PndProcessTask.h.

{
  LOG(INFO) << "PndProcessTask: Finish - " << this->fDetectorName;
  for (PndProcess<DataStruct> *process : this->fProcesses) {
    process->TearDown();
  }
}

Init()

template<class DataStruct >

InitStatus PndProcessTask< DataStruct >::Init ( )

finalvirtual

Initialise this task. This must be called AFTER SetParContainers(), otherwise we will try to pass the parameters to the PndProcesses, while the parameter were not fetched yet.

Returns

InitStatus

Definition at line 93 of file PndProcessTask.h.

{
  InitStatus result = kSUCCESS;
  try {
    SetupDataArrays();
    this->SetupProcesses();
  } catch (const std::exception &e) {
    result = kERROR;
  }
  return result;
}

PostProcessing()

template<class DataStruct >

void PndProcessTask< DataStruct >::PostProcessing ( Option_t *  )

protectedvirtual

Do some task post clean up after PndProcesses are run once per event.

Reimplemented in BSEmcClusteringTask, BSEmcPlotTask, BSEmcDigitizerTask, and BSEmcMCHitProducerTask.

Definition at line 129 of file PndProcessTask.h.

Referenced by PndProcessTask< BSEmcPlotData >::Exec().

{
  LOG(trace) << "PndProcessTask: PostProcessing - " << this->fDetectorName;
}

PreProcessing()

template<class DataStruct >

void PndProcessTask< DataStruct >::PreProcessing ( Option_t *  )

protectedvirtual

Do some task preparation before PndProcesses are run once per event.

Reimplemented in BSEmcClusteringTask, BSEmcPlotTask, BSEmcDigitizerTask, and BSEmcMCHitProducerTask.

Definition at line 123 of file PndProcessTask.h.

Referenced by PndProcessTask< BSEmcPlotData >::Exec().

{
  LOG(trace) << "PndProcessTask: PreProcessing - " << this->fDetectorName;
}

SetParContainers()

template<class DataStruct >

void PndProcessTask< DataStruct >::SetParContainers ( )

finalprotected

Fetch the FairRuntimeDb and populate the PndParameterRegister with all requested parameter. Has to be called before Init()

Definition at line 135 of file PndProcessTask.h.

{
  // Get run and runtime database
  FairRun *run = FairRun::Instance();
  if (run == nullptr) {
    Fatal("SetParContainers", "No analysis run");
  }
  FairRuntimeDb *db = run->GetRuntimeDb();
  if (db == nullptr) {
    Fatal("SetParContainers", "No runtime database");
  }

  LOG(DEBUG) << "PndProcessTask - " << this->fDetectorName << " SetParContainers()";
  for (const std::string &parameterName : this->fParameterRegister->GetRequestList()) {
    LOG(DEBUG) << parameterName;
    this->fParameterRegister->SetParameter(parameterName, db->getContainer(parameterName.c_str()));
  }
}

SetupDataArrays()

template<class DataStruct>

virtual void PndProcessTask< DataStruct >::SetupDataArrays ( )

protectedpure virtual

Define which data containers need to be fetched from the FairRootManager, pass the data container addresses into a simple struct to distribute the addresses to the PndProcesses so they can read and write the data to them. Needs to be implemented in the derived PndProcessTask, such as the BSEmcClusteringTask.

Implemented in BSEmcClusteringTask, BSEmcPlotTask, BSEmcDigitizerTask, and BSEmcMCHitProducerTask.

Referenced by PndProcessTask< BSEmcPlotData >::Init().

---

The documentation for this class was generated from the following file:

• PndProcessTask.h
