PndSdsPixelClusterFinder Class Reference

Base class for cluster finding algorithms. More...

#include <PndSdsPixelClusterFinder.h>

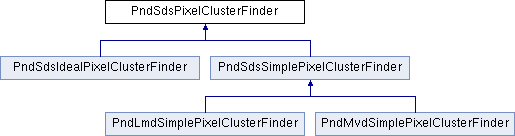

Inheritance diagram for PndSdsPixelClusterFinder:

Public Member Functions
	PndSdsPixelClusterFinder ()
	PndSdsPixelClusterFinder (PndSdsPixelClusterFinder &other)
PndSdsPixelClusterFinder &	operator= (PndSdsPixelClusterFinder &other)
virtual	~PndSdsPixelClusterFinder ()
virtual std::vector< std::vector< Int_t > >	GetClusters (std::vector< PndSdsDigiPixel > hits)=0
void	Print ()
void	Print (std::vector< PndSdsDigiPixel > hits)
void	PrintResult (std::vector< std::vector< Int_t >> clusters)
void	SetVerbose (Int_t level)
	ClassDef (PndSdsPixelClusterFinder, 2)

Public Attributes
std::vector< PndSdsDigiPixel >	fHits
Int_t	fVerbose
PndSdsChargeConversion *	fChargeConverter

Detailed Description

Base class for cluster finding algorithms.

Author

Tobias Stockmanns t.sto.nosp@m.ckma.nosp@m.nns@f.nosp@m.z-ju.nosp@m.elich.nosp@m..de As input it gets all digis to be analyzed and a set of parameters vector<Double_t> The output is a vector< vector <Int_t> > which contains the position of the hits in the TClonesArray containing the Digis

Definition at line 16 of file PndSdsPixelClusterFinder.h.

Constructor & Destructor Documentation

PndSdsPixelClusterFinder() [1/2]

PndSdsPixelClusterFinder::PndSdsPixelClusterFinder ( )

inline

Definition at line 18 of file PndSdsPixelClusterFinder.h.

: fHits(), fVerbose(0), fChargeConverter(nullptr){};

PndSdsPixelClusterFinder() [2/2]

PndSdsPixelClusterFinder::PndSdsPixelClusterFinder ( PndSdsPixelClusterFinder &  other )

inline

Definition at line 19 of file PndSdsPixelClusterFinder.h.

: fHits(other.fHits), fVerbose(other.fVerbose), fChargeConverter(other.fChargeConverter){};

~PndSdsPixelClusterFinder()

virtual PndSdsPixelClusterFinder::~PndSdsPixelClusterFinder ( )

inlinevirtual

Definition at line 27 of file PndSdsPixelClusterFinder.h.

References GetClusters(), Print(), and PrintResult().

{};

Member Function Documentation

ClassDef()

PndSdsPixelClusterFinder::ClassDef	(	PndSdsPixelClusterFinder	,
		2
	)

GetClusters()

virtual std::vector<std::vector<Int_t> > PndSdsPixelClusterFinder::GetClusters ( std::vector< PndSdsDigiPixel >  hits )

pure virtual

Implemented in PndSdsSimplePixelClusterFinder, and PndSdsIdealPixelClusterFinder.

Referenced by ~PndSdsPixelClusterFinder().

operator=()

PndSdsPixelClusterFinder& PndSdsPixelClusterFinder::operator= ( PndSdsPixelClusterFinder &  other )

inline

Definition at line 20 of file PndSdsPixelClusterFinder.h.

References fChargeConverter, fHits, and fVerbose.

  {
    fHits = other.fHits;
    fVerbose = other.fVerbose;
    fChargeConverter = other.fChargeConverter;
    return *this;
  };

Print() [1/2]

void PndSdsPixelClusterFinder::Print

(

)

Referenced by ~PndSdsPixelClusterFinder().

Print() [2/2]

void PndSdsPixelClusterFinder::Print

(

std::vector< PndSdsDigiPixel >

hits

)

PrintResult()

void PndSdsPixelClusterFinder::PrintResult

(

std::vector< std::vector< Int_t >>

clusters

)

Referenced by ~PndSdsPixelClusterFinder().

SetVerbose()

void PndSdsPixelClusterFinder::SetVerbose ( Int_t  level )

inline

Definition at line 32 of file PndSdsPixelClusterFinder.h.

References fHits, and fVerbose.

{ fVerbose = level; };

Member Data Documentation

fChargeConverter

PndSdsChargeConversion* PndSdsPixelClusterFinder::fChargeConverter

Definition at line 37 of file PndSdsPixelClusterFinder.h.

Referenced by operator=().

fHits

std::vector<PndSdsDigiPixel> PndSdsPixelClusterFinder::fHits

Definition at line 32 of file PndSdsPixelClusterFinder.h.

Referenced by operator=(), and SetVerbose().

fVerbose

Int_t PndSdsPixelClusterFinder::fVerbose

Definition at line 35 of file PndSdsPixelClusterFinder.h.

Referenced by operator=(), and SetVerbose().

---

The documentation for this class was generated from the following file:

• PndSdsPixelClusterFinder.h
