#include <PndSdsSimplePixelClusterFinder.h>

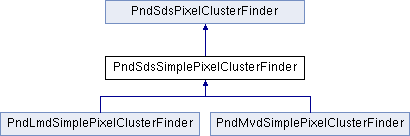

Inheritance diagram for PndSdsSimplePixelClusterFinder:

Public Member Functions
	PndSdsSimplePixelClusterFinder ()

virtual	~PndSdsSimplePixelClusterFinder ()

std::vector< std::vector< Int_t > >	GetClusters (std::vector< PndSdsDigiPixel > hits)

virtual void	SetMaxCols (Int_t col)

virtual void	SetMaxRows (Int_t row)

virtual void	SetRadius (Double_t rad)

Public Member Functions inherited from PndSdsPixelClusterFinder
	PndSdsPixelClusterFinder ()

	PndSdsPixelClusterFinder (PndSdsPixelClusterFinder &other)

PndSdsPixelClusterFinder &	operator= (PndSdsPixelClusterFinder &other)

virtual	~PndSdsPixelClusterFinder ()

void	Print ()

void	Print (std::vector< PndSdsDigiPixel > hits)

void	PrintResult (std::vector< std::vector< Int_t >> clusters)

void	SetVerbose (Int_t level)

	ClassDef (PndSdsPixelClusterFinder, 2)

Protected Attributes
Int_t	fcols

Int_t	frows

Double_t	fradius

Additional Inherited Members
Public Attributes inherited from PndSdsPixelClusterFinder
std::vector< PndSdsDigiPixel >	fHits

Int_t	fVerbose

PndSdsChargeConversion *	fChargeConverter

Detailed Description

PndSdsSimplePixelClusterFinder.h Simple cluster finder for pixel detectors.

It takes the first hit in the DigiArray and moves it into a new cluster. Then it looks through the remaining hits in the DigiArray if there are hits which are in the area around the first hit and moves them into the cluster. The radius is given by the first parameter. Then it takes the new hits in the cluster and looks if there are other hits which are in the range of these hits and moves them into the cluster, too. This process is repeated until no hits around the cluster are found The the first hit of the remaining DigiHits is taken to create a new hit and the cluster search process is started again.

params: Number of columns in a front-end Number of rows in a front-end Range as Int_t at which a pixel belongs to a cluster or not params are taken from parameter database

Definition at line 20 of file PndSdsSimplePixelClusterFinder.h.

Constructor & Destructor Documentation

◆ PndSdsSimplePixelClusterFinder()

PndSdsSimplePixelClusterFinder::PndSdsSimplePixelClusterFinder ( )

inline

Definition at line 22 of file PndSdsSimplePixelClusterFinder.h.

22 : PndSdsPixelClusterFinder(), fcols(0), frows(0), fradius(-1.0){};

PndSdsSimplePixelClusterFinder::fradius

Double_t fradius

Definition: PndSdsSimplePixelClusterFinder.h:40

PndSdsPixelClusterFinder::PndSdsPixelClusterFinder

PndSdsPixelClusterFinder()

Definition: PndSdsPixelClusterFinder.h:18

PndSdsSimplePixelClusterFinder::frows

Int_t frows

Definition: PndSdsSimplePixelClusterFinder.h:39

PndSdsSimplePixelClusterFinder::fcols

Int_t fcols

Definition: PndSdsSimplePixelClusterFinder.h:38

◆ ~PndSdsSimplePixelClusterFinder()

virtual PndSdsSimplePixelClusterFinder::~PndSdsSimplePixelClusterFinder ( )

inlinevirtual

Definition at line 27 of file PndSdsSimplePixelClusterFinder.h.

References GetClusters().

27 {};

Member Function Documentation

◆ GetClusters()

std::vector<std::vector<Int_t> > PndSdsSimplePixelClusterFinder::GetClusters ( std::vector< PndSdsDigiPixel > hits )

virtual

Main method which searches for the clusters. It returns a matrix of ints where a column corresponds to a cluster and an integer to a hit in the DigiArray

Implements PndSdsPixelClusterFinder.

Referenced by ~PndSdsSimplePixelClusterFinder().
