genfit::MeasuredStateOnPlane Class Reference

StateOnPlane with additional covariance matrix. More...

#include <MeasuredStateOnPlane.h>

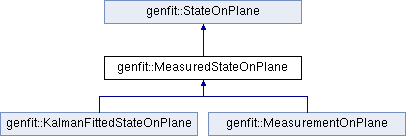

Inheritance diagram for genfit::MeasuredStateOnPlane:
genfit::StateOnPlane genfit::KalmanFittedStateOnPlane genfit::MeasurementOnPlane

Public Member Functions

 MeasuredStateOnPlane (const AbsTrackRep *rep=nullptr)

 MeasuredStateOnPlane (const TVectorD &state, const TMatrixDSym &cov, const genfit::SharedPlanePtr &plane, const AbsTrackRep *rep)

 MeasuredStateOnPlane (const TVectorD &state, const TMatrixDSym &cov, const genfit::SharedPlanePtr &plane, const AbsTrackRep *rep, const TVectorD &auxInfo)

 MeasuredStateOnPlane (const MeasuredStateOnPlane &o)

 MeasuredStateOnPlane (const StateOnPlane &state, const TMatrixDSym &cov)

MeasuredStateOnPlane & operator= (MeasuredStateOnPlane other)

void swap (MeasuredStateOnPlane &other)

virtual ~MeasuredStateOnPlane ()

const TMatrixDSym & getCov () const

TMatrixDSym & getCov ()

void blowUpCov (double blowUpFac, bool resetOffDiagonals=true, double maxVal=-1.)
 Blow up covariance matrix with blowUpFac. Per default, off diagonals are reset to 0 and the maximum values are limited to maxVal. More...

void setStateCov (const TVectorD &state, const TMatrixDSym &cov)

void setStateCovPlane (const TVectorD &state, const TMatrixDSym &cov, const SharedPlanePtr &plane)

void setCov (const TMatrixDSym &cov)

TMatrixDSym get6DCov () const

void getPosMomCov (TVector3 &pos, TVector3 &mom, TMatrixDSym &cov) const

void get6DStateCov (TVectorD &stateVec, TMatrixDSym &cov) const

double getMomVar () const

void setPosMomErr (const TVector3 &pos, const TVector3 &mom, const TVector3 &posErr, const TVector3 &momErr)

void setPosMomCov (const TVector3 &pos, const TVector3 &mom, const TMatrixDSym &cov6x6)

void setPosMomCov (const TVectorD &state6, const TMatrixDSym &cov6x6)

virtual void Print (Option_t *option="") const

- Public Member Functions inherited from genfit::StateOnPlane
 StateOnPlane (const AbsTrackRep *rep=nullptr)

 StateOnPlane (const TVectorD &state, const SharedPlanePtr &plane, const AbsTrackRep *rep)
 state is defined by the TrackReps parameterization More...

 StateOnPlane (const TVectorD &state, const SharedPlanePtr &plane, const AbsTrackRep *rep, const TVectorD &auxInfo)

StateOnPlane & operator= (StateOnPlane other)

void swap (StateOnPlane &other)

virtual ~StateOnPlane ()

const TVectorD & getState () const

TVectorD & getState ()

const TVectorD & getAuxInfo () const

TVectorD & getAuxInfo ()

const SharedPlanePtr & getPlane () const

const AbsTrackRep * getRep () const

void setState (const TVectorD &state)

void setPlane (const SharedPlanePtr &plane)

void setStatePlane (const TVectorD &state, const SharedPlanePtr &plane)

void setAuxInfo (const TVectorD &auxInfo)

void setRep (const AbsTrackRep *rep)

double extrapolateToPlane (const SharedPlanePtr &plane, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double extrapolateToLine (const TVector3 &linePoint, const TVector3 &lineDirection, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double extrapolateToPoint (const TVector3 &point, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double extrapolateToPoint (const TVector3 &point, const TMatrixDSym &G, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double extrapolateToCylinder (double radius, const TVector3 &linePoint=TVector3(0., 0., 0.), const TVector3 &lineDirection=TVector3(0., 0., 1.), bool stopAtBoundary=false, bool calcJacobianNoise=false)

double extrapolateToSphere (double radius, const TVector3 &point=TVector3(0., 0., 0.), bool stopAtBoundary=false, bool calcJacobianNoise=false)

double extrapolateBy (double step, bool stopAtBoundary=false, bool calcJacobianNoise=false)

double extrapolateToMeasurement (const AbsMeasurement *measurement, bool stopAtBoundary=false, bool calcJacobianNoise=false)

TVector3 getPos () const

TVector3 getMom () const

TVector3 getDir () const

void getPosMom (TVector3 &pos, TVector3 &mom) const

void getPosDir (TVector3 &pos, TVector3 &dir) const

TVectorD get6DState () const

double getMomMag () const

int getPDG () const

double getCharge () const

double getQop () const

double getMass () const

double getTime () const

void setPosMom (const TVector3 &pos, const TVector3 &mom)

void setPosMom (const TVectorD &state6)

void setChargeSign (double charge)

void setQop (double qop)

void setTime (double time)


Protected Attributes

TMatrixDSym cov_

- Protected Attributes inherited from genfit::StateOnPlane
TVectorD state_

TVectorD auxInfo_

SharedPlanePtr sharedPlane_


Detailed Description

StateOnPlane with additional covariance matrix.

Definition at line 37 of file MeasuredStateOnPlane.h.

Constructor & Destructor Documentation

◆ MeasuredStateOnPlane() [1/5]

genfit::MeasuredStateOnPlane::MeasuredStateOnPlane ( const AbsTrackRep *  rep = nullptr)
inline

Definition at line 105 of file MeasuredStateOnPlane.h.

References cov_, and genfit::AbsTrackRep::getDim().

105  : StateOnPlane(rep), cov_(0, 0)
106 {
107  if (rep != nullptr) {
108  cov_.ResizeTo(rep->getDim(), rep->getDim());
109  }
110 }
genfit::StateOnPlane::StateOnPlane
StateOnPlane(const AbsTrackRep *rep=nullptr)
Definition: StateOnPlane.h:156

◆ MeasuredStateOnPlane() [2/5]

genfit::MeasuredStateOnPlane::MeasuredStateOnPlane ( const TVectorD &  state,
const TMatrixDSym &  cov,
const genfit::SharedPlanePtr &  plane,
const AbsTrackRep *  rep
)
inline

Definition at line 112 of file MeasuredStateOnPlane.h.

113  : StateOnPlane(state, plane, rep), cov_(cov)
114 {
115  assert(rep != nullptr);
116  // assert(cov_.GetNcols() == (signed)rep->getDim());
117 }
genfit::StateOnPlane::StateOnPlane
StateOnPlane(const AbsTrackRep *rep=nullptr)
Definition: StateOnPlane.h:156

◆ MeasuredStateOnPlane() [3/5]

genfit::MeasuredStateOnPlane::MeasuredStateOnPlane ( const TVectorD &  state,
const TMatrixDSym &  cov,
const genfit::SharedPlanePtr &  plane,
const AbsTrackRep *  rep,
const TVectorD &  auxInfo
)
inline

Definition at line 119 of file MeasuredStateOnPlane.h.

120  : StateOnPlane(state, plane, rep, auxInfo), cov_(cov)
121 {
122  assert(rep != nullptr);
123  // assert(cov_.GetNcols() == (signed)rep->getDim());
124 }
genfit::StateOnPlane::StateOnPlane
StateOnPlane(const AbsTrackRep *rep=nullptr)
Definition: StateOnPlane.h:156

◆ MeasuredStateOnPlane() [4/5]

genfit::MeasuredStateOnPlane::MeasuredStateOnPlane ( const MeasuredStateOnPlane &  o)
inline

Definition at line 126 of file MeasuredStateOnPlane.h.

126 : StateOnPlane(o), cov_(o.cov_) {}
genfit::StateOnPlane::StateOnPlane
StateOnPlane(const AbsTrackRep *rep=nullptr)
Definition: StateOnPlane.h:156

◆ MeasuredStateOnPlane() [5/5]

genfit::MeasuredStateOnPlane::MeasuredStateOnPlane ( const StateOnPlane &  state,
const TMatrixDSym &  cov
)
inline

Definition at line 128 of file MeasuredStateOnPlane.h.

128  : StateOnPlane(state), cov_(cov)
129 {
130  // assert(cov_.GetNcols() == (signed)getRep()->getDim());
131 }
genfit::StateOnPlane::StateOnPlane
StateOnPlane(const AbsTrackRep *rep=nullptr)
Definition: StateOnPlane.h:156

◆ ~MeasuredStateOnPlane()

virtual genfit::MeasuredStateOnPlane::~MeasuredStateOnPlane ( )
inlinevirtual

Definition at line 49 of file MeasuredStateOnPlane.h.

49 {}

Member Function Documentation

◆ blowUpCov()

void genfit::MeasuredStateOnPlane::blowUpCov ( double  blowUpFac,
bool  resetOffDiagonals = true,
double  maxVal = -1.
)

Blow up covariance matrix with blowUpFac. Per default, off diagonals are reset to 0 and the maximum values are limited to maxVal.

Referenced by getCov().

◆ get6DCov()

TMatrixDSym genfit::MeasuredStateOnPlane::get6DCov ( ) const
inline

Definition at line 75 of file MeasuredStateOnPlane.h.

References genfit::AbsTrackRep::get6DCov(), and genfit::StateOnPlane::getRep().

75 { return getRep()->get6DCov(*this); };
genfit::StateOnPlane::getRep
const AbsTrackRep * getRep() const
Definition: StateOnPlane.h:62
genfit::AbsTrackRep::get6DCov
virtual TMatrixDSym get6DCov(const MeasuredStateOnPlane &state) const =0
Get the 6D covariance.

◆ get6DStateCov()

void genfit::MeasuredStateOnPlane::get6DStateCov ( TVectorD &  stateVec,
TMatrixDSym &  cov
) const
inline

Definition at line 77 of file MeasuredStateOnPlane.h.

References genfit::AbsTrackRep::get6DStateCov(), and genfit::StateOnPlane::getRep().

77 { getRep()->get6DStateCov(*this, stateVec, cov); }
genfit::StateOnPlane::getRep
const AbsTrackRep * getRep() const
Definition: StateOnPlane.h:62
genfit::AbsTrackRep::get6DStateCov
virtual void get6DStateCov(const MeasuredStateOnPlane &state, TVectorD &stateVec, TMatrixDSym &cov) const
Translates MeasuredStateOnPlane into 6D state vector (x, y, z, p_x, p_y, p_z) and 6x6 covariance...

◆ getCov() [1/2]

const TMatrixDSym& genfit::MeasuredStateOnPlane::getCov ( ) const
inline

Definition at line 51 of file MeasuredStateOnPlane.h.

References cov_.

51 { return cov_; }

◆ getCov() [2/2]

TMatrixDSym& genfit::MeasuredStateOnPlane::getCov ( )
inline

Definition at line 52 of file MeasuredStateOnPlane.h.

References blowUpCov(), and cov_.

52 { return cov_; }

◆ getMomVar()

double genfit::MeasuredStateOnPlane::getMomVar ( ) const
inline

Definition at line 78 of file MeasuredStateOnPlane.h.

References genfit::AbsTrackRep::getMomVar(), and genfit::StateOnPlane::getRep().

78 { return getRep()->getMomVar(*this); }
genfit::StateOnPlane::getRep
const AbsTrackRep * getRep() const
Definition: StateOnPlane.h:62
genfit::AbsTrackRep::getMomVar
virtual double getMomVar(const MeasuredStateOnPlane &state) const =0
get the variance of the absolute value of the momentum .

◆ getPosMomCov()

void genfit::MeasuredStateOnPlane::getPosMomCov ( TVector3 &  pos,
TVector3 &  mom,
TMatrixDSym &  cov
) const
inline

Definition at line 76 of file MeasuredStateOnPlane.h.

References genfit::AbsTrackRep::getPosMomCov(), and genfit::StateOnPlane::getRep().

76 { getRep()->getPosMomCov(*this, pos, mom, cov); }
genfit::AbsTrackRep::getPosMomCov
virtual void getPosMomCov(const MeasuredStateOnPlane &state, TVector3 &pos, TVector3 &mom, TMatrixDSym &cov) const =0
Translates MeasuredStateOnPlane into 3D position, momentum and 6x6 covariance.
genfit::StateOnPlane::getRep
const AbsTrackRep * getRep() const
Definition: StateOnPlane.h:62

◆ operator=()

MeasuredStateOnPlane & genfit::MeasuredStateOnPlane::operator= ( MeasuredStateOnPlane  other)
inline

Definition at line 133 of file MeasuredStateOnPlane.h.

References swap().

134 {
135  swap(other);
136  return *this;
137 }
genfit::MeasuredStateOnPlane::swap
void swap(MeasuredStateOnPlane &other)
Definition: MeasuredStateOnPlane.h:98

◆ Print()

virtual void genfit::MeasuredStateOnPlane::Print ( Option_t *  option = "") const
virtual

Reimplemented from genfit::StateOnPlane.

Reimplemented in genfit::MeasurementOnPlane.

Referenced by setPosMomCov().

◆ setCov()

void genfit::MeasuredStateOnPlane::setCov ( const TMatrixDSym &  cov)
inline

Definition at line 67 of file MeasuredStateOnPlane.h.

References cov_.

Referenced by setStateCov(), and setStateCovPlane().

68  {
69  if (cov_.GetNrows() == 0)
70  cov_.ResizeTo(cov);
71  cov_ = cov;
72  }

◆ setPosMomCov() [1/2]

void genfit::MeasuredStateOnPlane::setPosMomCov ( const TVector3 &  pos,
const TVector3 &  mom,
const TMatrixDSym &  cov6x6
)
inline

Definition at line 81 of file MeasuredStateOnPlane.h.

References genfit::StateOnPlane::getRep(), and genfit::AbsTrackRep::setPosMomCov().

81 { getRep()->setPosMomCov(*this, pos, mom, cov6x6); }
genfit::StateOnPlane::getRep
const AbsTrackRep * getRep() const
Definition: StateOnPlane.h:62
genfit::AbsTrackRep::setPosMomCov
virtual void setPosMomCov(MeasuredStateOnPlane &state, const TVector3 &pos, const TVector3 &mom, const TMatrixDSym &cov6x6) const =0
Set position, momentum and covariance of state.

◆ setPosMomCov() [2/2]

void genfit::MeasuredStateOnPlane::setPosMomCov ( const TVectorD &  state6,
const TMatrixDSym &  cov6x6
)
inline

Definition at line 82 of file MeasuredStateOnPlane.h.

References genfit::StateOnPlane::getRep(), Print(), and genfit::AbsTrackRep::setPosMomCov().

82 { getRep()->setPosMomCov(*this, state6, cov6x6); }
genfit::StateOnPlane::getRep
const AbsTrackRep * getRep() const
Definition: StateOnPlane.h:62
genfit::AbsTrackRep::setPosMomCov
virtual void setPosMomCov(MeasuredStateOnPlane &state, const TVector3 &pos, const TVector3 &mom, const TMatrixDSym &cov6x6) const =0
Set position, momentum and covariance of state.

◆ setPosMomErr()

void genfit::MeasuredStateOnPlane::setPosMomErr ( const TVector3 &  pos,
const TVector3 &  mom,
const TVector3 &  posErr,
const TVector3 &  momErr
)
inline

Definition at line 80 of file MeasuredStateOnPlane.h.

References genfit::StateOnPlane::getRep(), and genfit::AbsTrackRep::setPosMomErr().

80 { getRep()->setPosMomErr(*this, pos, mom, posErr, momErr); }
genfit::AbsTrackRep::setPosMomErr
virtual void setPosMomErr(MeasuredStateOnPlane &state, const TVector3 &pos, const TVector3 &mom, const TVector3 &posErr, const TVector3 &momErr) const =0
Set position and momentum and error of state.
genfit::StateOnPlane::getRep
const AbsTrackRep * getRep() const
Definition: StateOnPlane.h:62

◆ setStateCov()

void genfit::MeasuredStateOnPlane::setStateCov ( const TVectorD &  state,
const TMatrixDSym &  cov
)
inline

Definition at line 57 of file MeasuredStateOnPlane.h.

References setCov(), and genfit::StateOnPlane::setState().

58  {
59  setState(state);
60  setCov(cov);
61  }
genfit::StateOnPlane::setState
void setState(const TVectorD &state)
Definition: StateOnPlane.h:64
genfit::MeasuredStateOnPlane::setCov
void setCov(const TMatrixDSym &cov)
Definition: MeasuredStateOnPlane.h:67

◆ setStateCovPlane()

void genfit::MeasuredStateOnPlane::setStateCovPlane ( const TVectorD &  state,
const TMatrixDSym &  cov,
const SharedPlanePtr &  plane
)
inline

Definition at line 62 of file MeasuredStateOnPlane.h.

References setCov(), and genfit::StateOnPlane::setStatePlane().

63  {
64  setStatePlane(state, plane);
65  setCov(cov);
66  }
genfit::StateOnPlane::setStatePlane
void setStatePlane(const TVectorD &state, const SharedPlanePtr &plane)
Definition: StateOnPlane.h:71
genfit::MeasuredStateOnPlane::setCov
void setCov(const TMatrixDSym &cov)
Definition: MeasuredStateOnPlane.h:67

◆ swap()

void genfit::MeasuredStateOnPlane::swap ( MeasuredStateOnPlane &  other)
inline

Definition at line 98 of file MeasuredStateOnPlane.h.

References cov_, and genfit::StateOnPlane::swap().

Referenced by operator=(), and genfit::KalmanFittedStateOnPlane::swap().

99 {
100  StateOnPlane::swap(other);
101  this->cov_.ResizeTo(other.cov_);
102  std::swap(this->cov_, other.cov_);
103 }
genfit::StateOnPlane::swap
void swap(StateOnPlane &other)
Definition: StateOnPlane.h:182

Member Data Documentation

◆ cov_

TMatrixDSym genfit::MeasuredStateOnPlane::cov_
protected

Definition at line 87 of file MeasuredStateOnPlane.h.

Referenced by getCov(), genfit::MeasurementOnPlane::getWeightedCov(), MeasuredStateOnPlane(), setCov(), and swap().

The documentation for this class was generated from the following file:
