BSEmcMCDepositProducerTask Class Reference

Task to manage all Processes required to transfrom BSEmcMCPoints into BSEmcMCDeposits. More...

#include <BSEmcMCDepositProducerTask.h>

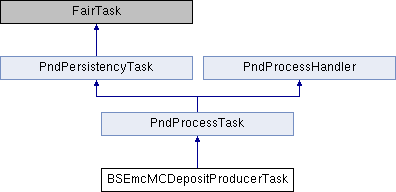

Inheritance diagram for BSEmcMCDepositProducerTask:

Public Member Functions
	BSEmcMCDepositProducerTask (const std::string &t_detectorName="Barrel", Bool_t t_storeDeposits=kTRUE)
virtual	~BSEmcMCDepositProducerTask ()
void	SetPointBranchName (const std::string &t_depositbranchname)
void	SetMCDepositBranchName (const std::string &t_depositbranchname)
Public Member Functions inherited from PndProcessTask
	PndProcessTask (const std::string &t_detectorName)
virtual	~PndProcessTask ()
virtual InitStatus	Init () final
	Initialise this task. This must be called AFTER SetParContainers(), otherwise we will try to pass the parameters to the PndProcesses, while the parameter were not fetched yet. More...
virtual void	Exec (Option_t *t_opt=nullptr)
	Prepare Task for processing of PndProcess (e.g. reset data arrays), process the PndProcesses and do cleanup during the PostProcessing. More...
virtual void	Finish ()
	End the task, call TearDown for all PndProcesses. More...
Public Member Functions inherited from PndPersistencyTask
	PndPersistencyTask ()
	PndPersistencyTask (const char *name, Int_t iVerbose=1)
virtual	~PndPersistencyTask ()
void	SetPersistency (Bool_t val=kTRUE)
Bool_t	GetPersistency ()
Public Member Functions inherited from PndProcessHandler
	PndProcessHandler (const std::string &t_detectorname="")
virtual	~PndProcessHandler ()
void	AddProcess (PndProcess *)
	Add a PndProcess of appropriate type to the list of PndProcesses to be managed. More...
void	CallProcesses ()
	Call for all PndProcesses the PreProcess/Process/PosProcess functions. More...
void	SetupProcesses ()
	Call for each PndProcess the SetupParameter. More...
const std::vector< PndProcess * > &	GetProcesses ()
PndParameterRegister *	GetParameterRegister ()
const PndParameterRegister *	GetParameterRegister () const
const std::string &	GetDetectorName () const
virtual void	GetRequiredDataContainerInfo ()
virtual void	PassDataContainersToProcesses ()

Protected Member Functions
virtual void	PreProcessing (Option_t *)
	Do some task preparation before PndProcesses are run once per event. More...
virtual void	PostProcessing (Option_t *)
	Do some task post clean up after PndProcesses are run once per event. More...
virtual void	SetupDataArrays ()
	Define which data containers need to be fetched from the FairRootManager, pass the data container addresses into a simple struct to distribute the addresses to the PndProcesses so they can read and write the data to them. Needs to be implemented in the derived PndProcessTask, such as the BSEmcClusteringTask. More...
Protected Member Functions inherited from PndProcessTask
void	SetParContainers () final
	Fetch the FairRuntimeDb and populate the PndParameterRegister with all requested parameter. Has to be called before Init() More...
template<class T >
Bool_t	DispatchRequest (const PndContainerRegister::PndContainerType_t &t_container, PndContainerRegister *t_register, const TString &t_defaultName)
TClonesArray *	GetInputArray (const TString &t_branchname, const TString &t_classtype)
TClonesArray *	GetOutputArray (const TString &t_branchname, const TString &t_classtype, const TString &t_foldername, Bool_t t_persistenxy)
template<class T >
Bool_t	HandledRequest (const PndContainerRegister::PndContainerType_t &t_container, PndContainerRegister *t_register, const TString &t_defaultName)
Protected Member Functions inherited from PndProcessHandler
virtual void	SetupProcess (PndProcess *t_process)

Additional Inherited Members
Protected Attributes inherited from PndProcessHandler
std::vector< PndProcess * >	fProcesses {}
std::unique_ptr< PndParameterRegister >	fParameterRegister {new PndParameterRegister}
std::unique_ptr< PndContainerRegister >	fContainerRegister {new PndContainerRegister}
std::string	fDetectorName {""}

Detailed Description

Task to manage all Processes required to transfrom BSEmcMCPoints into BSEmcMCDeposits.

Author

Ben Salisbury salis.nosp@m.bury.nosp@m.@hisk.nosp@m.p.un.nosp@m.i-bon.nosp@m.n.de, HISKP Bonn

Date

2021-01

Definition at line 24 of file BSEmcMCDepositProducerTask.h.

Constructor & Destructor Documentation

BSEmcMCDepositProducerTask()

BSEmcMCDepositProducerTask::BSEmcMCDepositProducerTask	(	const std::string &	t_detectorName = "Barrel",
		Bool_t	t_storeDeposits = kTRUE
	)

~BSEmcMCDepositProducerTask()

virtual BSEmcMCDepositProducerTask::~BSEmcMCDepositProducerTask ( )

virtual

Member Function Documentation

PostProcessing()

virtual void BSEmcMCDepositProducerTask::PostProcessing ( Option_t *  )

protectedvirtual

Do some task post clean up after PndProcesses are run once per event.

Reimplemented from PndProcessTask.

Referenced by SetMCDepositBranchName().

PreProcessing()

virtual void BSEmcMCDepositProducerTask::PreProcessing ( Option_t *  )

protectedvirtual

Do some task preparation before PndProcesses are run once per event.

Reimplemented from PndProcessTask.

Referenced by SetMCDepositBranchName().

SetMCDepositBranchName()

void BSEmcMCDepositProducerTask::SetMCDepositBranchName ( const std::string &  t_depositbranchname )

inline

Definition at line 30 of file BSEmcMCDepositProducerTask.h.

References PostProcessing(), PreProcessing(), and SetupDataArrays().

{ fMCDepositBranchname = t_depositbranchname; }

SetPointBranchName()

void BSEmcMCDepositProducerTask::SetPointBranchName ( const std::string &  t_depositbranchname )

inline

Definition at line 29 of file BSEmcMCDepositProducerTask.h.

{ fPointBranchname = t_depositbranchname; }

SetupDataArrays()

virtual void BSEmcMCDepositProducerTask::SetupDataArrays ( )

protectedvirtual

Define which data containers need to be fetched from the FairRootManager, pass the data container addresses into a simple struct to distribute the addresses to the PndProcesses so they can read and write the data to them. Needs to be implemented in the derived PndProcessTask, such as the BSEmcClusteringTask.

Implements PndProcessTask.

Referenced by SetMCDepositBranchName().

---

The documentation for this class was generated from the following file:

• BSEmcMCDepositProducerTask.h
